Chevrolet
›
2014
›
Express 1500 LS, AWD
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communication System
›
Schematic Wiring Diagrams
›
Body Control SystemWiring Schematics
›
BCM Power, Ground and Serial Data
BCM Power, Ground and Serial Data

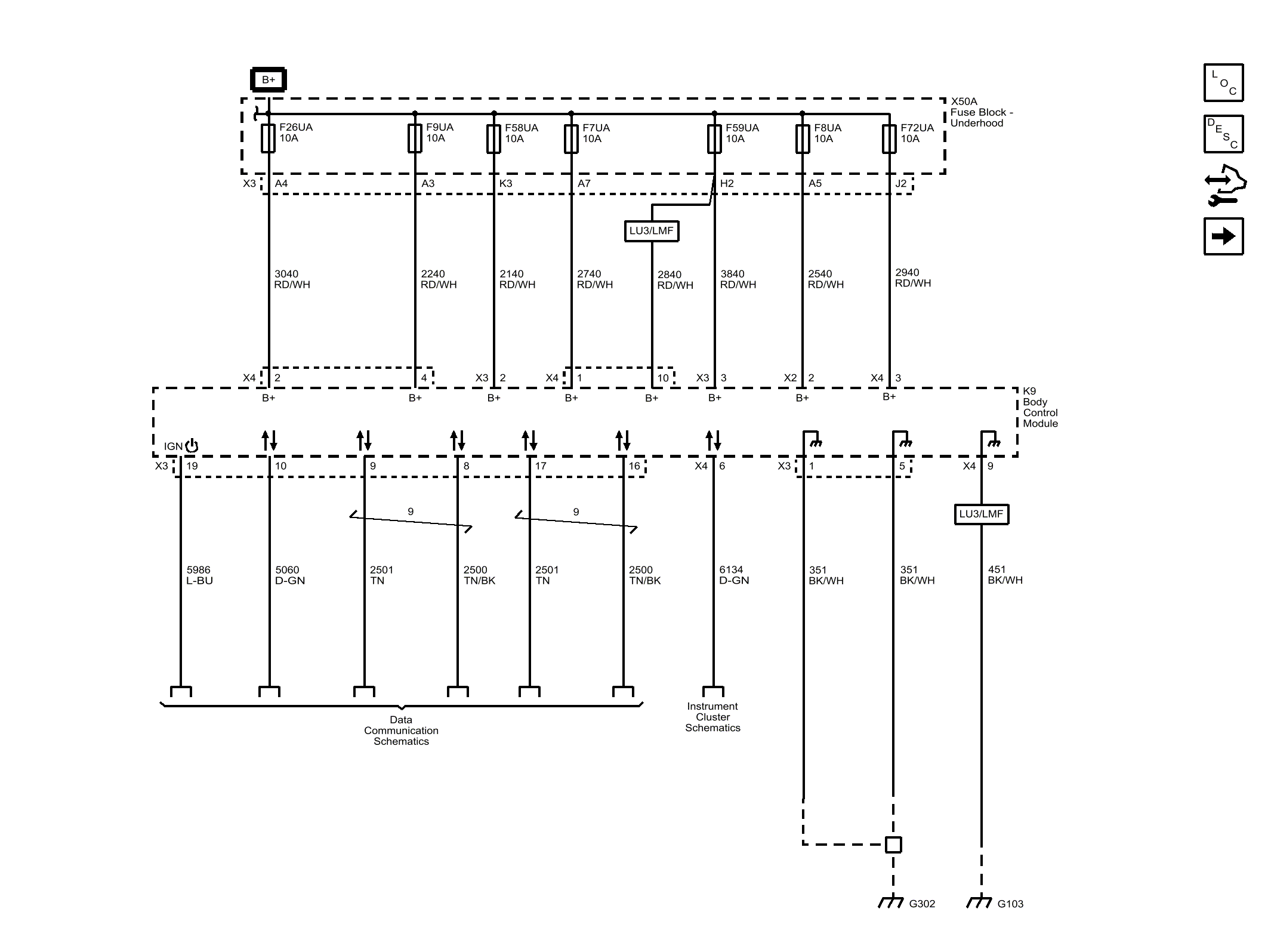

Fig 1: BCM Power, Ground and Serial Data Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
