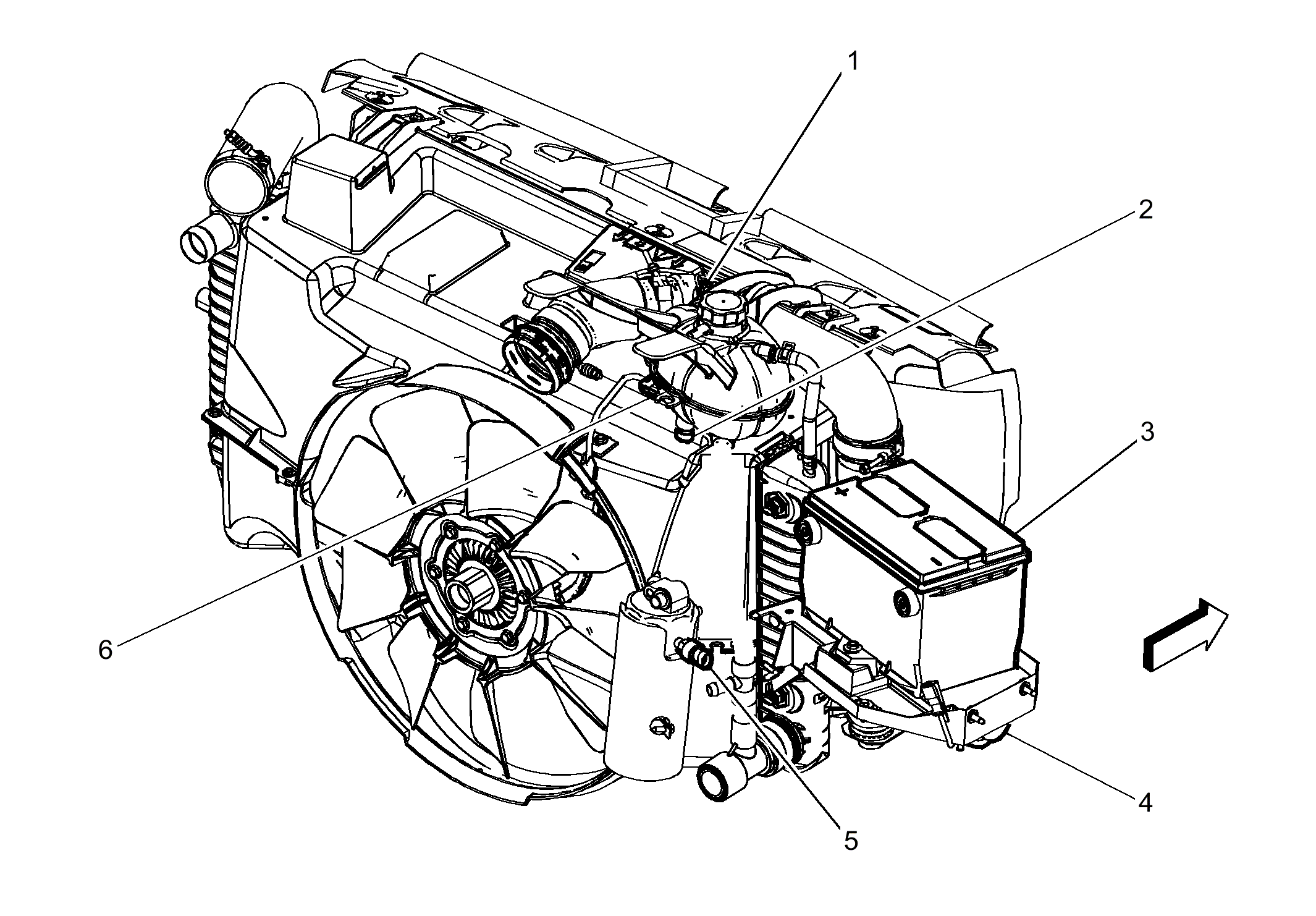

Front of Engine Compartment Components (LGH)
Front of Engine Compartment Components (LGH)
| Items |
| 1:
B193B Charge Air Cooler Outlet Temperature Sensor (LGH) |
| 2:
B33 Engine Coolant Level Switch (LGH) |
| 3:
C1 Battery |
| 4:
G34 Evaporative Emission System Leak Detection Pump |
| 5:
B1B A/C Low Side Pressure Switch (C60) |
| 6:
X142 (LGH) |
Courtesy of GENERAL MOTORS COMPANY
