Installation Procedure

    Fig 1: Power Steering Pump Remote Reservoir
    GM309294Courtesy of GENERAL MOTORS COMPANY
  1. Install the power steering pump remote reservoir (3) to the vehicle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the power steering pump remote reservoir (4) mounting nuts and tighten to 11 N.m (97 lb in).
    3. Fig 2: Power Steering Fluid Reservoir Inlet & Outlet Hoses At Power Brake Booster
    GM407982Courtesy of GENERAL MOTORS COMPANY
  3. Install the reservoir inlet hose (3) to the reservoir.

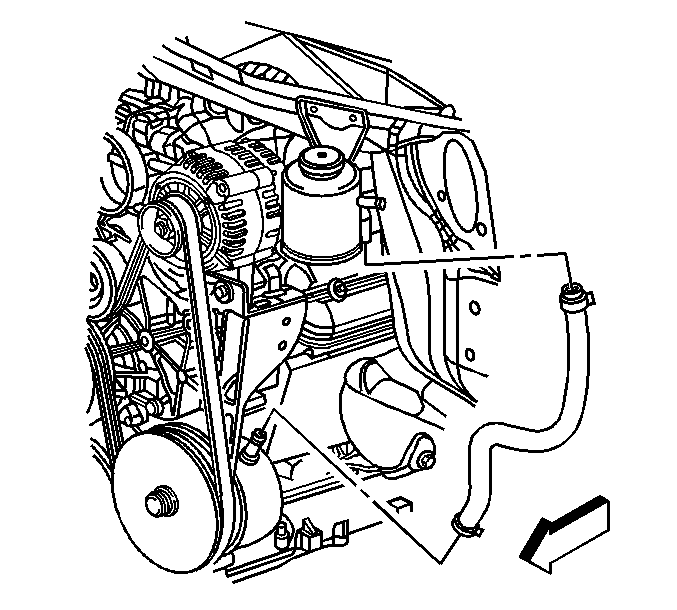

    4. Fig 3: View Of Remote Power Steering Fluid Reservoir Outlet Hose
    GM829013Courtesy of GENERAL MOTORS COMPANY
  4. Connect the reservoir outlet hose to the reservoir.
  5. Bleed the power steering system. Refer to Power Steering System Bleeding .
