Shift Lever Replacement

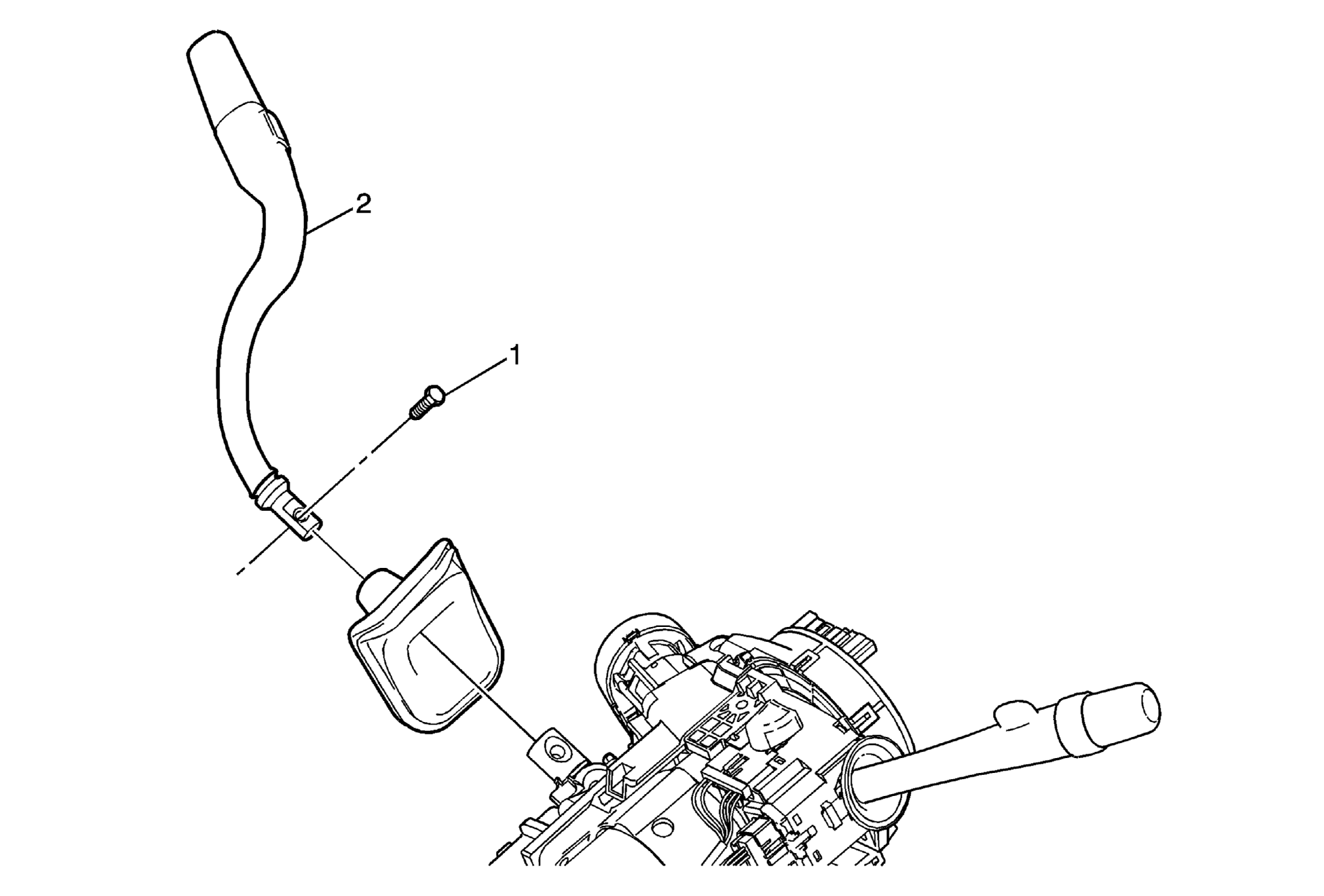

Fig 1: Identifying Shift Lever

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove the steering column trim covers. Refer to Steering Column Trim Cover Replacement .

Shift Lever Bolt ⁽¹⁾
Tighten
20 N.m (15 lb in)

Shift Lever
Procedure
Disconnect any electrical connectors as needed.
TIP: Transfer the shift lever boot as needed.

⁽¹⁾

Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Do not use paints, lubricants, or corrosion inhibitors on fasteners, or fastener joint surfaces, unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems. When using fasteners that are threaded directly into plastic, use extreme care not to strip the mating plastic part(s). Use hand tools only, and do not use any kind of impact or power tools. Fastener should be hand tightened, fully seated, and not stripped.
