Installation Procedure

Install the window assembly to the vehicle.

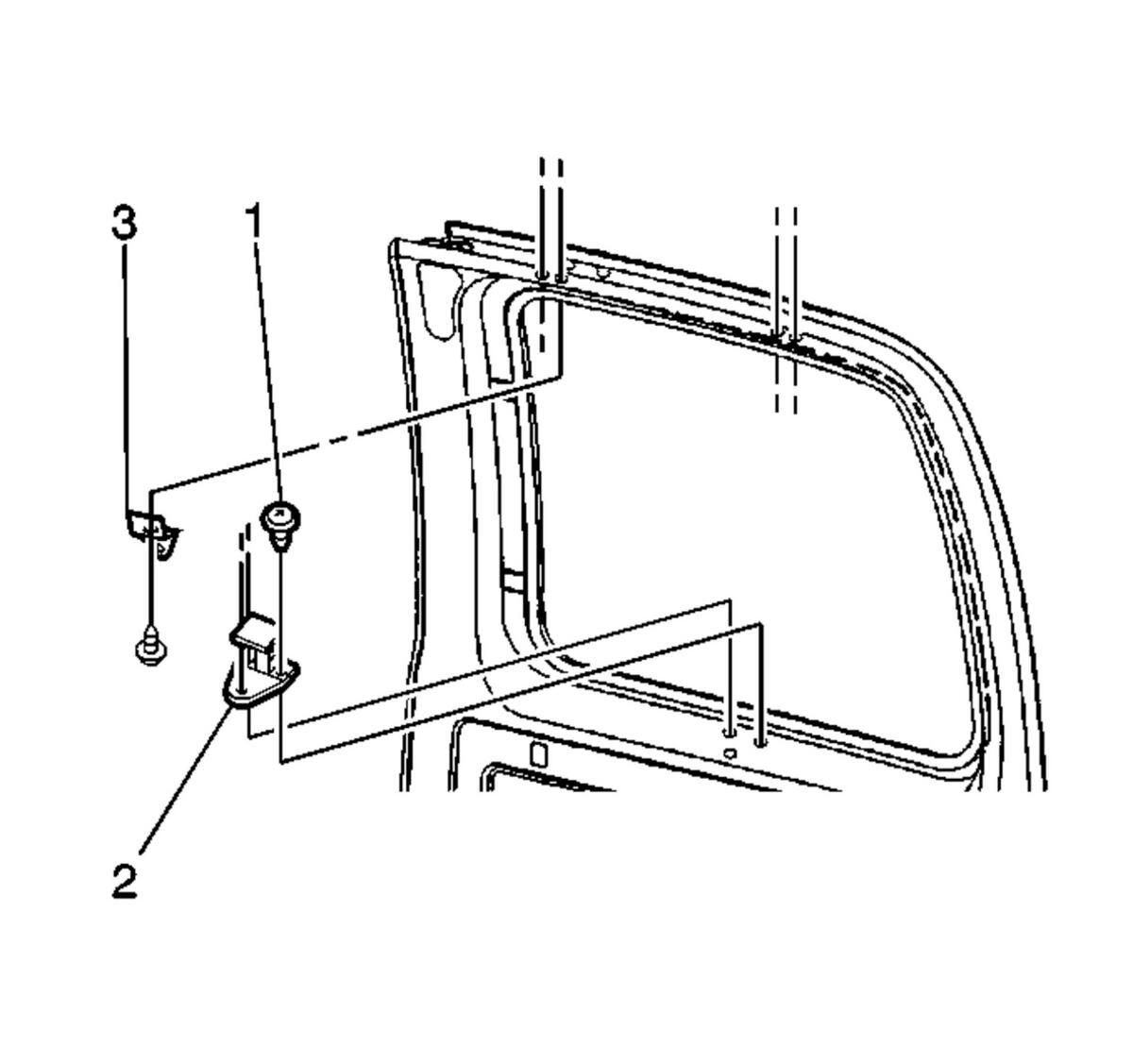

Fig 1: Hinged Rear Window

GM326818

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Install the screws that retain the hinge (3) to the door and tighten to 3 N.m (27 lb in).
Install the screws (1) that retain the latch to the door and tighten to 3 N.m (27 lb in).
Install the rear door trim panel.
