Fuse Block - Body Label

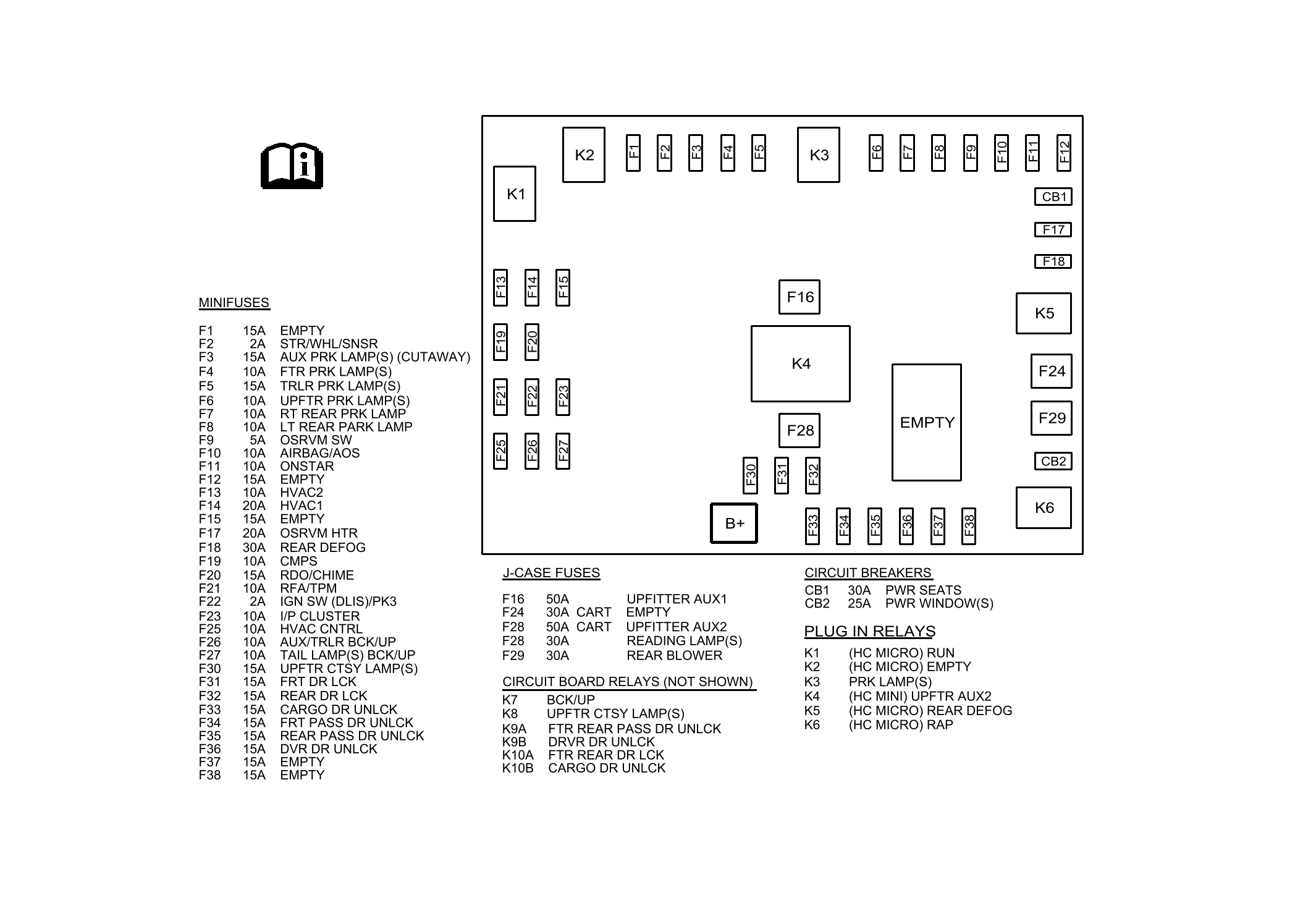

Fig 1: Fuse Block - Fuse And Relay Body Label
GM2832062Courtesy of GENERAL MOTORS COMPANY
