BCM Inputs and Outputs (2 of 4)

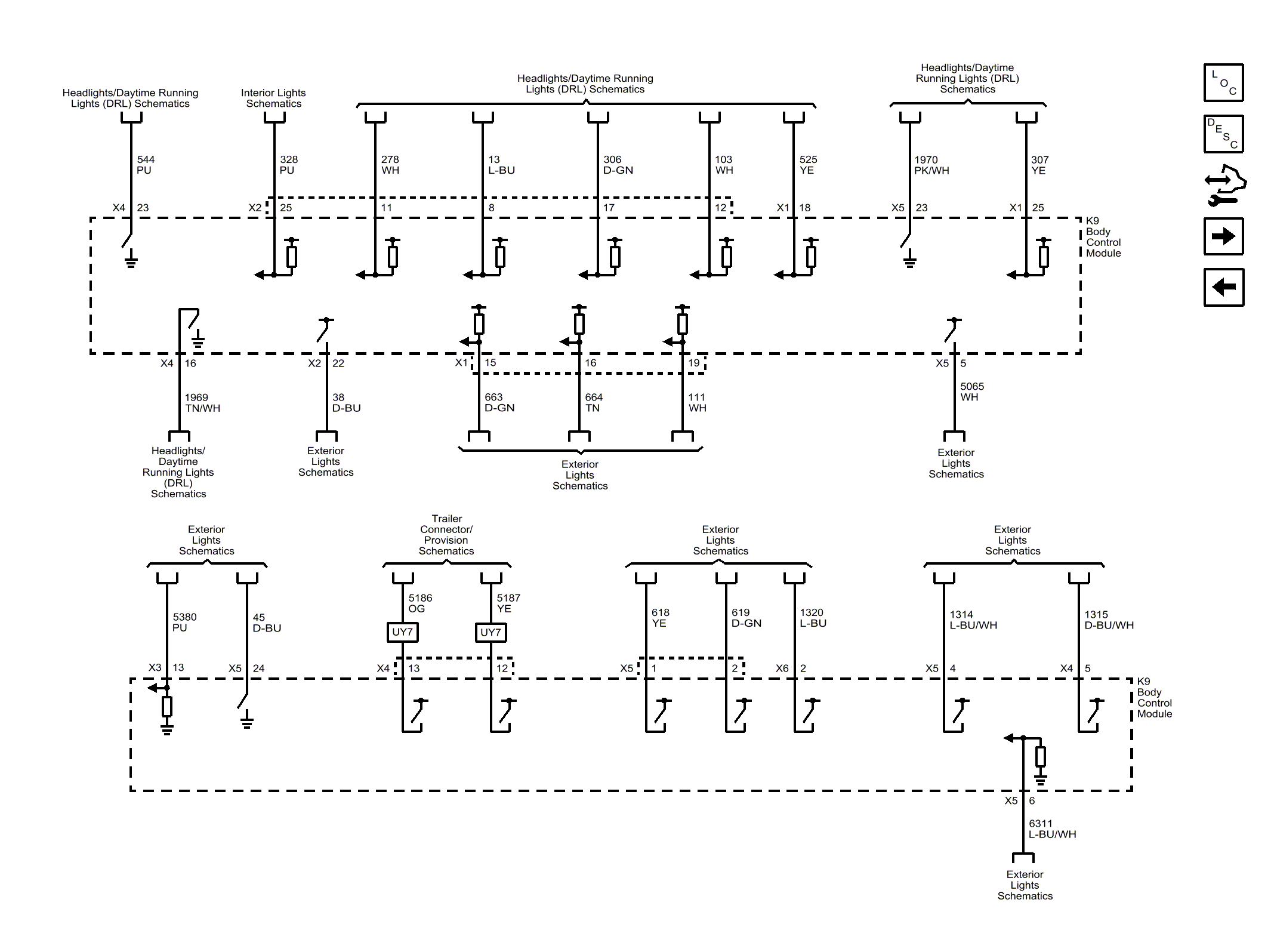

Fig 1: BCM Inputs and Outputs (2 of 4) Wiring Schematics
GM3395565Courtesy of GENERAL MOTORS COMPANY
