BCM Inputs and Outputs (3 of 4)

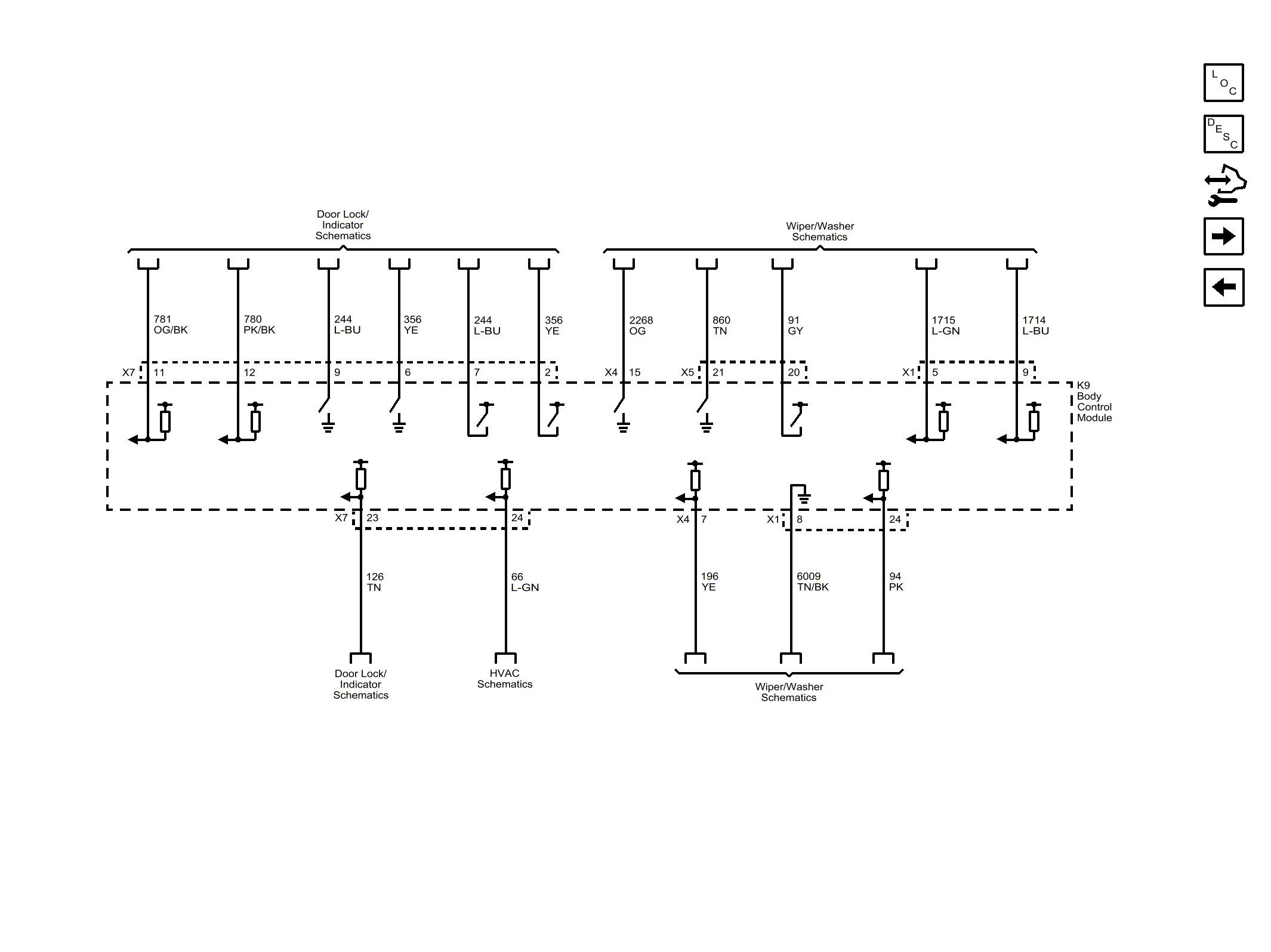

Fig 1: BCM Inputs and Outputs (3 of 4) Wiring Schematics
GM3395566Courtesy of GENERAL MOTORS COMPANY
