BCM Inputs and Outputs (4 of 4)

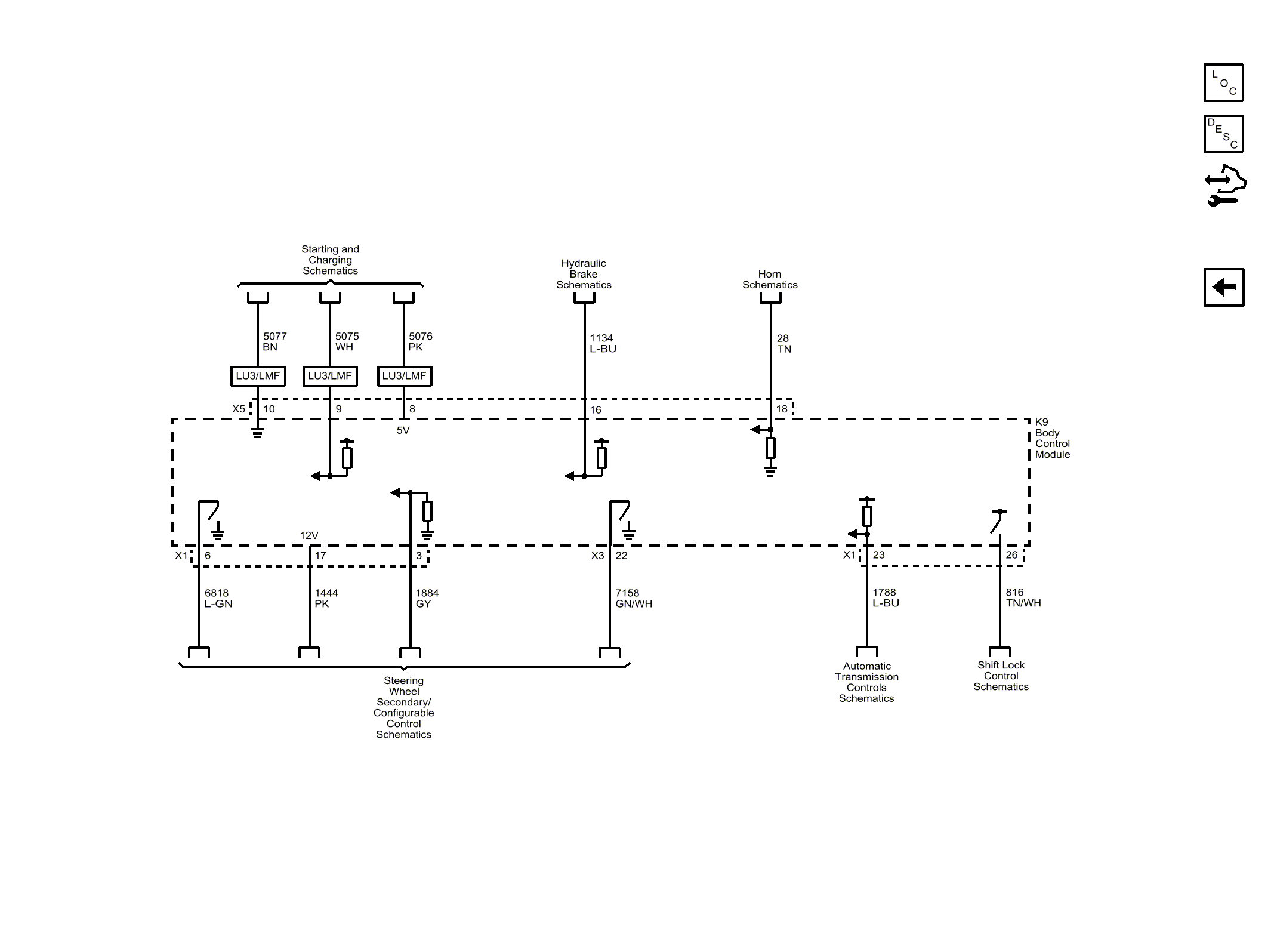

Fig 1: BCM Inputs and Outputs (4 of 4) Wiring Schematics
GM3395567Courtesy of GENERAL MOTORS COMPANY
