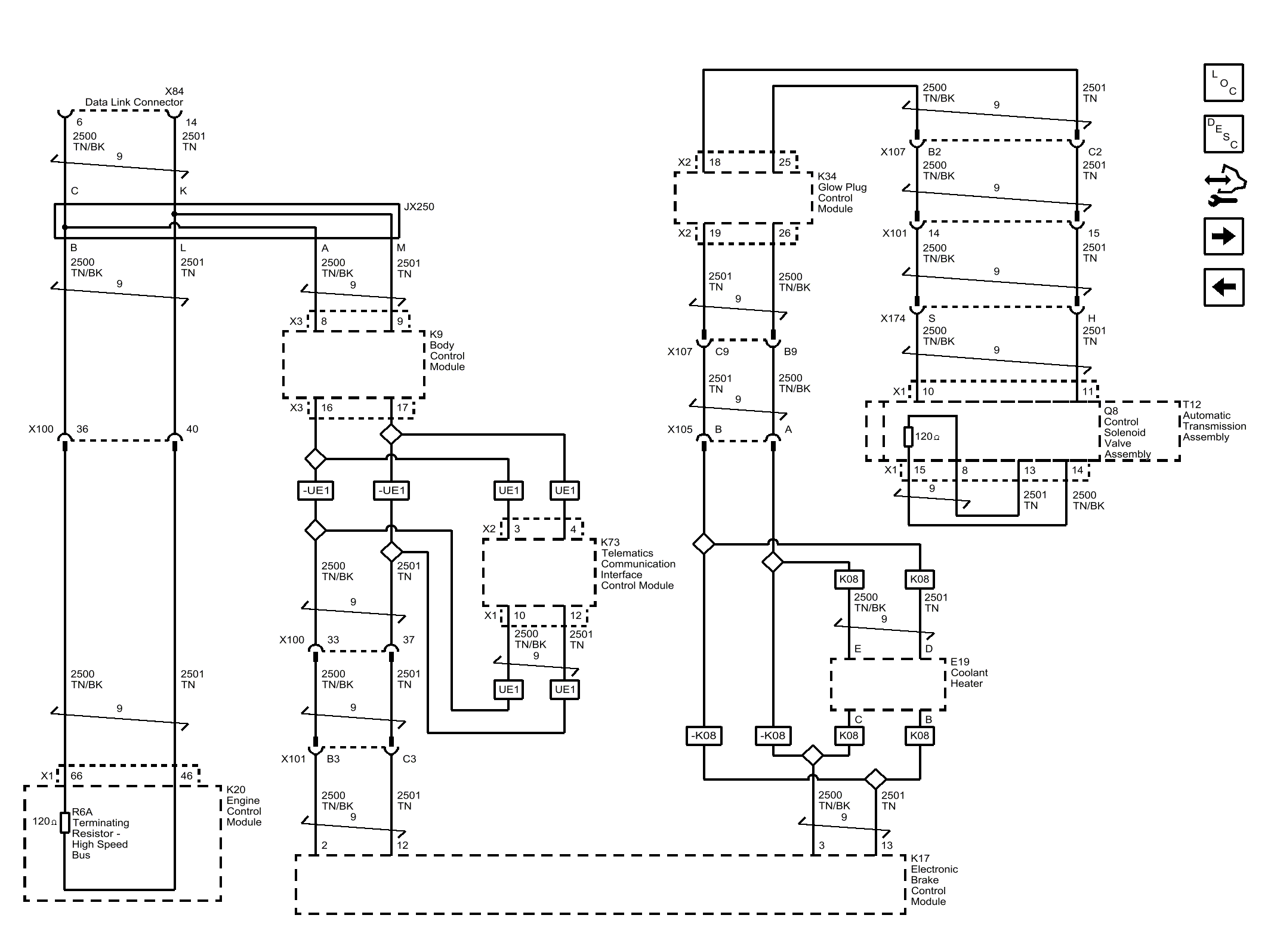

Home › Chevrolet › 2014 › Express 1500 LS, RWD › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Data Communication Wiring Schematics › High Speed GMLAN (Diesel)
