Rear Vision Camera (With UYS)(Object Detection System And Pedestrian Protection System)

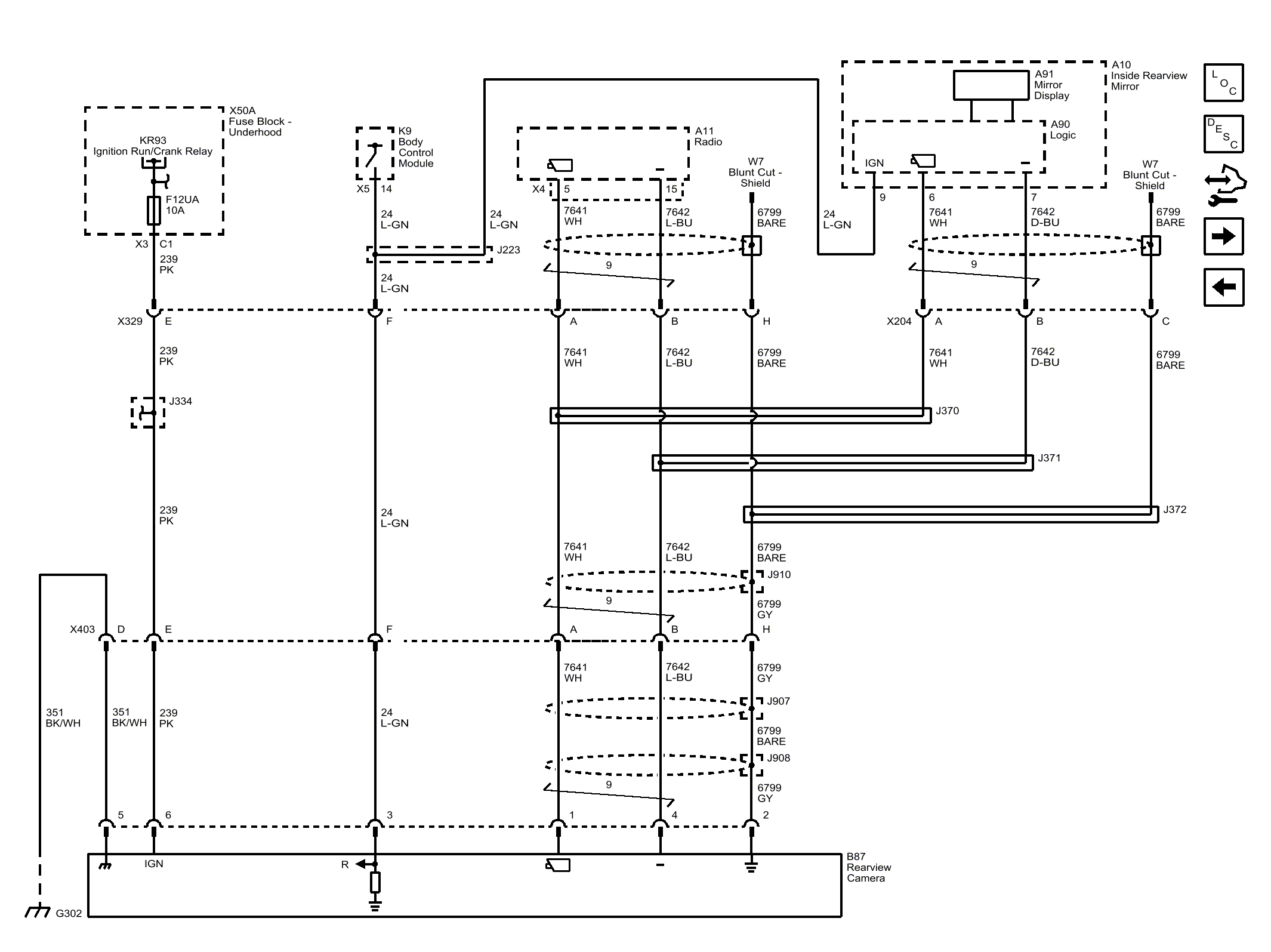

Fig 1: Rear Vision Camera (with UYS) Wiring Schematics
GM3395621Courtesy of GENERAL MOTORS COMPANY
