Rear Vision Camera (Without UYS)(Object Detection System And Pedestrian Protection System)

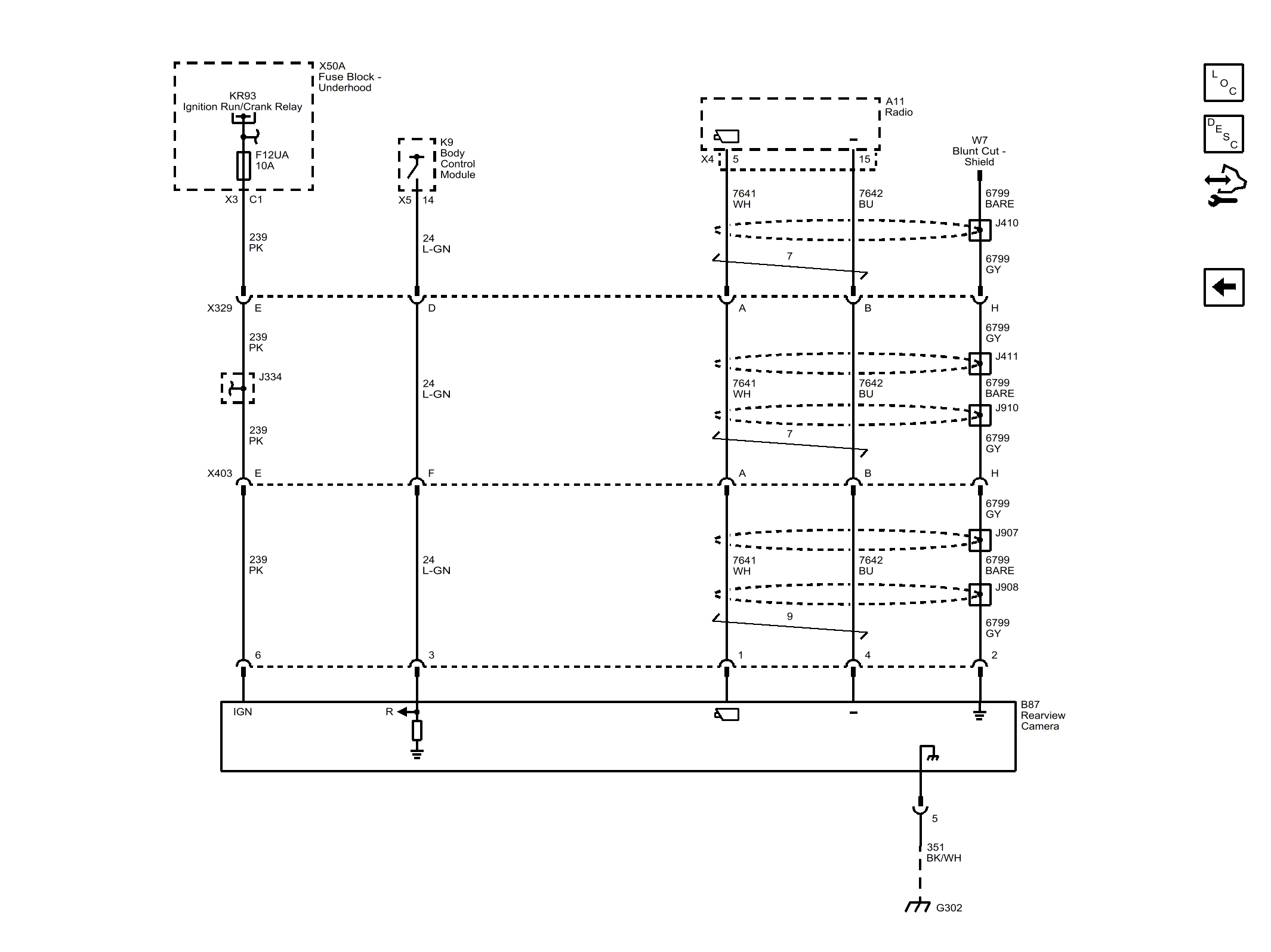

Fig 1: Rear Vision Camera (without UYS) Wiring Schematics
GM3395618Courtesy of GENERAL MOTORS COMPANY
