Engine Front Splash Shield Replacement
Engine Front Splash Shield Replacement

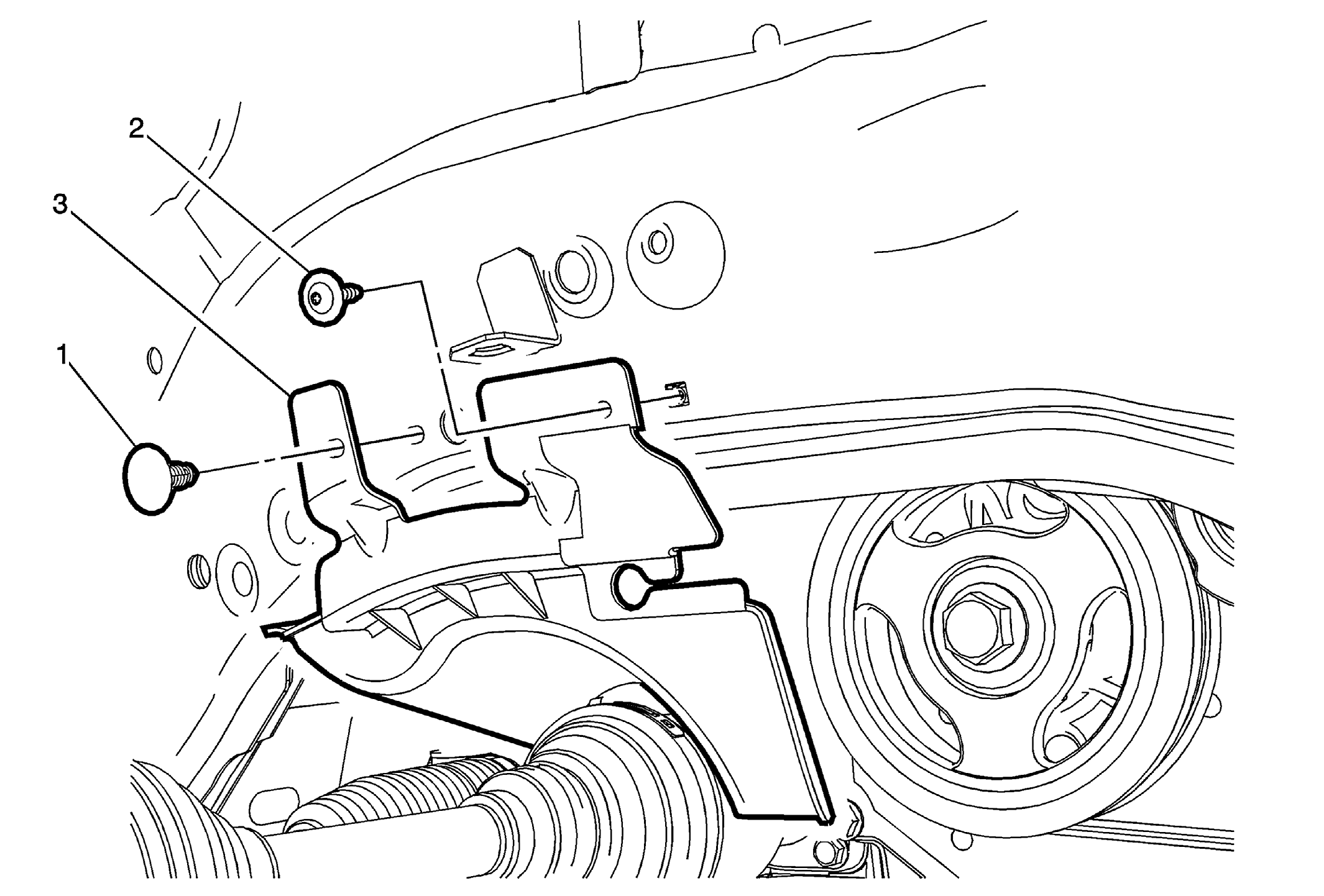

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . |
|
| 1 | Engine Front Splash Shield Retainer |
| 2 | Engine Front Splash Shield Fastener
CAUTION:
Refer to Fastener Caution . |
| 3 | Engine Front Splash Shield |
