Front Compartment Splash Shield Replacement
Front Compartment Splash Shield Replacement

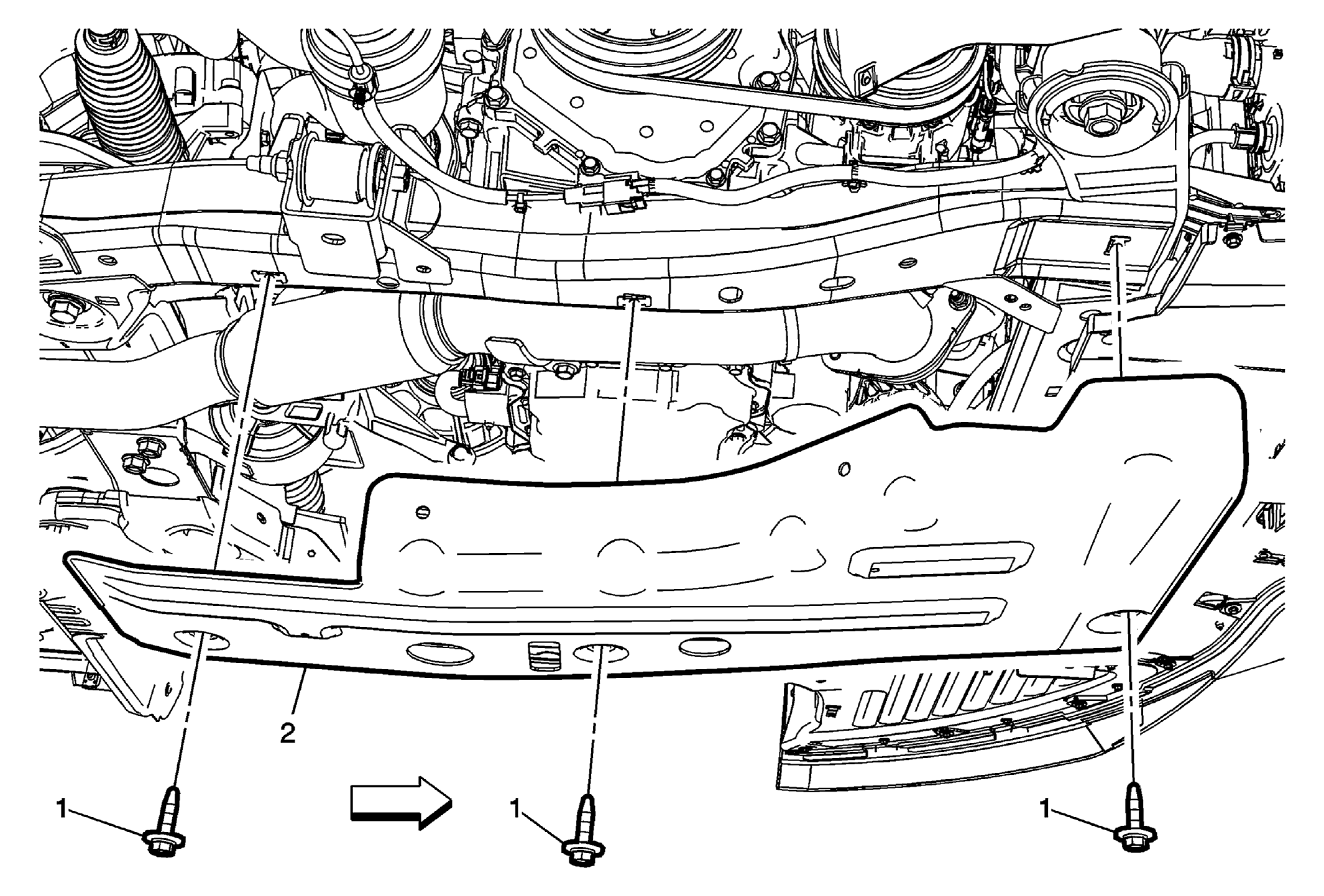

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . |
|
| 1 | Front Compartment Splash Shield Fastener (Qty 3)
CAUTION:
Refer to Fastener Caution . |
| 2 | Front Compartment Splash Shield |
