Installation Procedure

  1. Connect the wiring harness to the junction block base.
    2. Fig 1: Junction Block Base & Nut
    GM2575375Courtesy of GENERAL MOTORS COMPANY
  2. Position the junction block base (2) to the inner wheelhouse stud.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the junction block base nut (1) and tighten to 22 (16 lb ft).
  4. Install the electrical connectors to the front compartment fuse block housing.

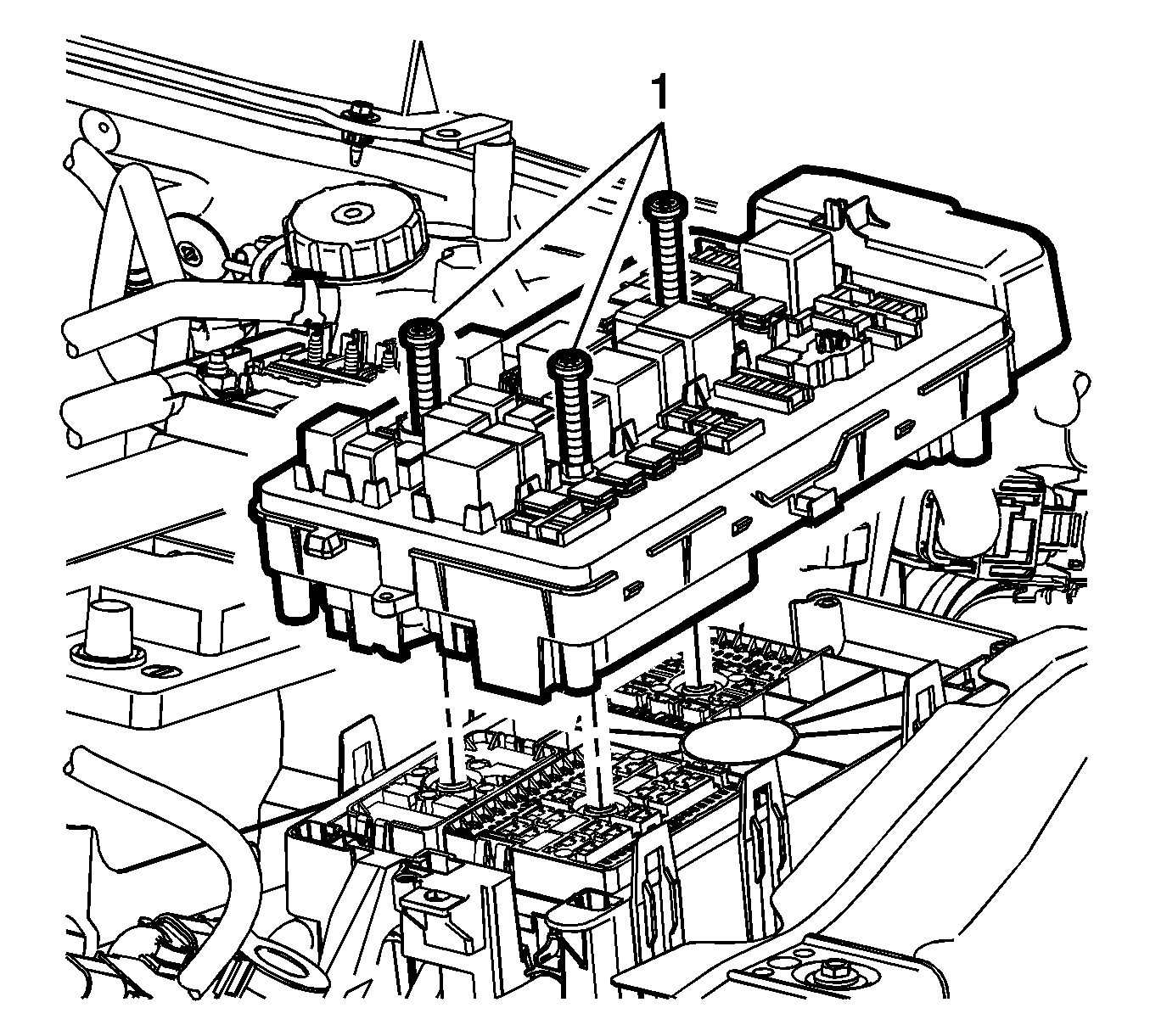

    5. Fig 2: Junction Block Bolts
    GM3461430Courtesy of GENERAL MOTORS COMPANY
  5. Install the junction block to the base.
  6. Install the junction block bolts (1) and tighten to 7 (63 lb in).
    7. Fig 3: Positive Battery Cable
    GM2636297Courtesy of GENERAL MOTORS COMPANY
  7. Position the positive battery cable to the junction block.
  8. Install the positive battery cable nut (1) and tighten to 12 (106 lb in).

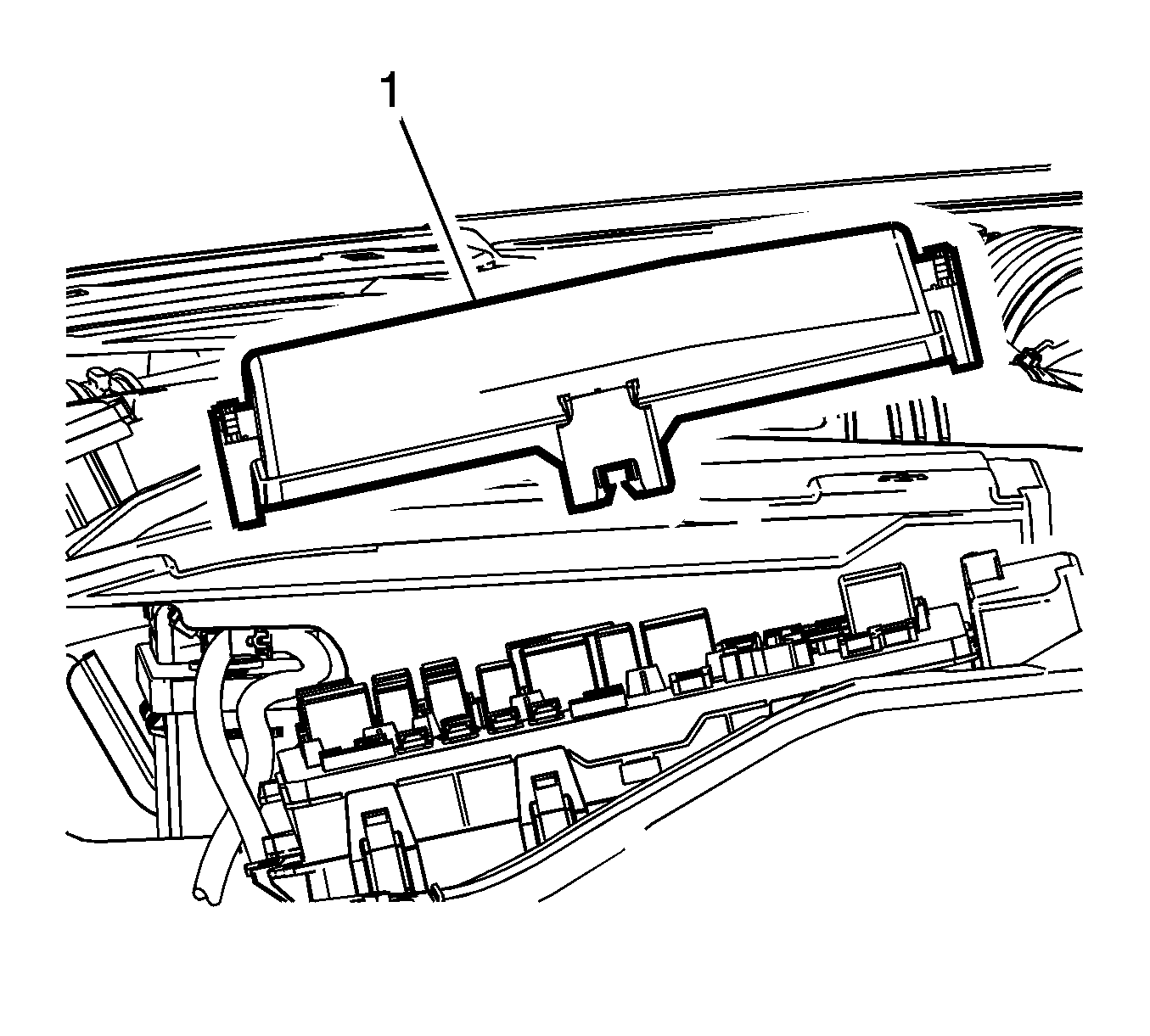

    9. Fig 4: Front Compartment Fuse Block Cover
    GM3461427Courtesy of GENERAL MOTORS COMPANY
  9. Install both front compartment fuse block covers (1).
  10. Install the windshield washer solvent container filler tube. Refer to Windshield Washer Solvent Container Filler Tube Replacement .
  11. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
