Outside Rearview Mirror Housing Replacement

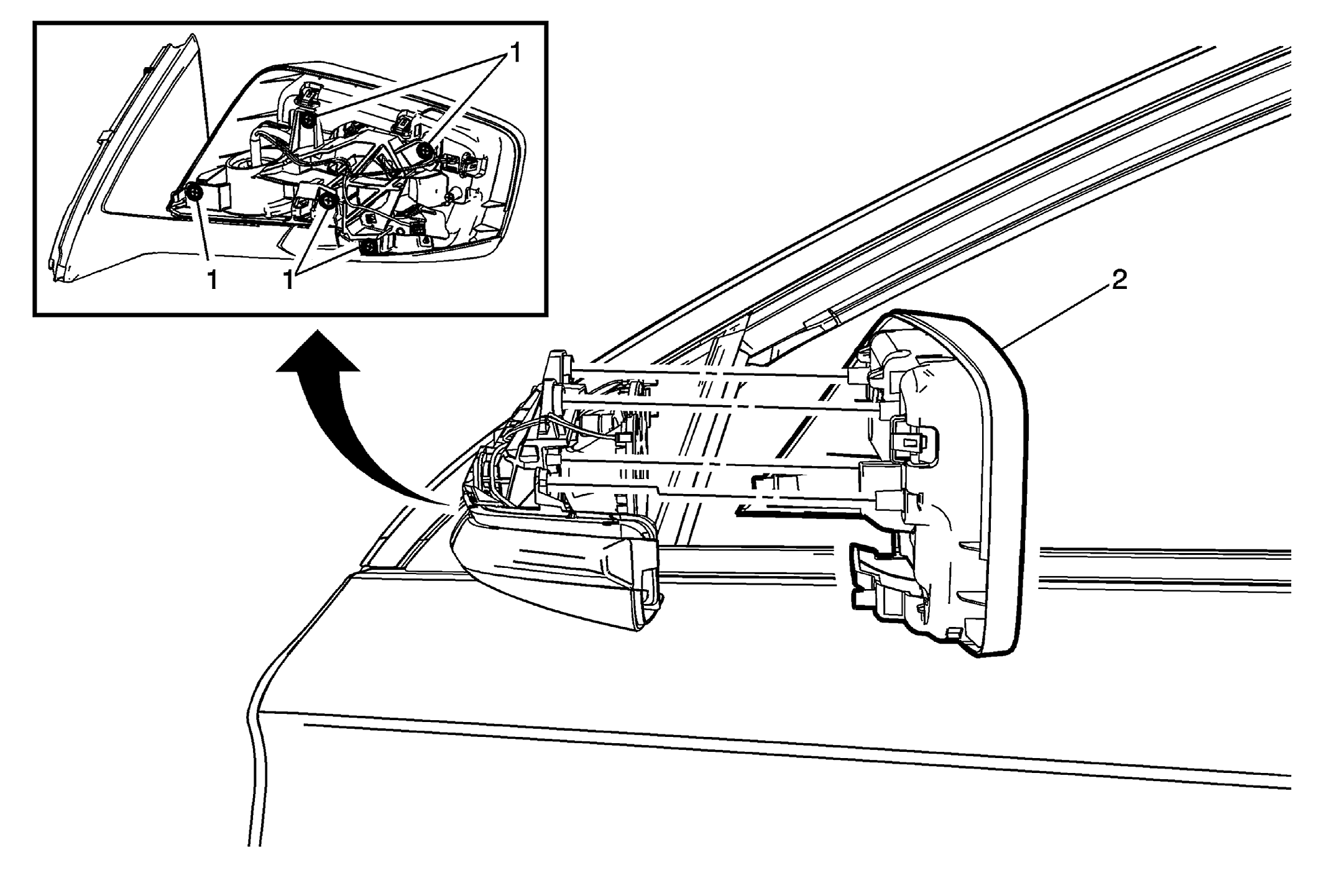

Fig 1: Outside Rearview Mirror Housing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the outside rearview mirror inner actuator. Refer to Outside Rearview Mirror Inner Actuator Replacement . Remove the outside rearview mirror turn signal lamp. Refer to Outside Rearview Mirror Turn Signal Lamp Replacement .
1	Outside Rearview Mirror Housing Screws (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2 (18 lb in)
2	Outside Rearview Mirror Housing Procedure Disconnect the electrical connector. NOTE: Inspect the outside mirror for proper operation.

Callout

Component Name

Preliminary Procedures

Remove the outside rearview mirror inner actuator. Refer to Outside Rearview Mirror Inner Actuator Replacement .
Remove the outside rearview mirror turn signal lamp. Refer to Outside Rearview Mirror Turn Signal Lamp Replacement .

Outside Rearview Mirror Housing Screws (Qty: 4)

CAUTION:

Tighten
2 (18 lb in)

Outside Rearview Mirror Housing
Procedure
Disconnect the electrical connector.

NOTE:

Inspect the outside mirror for proper operation.
