Installation Procedure

  1. Install the EBTCM assembly to the bracket.

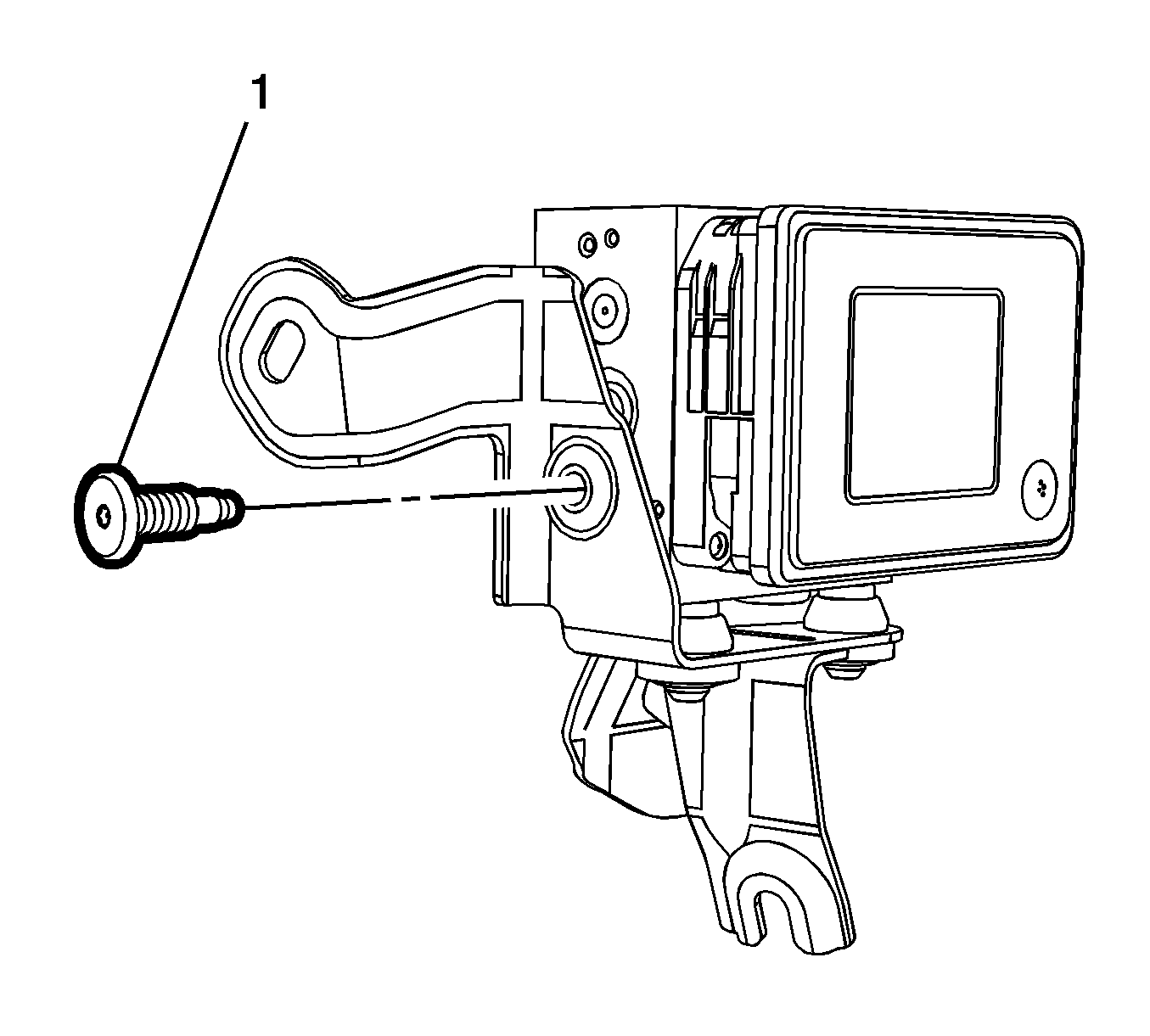

    2. Fig 1: BPMV Assembly Bracket Bolts
    GM2739969Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the EBTCM assembly bracket bolt (1) and tighten to 10 (89 lb in).
  3. Install the EBTCM assembly. Refer to Electronic Brake and Traction Control Module with Brake Pressure Modulator Valve Replacement .
