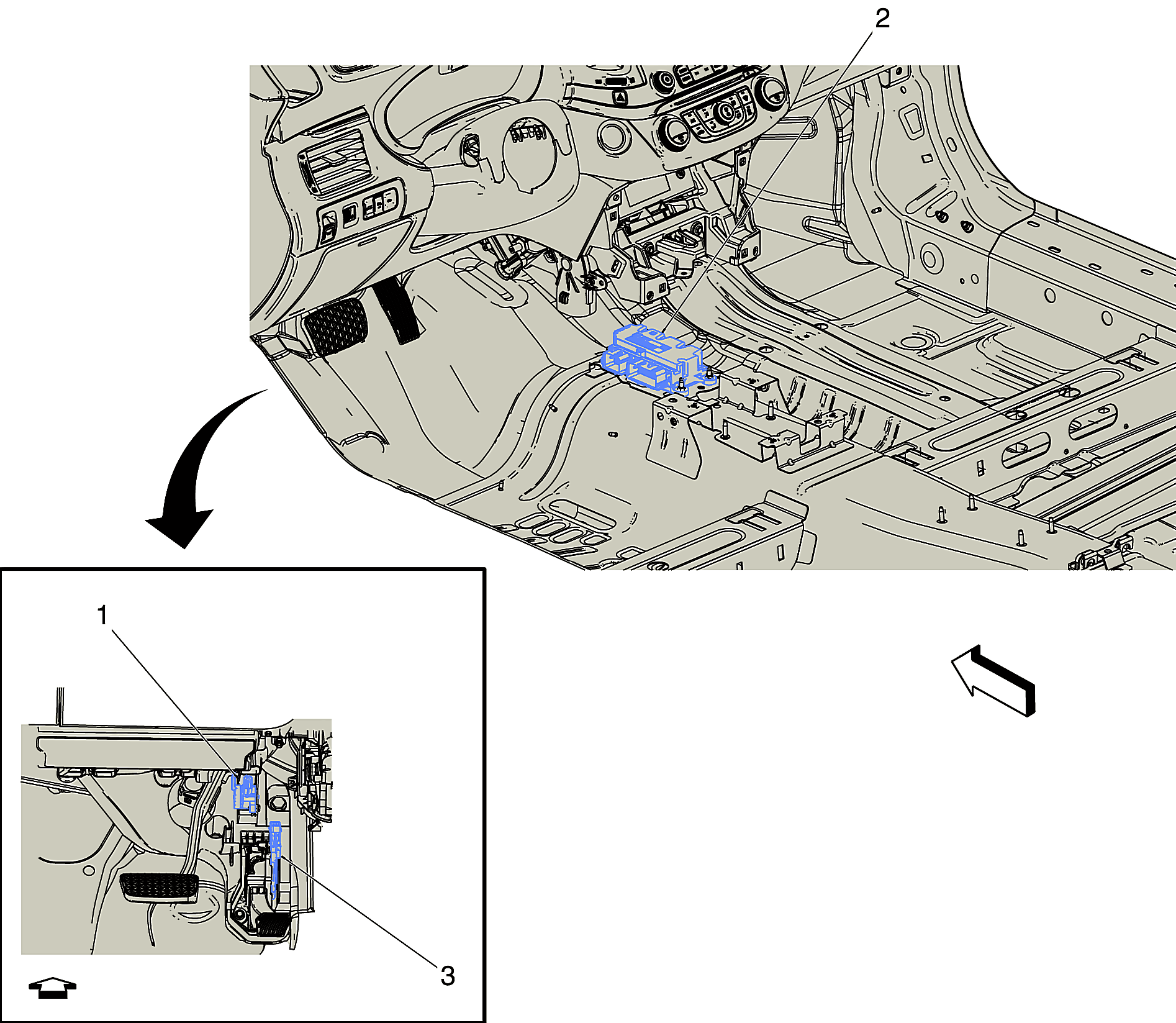

Bottom of Instrument Panel Components
Bottom of Instrument Panel Components
| Items |
|---|
| 1: B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor |
| 2: K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1K36 Inflatable Restraint Sensing and Diagnostic Module X2 |
| 3: B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor |
