Air Cleaner Element Replacement

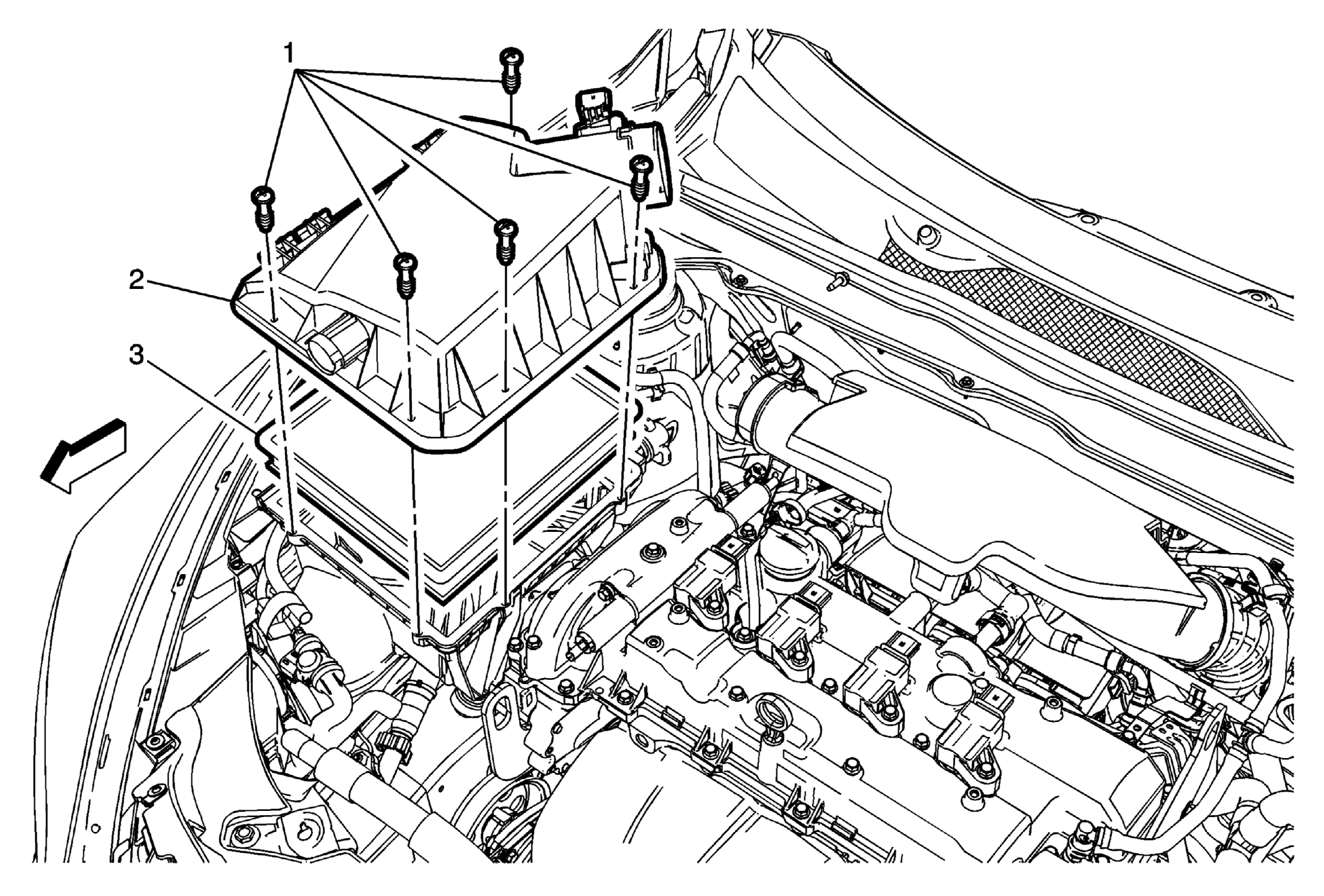

Fig 1: Air Cleaner Element (LKW)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement . Disconnect the mass airflow sensor electrical connector. Disconnect the secondary air injection pump inlet hose. Refer to Secondary Air Injection Pump Inlet Hose Replacement .
1	Air Cleaner Assembly Fasteners (Qty: 5) CAUTION: Refer to Fastener Caution .
2	Air Cleaner Upper Cover
3	Air Cleaner Element
