Fuel Feed Front Pipe Replacement

Preliminary Procedure

1. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
2. Remove the air cleaner resonator and outlet duct. Refer to Air Cleaner Resonator and Outlet Duct Replacement .
3. Relieve the system fuel pressure. Refer to Fuel Pressure Relief .

Procedure

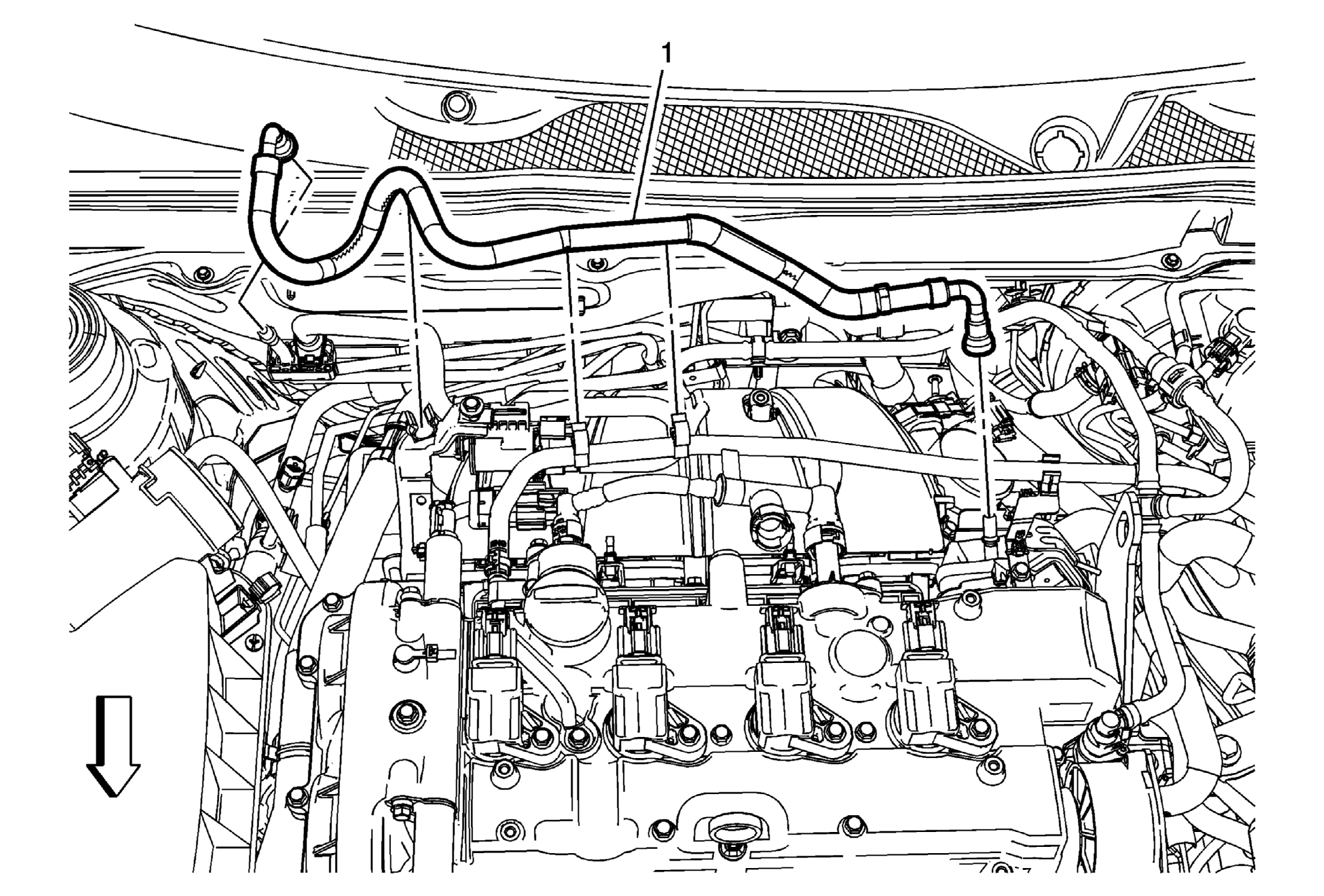

1. Disconnect the fuel feed front pipe from the retainers.
2. Disconnect the fuel feed front pipe from the pump and line. Refer to Metal Collar Quick Connect Fitting Service .
