Fuel Pump Cover Replacement
Fuel Pump Cover Replacement

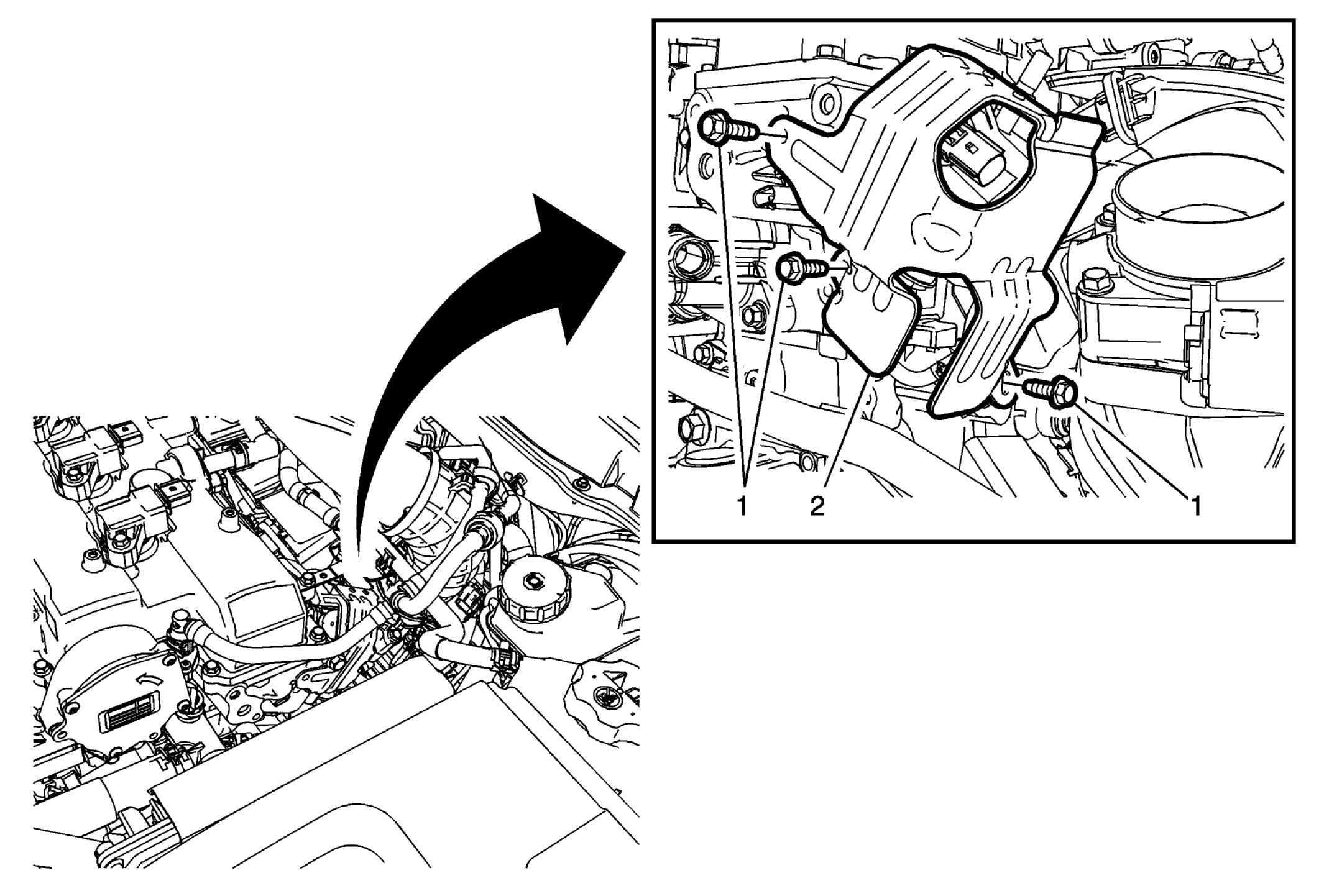

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . |
|
| 1 | Fuel Pump Cover Fasteners (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 10 (89 lb in) |
| 2 | Fuel Pump Cover Procedure Disconnect the electrical wiring harness connector from the fuel pump. |
