Fuel Pump Insulator Replacement

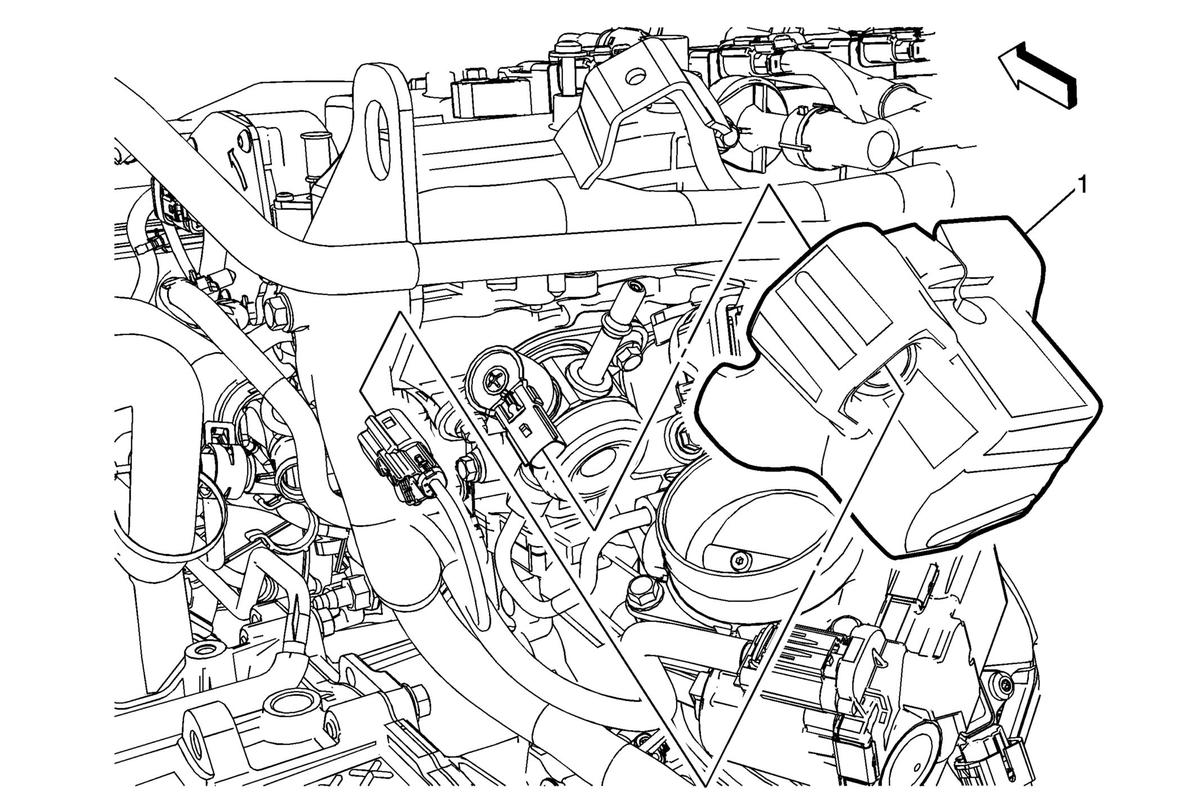

Fig 1: Fuel Pump Insulator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the fuel pump cover. Refer to Fuel Pump Cover Replacement Disconnect the fuel pump harness connector.
1	Fuel Pump Insulator NOTE: The fuel pump cover just snaps into place.

Callout

Component Name

Preliminary Procedure

Fuel Pump Insulator

NOTE:

The fuel pump cover just snaps into place.
