Fuel Tank Protector Replacement

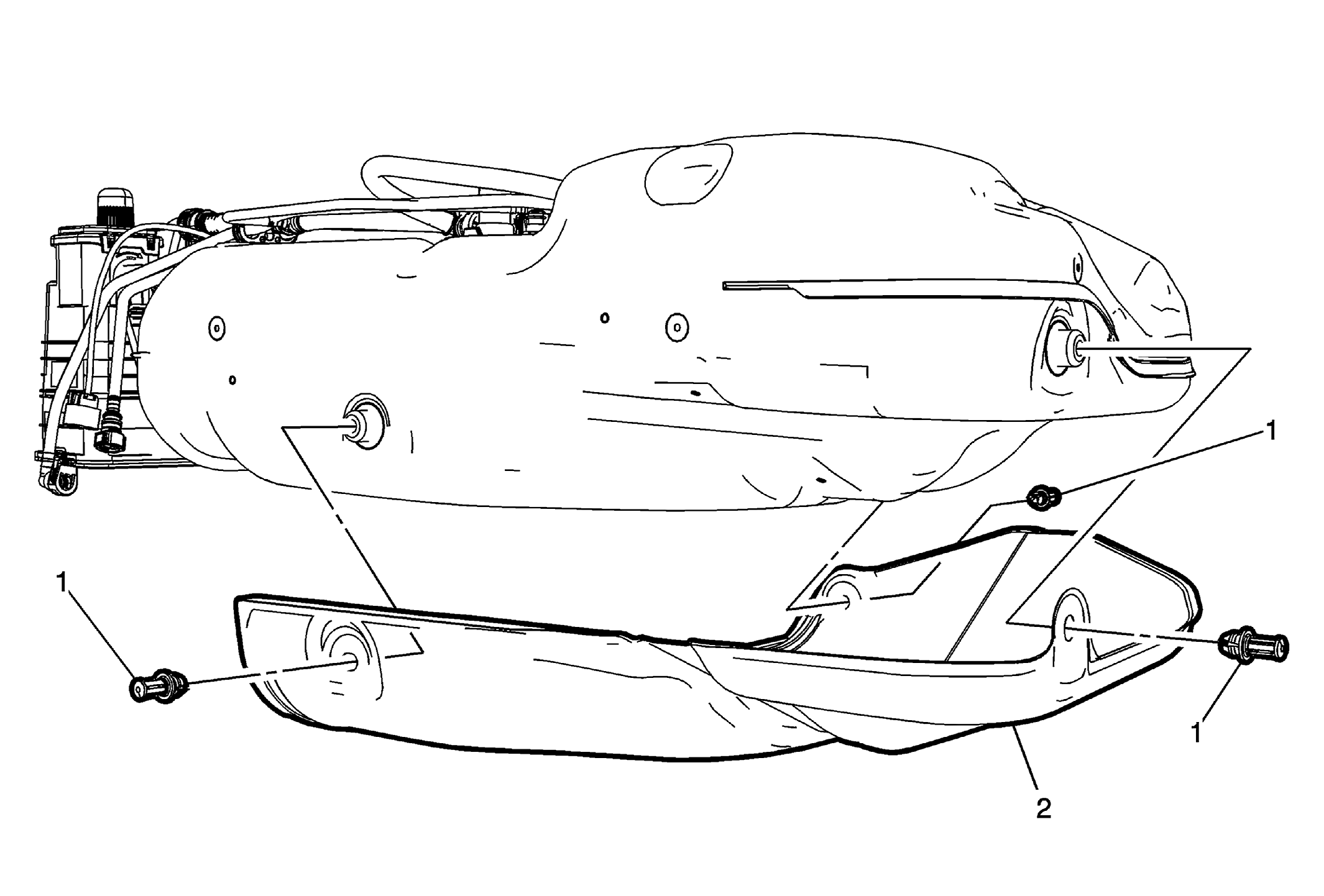

Fig 1: Fuel Tank Protector (FWD)

Courtesy of GENERAL MOTORS COMPANY

Fuel Tank Protector Replacement

Callout	Component Name
Preliminary Procedure  Remove the left fuel tank strap. Refer to Fuel Tank Replacement .
1	Fuel Tank Protector Retainers (Qty: 3)
2	Fuel Tank Protector
