Oil Pump Flow Control Valve Heat Shield Replacement
Oil Pump Flow Control Valve Heat Shield Replacement

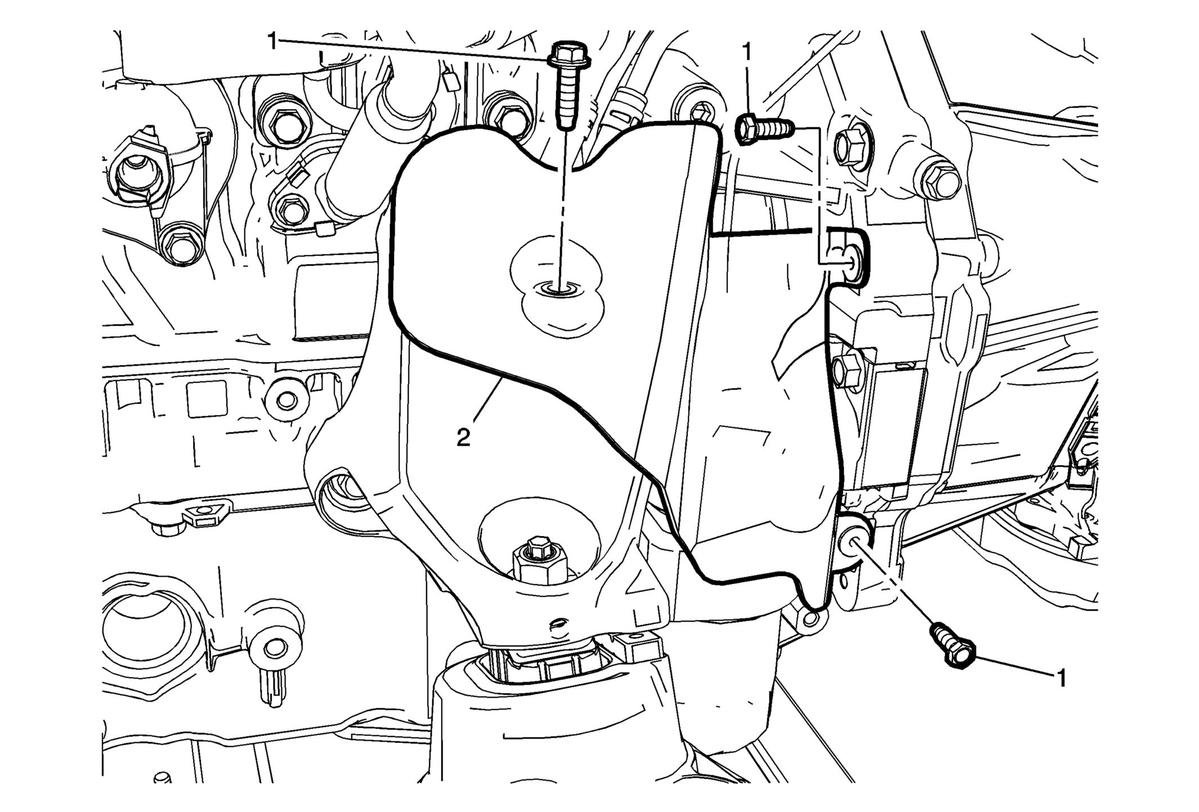

| Callout | Component Name |
|---|---|
| 1 | Oil Pump Flow Control Valve Heat Shield Fasteners (Qty 3)
CAUTION:
Refer to Fastener Caution . Tighten 10 (89 lb in) |
| 2 | Oil Pump Flow Control Valve Heat Shield |
