Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Generator Control Module Cover Fasteners
    GM2571557Courtesy of GENERAL MOTORS COMPANY
  1. Install the generator control module cover (3).
  2. Install the generator control module cover fasteners (1) and tighten to 9 N.m (80 lb in).
  3. Install the generator control module cover fastener (2) and tighten to 9 N.m (80 lb in).

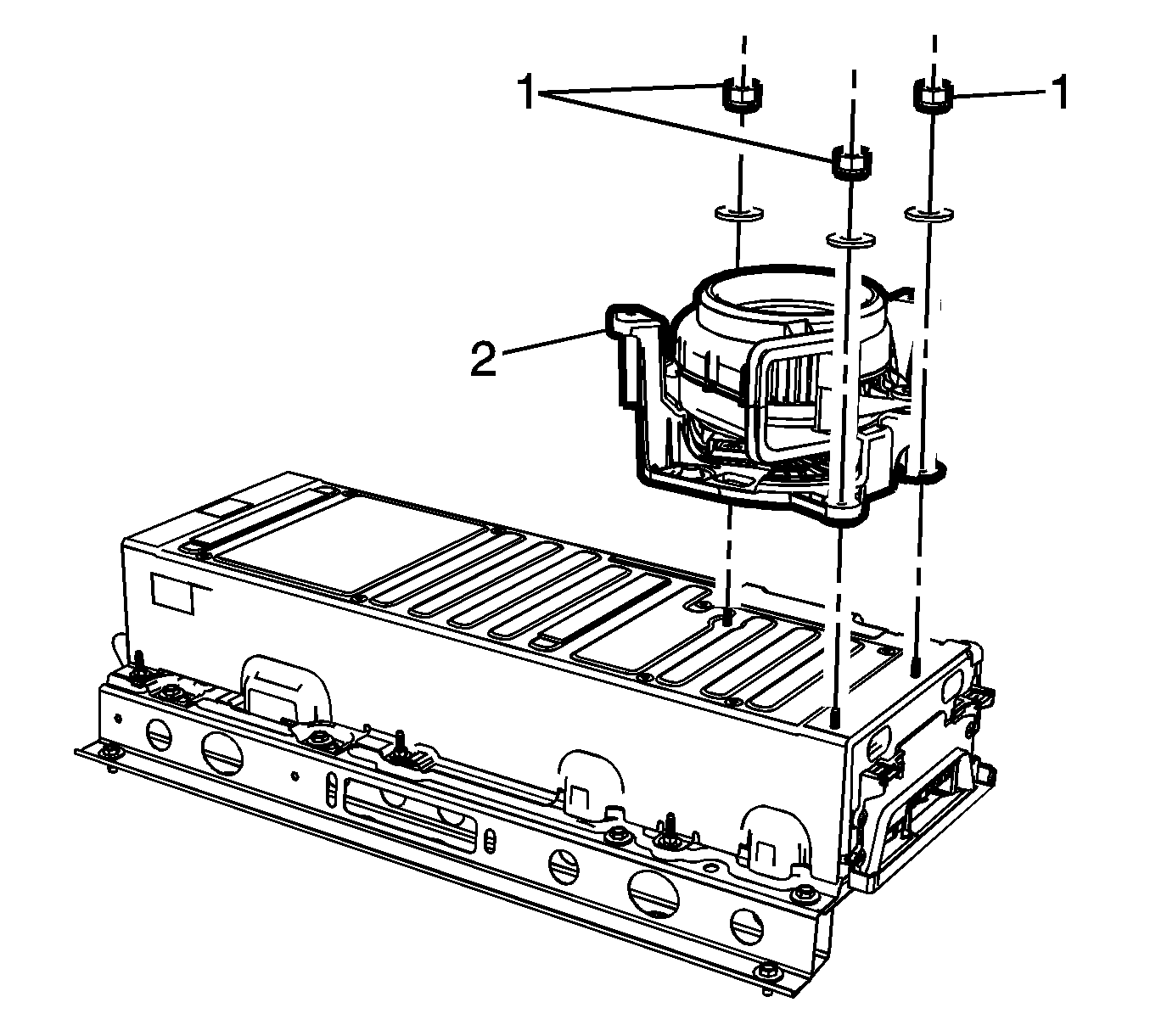

    4. Fig 2: Drive Motor Battery Cooling Blower Assembly
    GM2750282Courtesy of GENERAL MOTORS COMPANY
  4. Install the drive motor battery cooling blower motor and bracket (2). Tighten the fasteners (1) to 9 N.m (80 lb in).
    5. Fig 3: Drive Motor Battery Cooling Blower Outlet Duct
    GM3510849Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Make sure the duct is flush against the seal for efficient generator control and battery module cooling.

  5. Install the drive motor battery cooling blower outlet duct (1). Refer to Drive Motor Battery Cooling Blower Outlet Duct Replacement (LUK) .
    6. Fig 4: High Voltage 3-phase Cable
    GM2571363Courtesy of GENERAL MOTORS COMPANY
  6. Install the high voltage 3-phase cable (2) to the generator control and battery module. Tighten the nuts (1) to 9 N.m (80 lb in).
  7. Install the 12V cable (3) to the generator control and battery module. Tighten the nut (4) to 9 N.m (80 lb in).
    8. Fig 5: Body Harness Connectors
    GM2571124Courtesy of GENERAL MOTORS COMPANY
  8. Install the body harness connectors (1).
    9. Fig 6: Drive Motor Battery Cooling Air Inlet Duct
    GM3510860Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Make sure the duct is flush against the seal for efficient generator control and battery module cooling.

  9. Install the drive motor battery cooling air inlet duct (1). Refer to Drive Motor Battery Cooling Air Inlet Duct Replacement .
  10. Install the rear compartment floor panel front trim. Refer to Rear Compartment Floor Panel Front Trim Replacement (With HP6) .
  11. Install the rear compartment floor panel. Refer to Rear Compartment Floor Panel Trim Replacement (Without HP6) , Rear Compartment Floor Panel Trim Replacement (With HP6) .
  12. Install the drive motor battery cooling blower cover. Refer to Drive Motor Battery Cooling Blower Cover Replacement (With HP6) .
  13. Enable the hybrid battery. Refer to High Voltage Enabling .
