Steering Linkage Outer Tie Rod Replacement

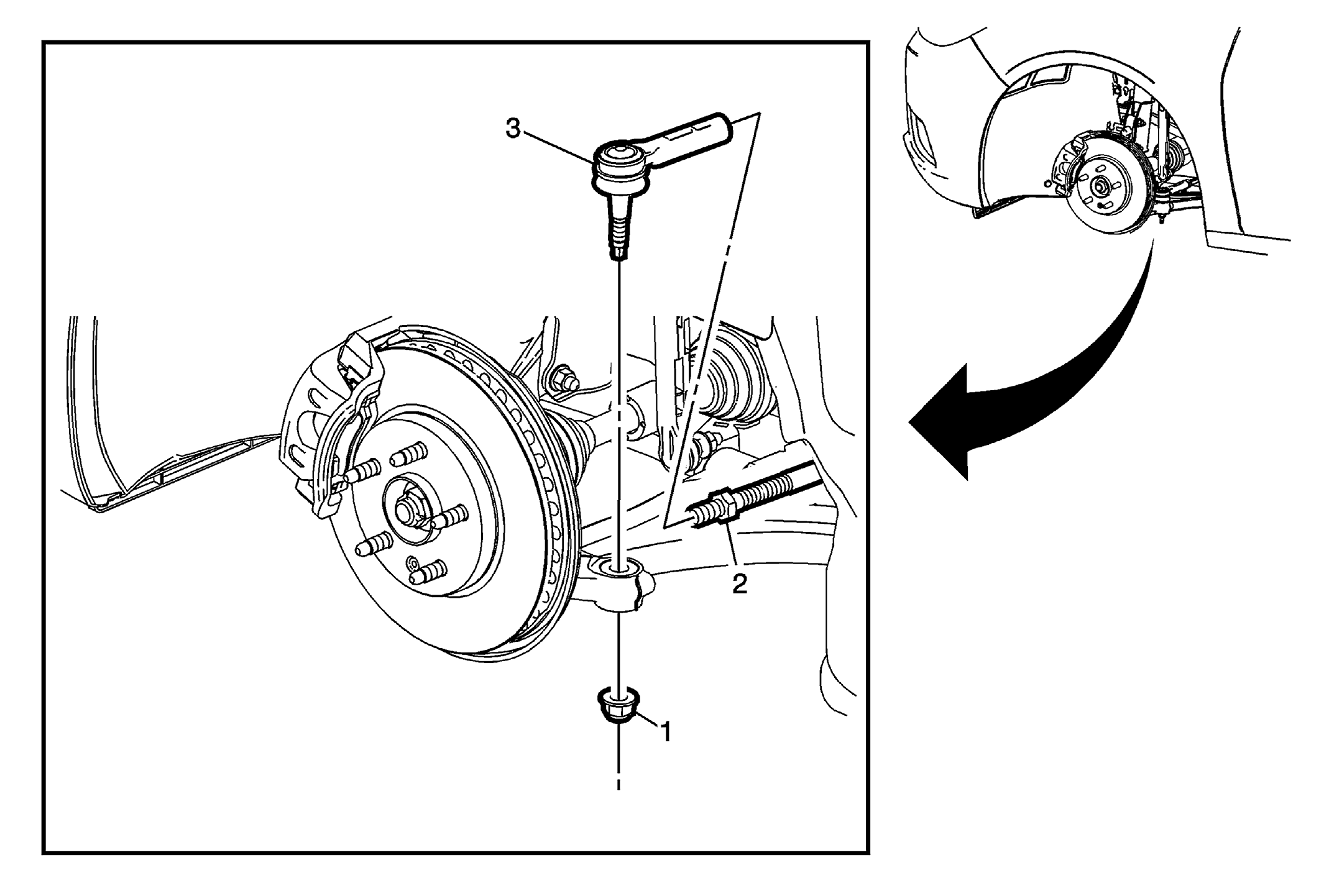

Fig 1: Steering Linkage Outer Tie Rod And Nuts
GM2741049Courtesy of GENERAL MOTORS COMPANY
Steering Linkage Outer Tie Rod Replacement

Callout Component Name

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1 Steering Linkage Outer Tie Rod Nut
CAUTION:

Refer to Fastener Caution .


Tighten
35 N.m (26 lb ft) + 30 degrees
2 Steering Linkage Inner Tie Rod Nut

Procedure

  1. Place match marks on the steering linkage inner tie rod nut and the steering linkage inner tie rod.
  2. During installation, align the match marks.
  3. Do not tighten the nut during installation. Tighten the nut after adjusting the front toe.

Tighten
60 N.m (44 lb ft)
3 Steering Linkage Outer Tie Rod
CAUTION:

Do not free the ball stud by using a pickle fork or a wedge-type tool. Damage to the seal or bushing may result.

Procedure

  1. Use the CH-161-B  puller to disconnect the steering linkage outer tie rod from the steering knuckle.
  2. Clean the tapered surface of the steering knuckle.
  3. Inspect the steering linkage inner tie rod for bent or damaged threads. Repair or replace the tie rod if needed. Refer to Steering Linkage Inner Tie Rod Replacement (NJ2) , Steering Linkage Inner Tie Rod Replacement (NJ1) .
  4. If equipped with electronic power steering, perform the software end stop learning procedure. Refer to Power Steering Control Module Calibration (NJ1) .
  5. Measure and adjust the front toe. Refer to Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment .

Special Tools
CH-161-B  Bearing Puller
For equivalent regional tools, refer to Special Tools .
