Communication Interface Module Battery Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

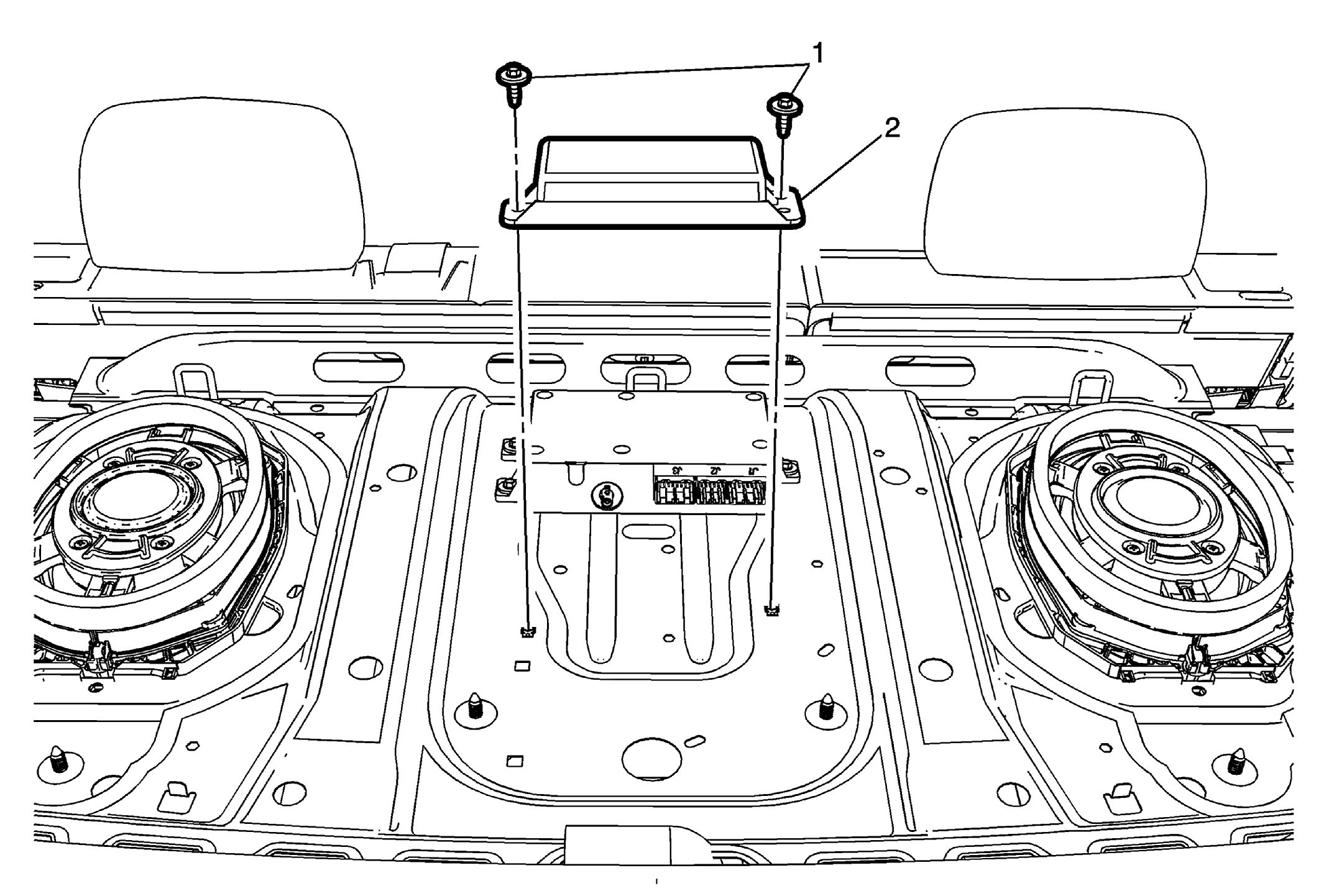

Fig 1: Communication Interface Module Battery

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (Without HP6) , Rear Window Panel Trim Replacement (With HP6) . Remove the rear window panel trim insulator, if equipped.
1	Communication Interface Module Battery Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Communication Interface Module Battery Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure

Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (Without HP6) , Rear Window Panel Trim Replacement (With HP6) .
Remove the rear window panel trim insulator, if equipped.

Communication Interface Module Battery Fastener (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Communication Interface Module Battery
Procedure
Disconnect the electrical connector.
