Cruise Control Switch Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

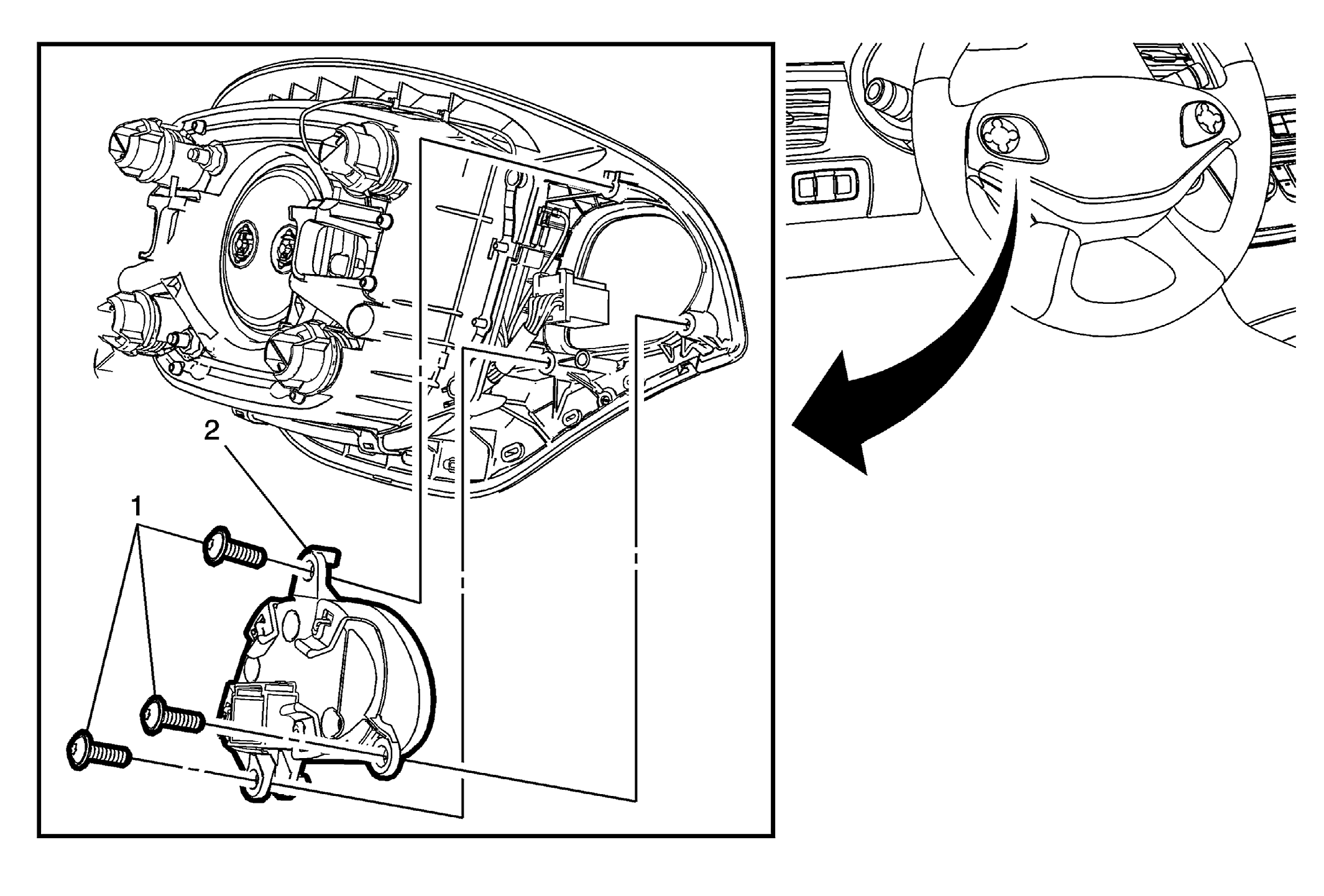

Fig 1: Cruise Control Switch Assembly
GM2911521Courtesy of GENERAL MOTORS COMPANY
Cruise Control Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the steering wheel airbag. Refer to Steering Wheel Airbag Replacement .
1 Cruise Control Switch Fastener (Qty: 3)
CAUTION:

Refer to Fastener Caution .

2 Cruise Control Switch Assembly
Procedure
Disconnect the electrical connection.
