Turn Signal Multifunction Switch Replacement

Preliminary Procedures

1. Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .
2. If equipped with BTM, remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .
3. If not equipped with BTM, remove the ignition lock cylinder bezel. Refer to Ignition Lock Cylinder Bezel Replacement (Without BTM) .

Procedure

1. Disconnect electrical connectors.

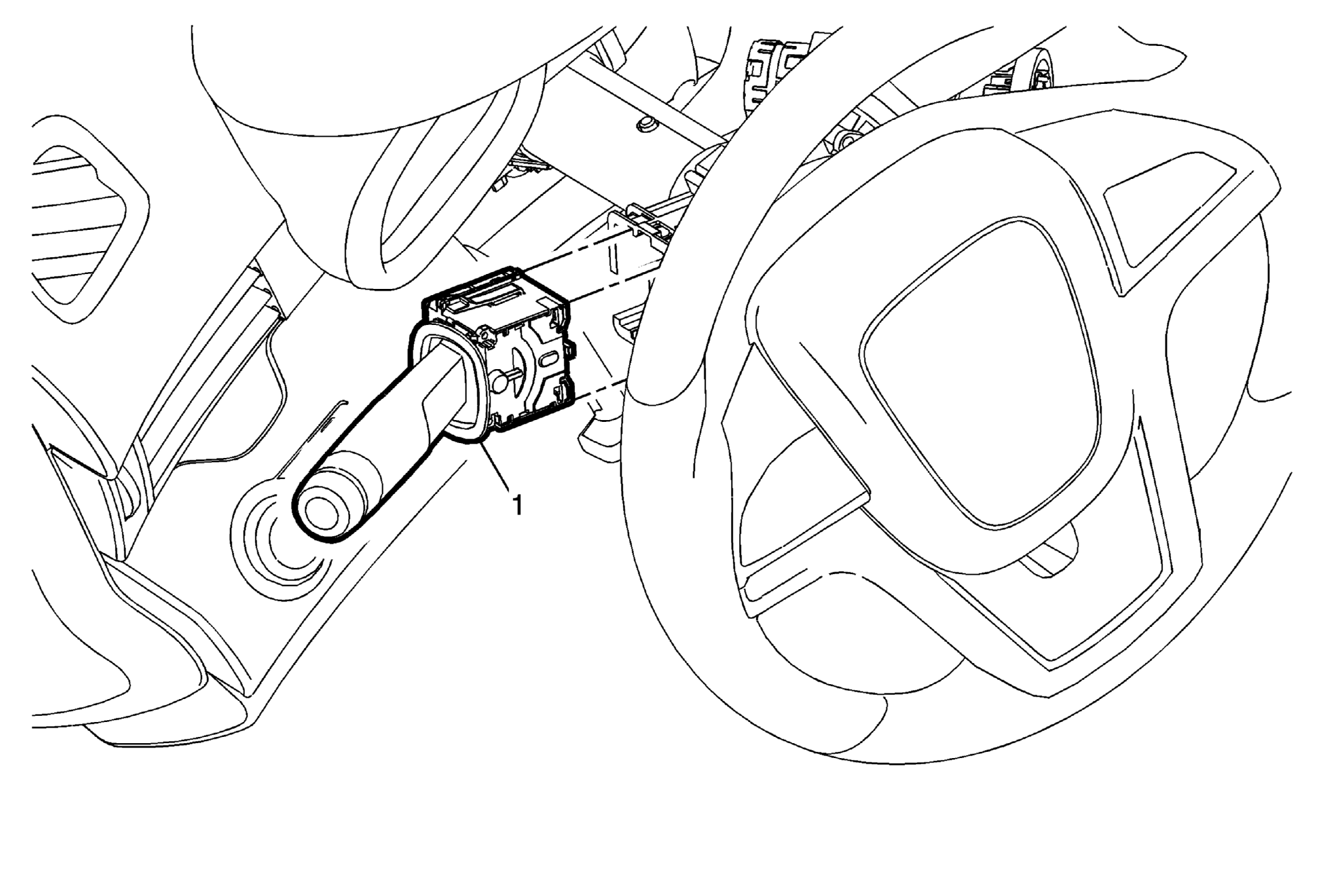

2. Release the retaining tabs and remove the turn signal multifunction switch from the turn signal switch bracket.
