Shift Lock Control System
›
Schematic Wiring Diagrams
›
Shift Lock Control Wiring Schematics
›
Shift Lock Control
Shift Lock Control

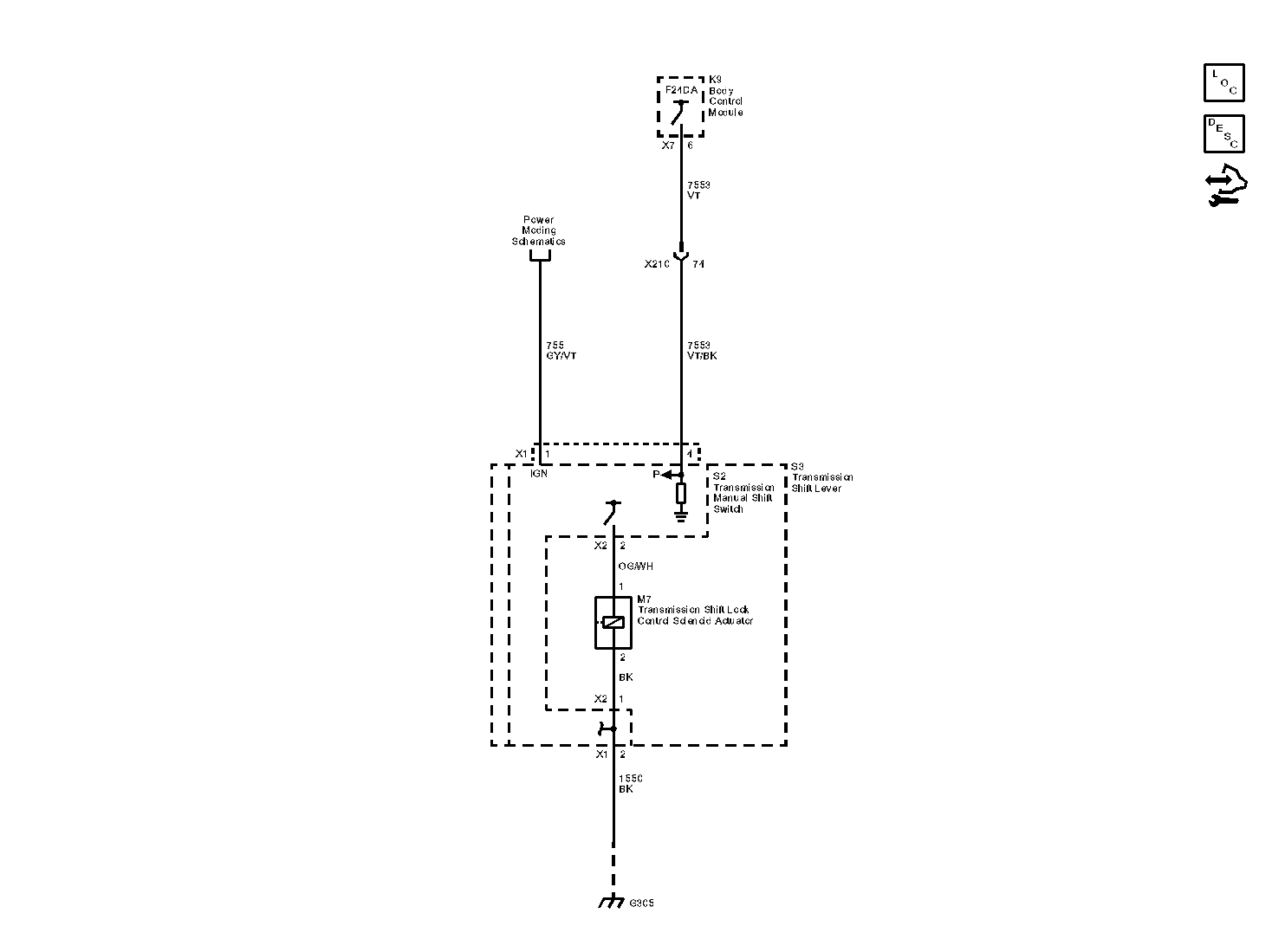

Fig 1: Shift Lock Control Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
