Engine Components - Front (LEA 2 of 2)

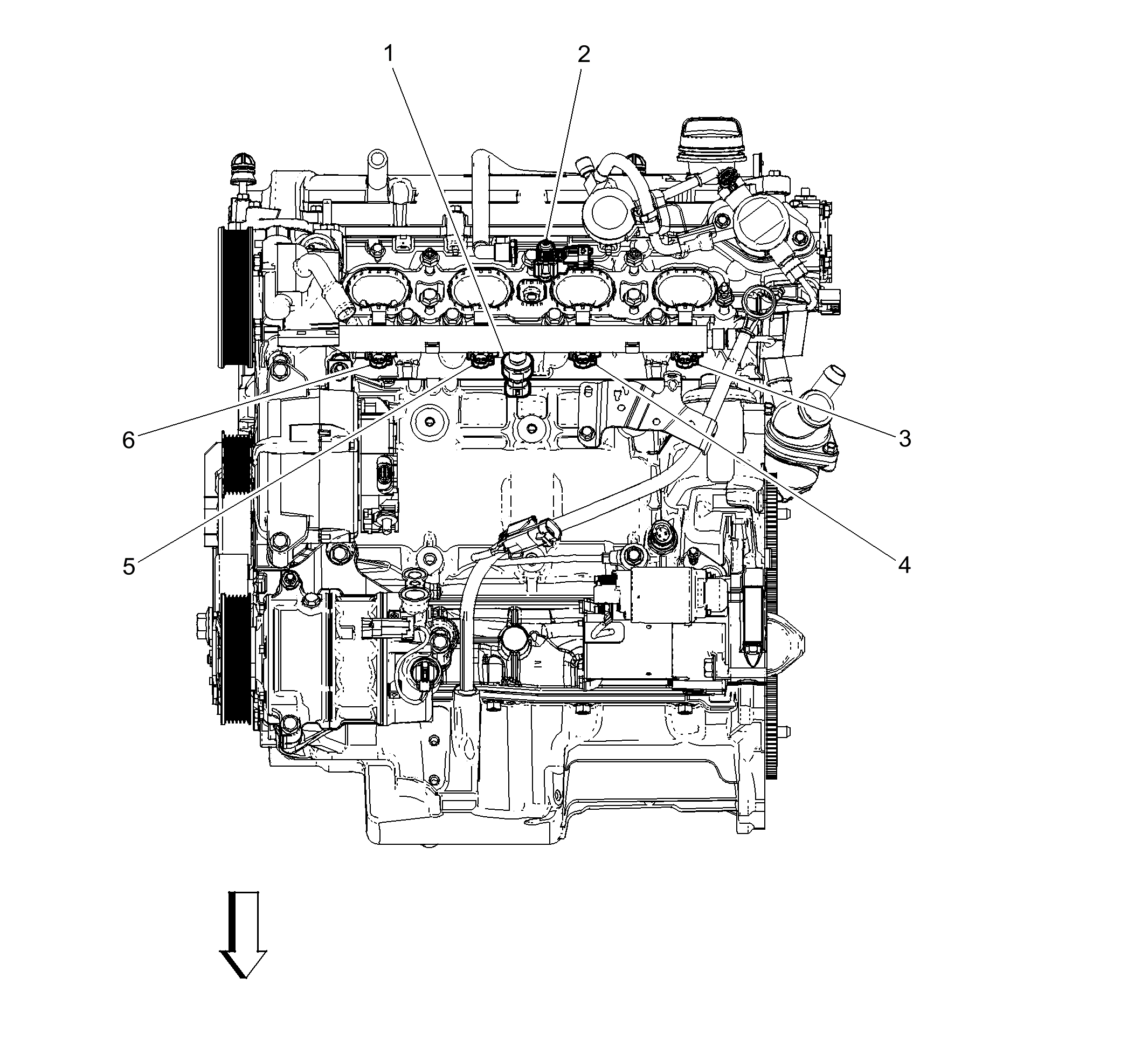

Fig 1: Engine Components - Front (LEA 2 of 2)
GM3350005Courtesy of GENERAL MOTORS COMPANY
Items
1:  B47B Fuel Rail Pressure Sensor (LEA) B47B Fuel Rail Pressure Sensor
2:  B74 Manifold Absolute Pressure Sensor (LEA) B74 Manifold Absolute Pressure Sensor
3:  Q17D Fuel Injector 4 (LEA) Q17D Fuel Injector 4
4:  Q17C Fuel Injector 3 (LEA) Q17C Fuel Injector 3
5:  Q17B Fuel Injector 2 (LEA) Q17B Fuel Injector 2
6:  Q17A Fuel Injector 1 (LEA) Q17A Fuel Injector 1
