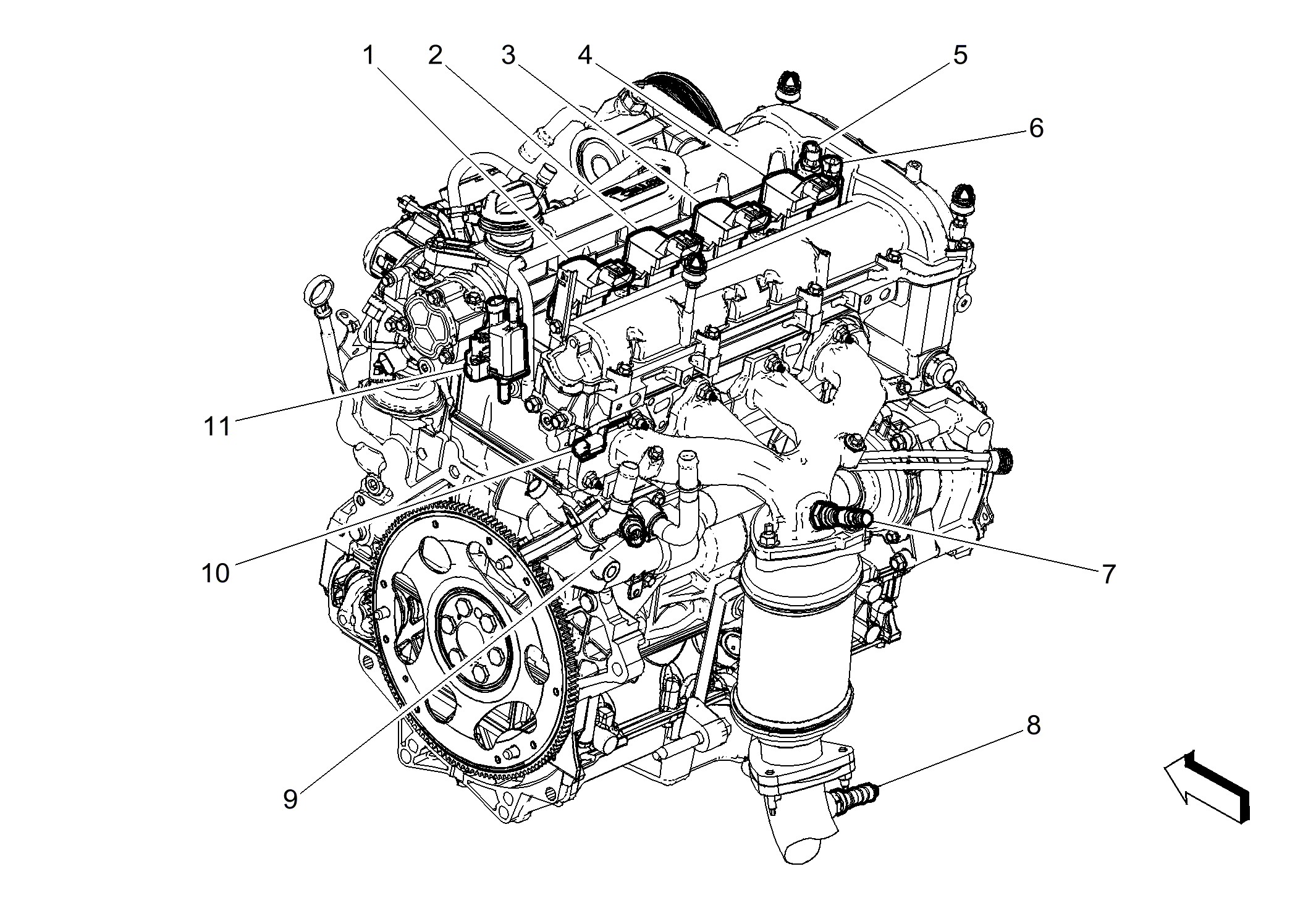

| 1:
T8D Ignition Coil 4 (LEA) T8D Ignition Coil 4 |
| 2:
T8C Ignition Coil 3 (LEA) T8C Ignition Coil 3 |
| 3:
T8B Ignition Coil 2 (LEA) T8B Ignition Coil 2 |
| 4:
T8A Ignition Coil 1 (LEA) T8A Ignition Coil 1 |
| 5:
Q6F Camshaft Position Actuator Solenoid Valve - Intake (LEA) Q6F Camshaft Position Actuator Solenoid Valve - Intake |
| 6:
Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LEA) Q6E Camshaft Position Actuator Solenoid Valve - Exhaust |
| 7:
B52A Heated Oxygen Sensor 1 (LEA) B52A Heated Oxygen Sensor 1 |
| 8:
B52B Heated Oxygen Sensor 2 (LEA) B52B Heated Oxygen Sensor 2 |
| 9:
B34 Engine Coolant Temperature Sensor |
| 10:
B23E Camshaft Position Sensor - Exhaust (LEA) B23E Camshaft Position Sensor - Exhaust |
| 11:
Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
