Liftgate Latch Replacement
Liftgate Latch Replacement

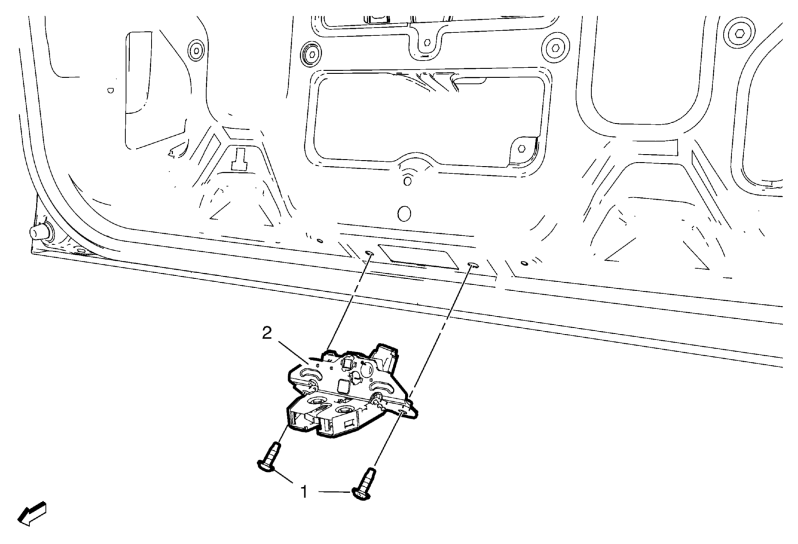

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the liftgate lower trim finish panel. Refer to Liftgate Lower Trim Finish Panel Replacement |
|
| 1 | Liftgate Latch Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 22 (16 lb ft) |
| 2 | Liftgate Latch |
