Front Side Door Window Replacement

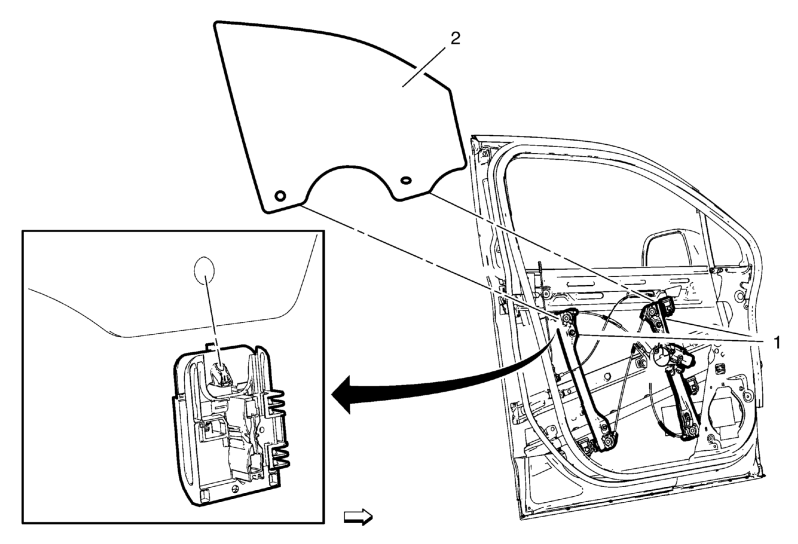

Fig 1: Front Side Door Window
GM2372621Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Replacement

Callout Component Name

Preliminary Procedure

  1. Position the window approximately half way down in the door.
  2. Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
  3. Remove the outer sealing strip. Refer to Front Side Door Window Outer Sealing Strip Replacement .
1 Front Side Door Window Regulator Sash (Qty: 2).
2 Front Side Door Window

Procedure

  1. Loosen the window regulator sash nuts, pull upward to release the window from the sash.
  2. Rotate the front door window as necessary to remove it from the door.
