Front Side Door Window Regulator Guide Replacement

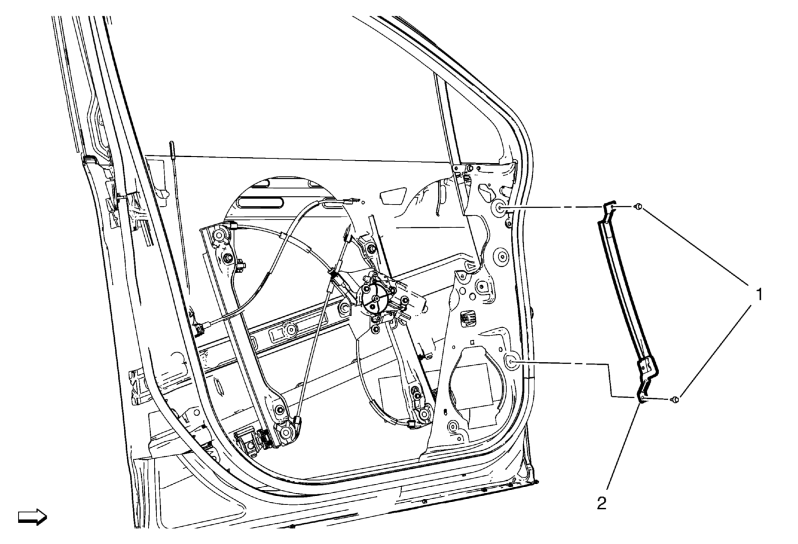

Fig 1: Front Side Door Window Regulator Guide

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Window Regulator Guide Replacement

Callout	Component Name
Preliminary Procedure  Remove the front side door water deflector. Refer to Front Side Door Water Deflector Replacement .
1	Front Side Door Window Regulator Guide Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Front Side Door Window Regulator Guide
