Automatic Transmission Components (MH8)

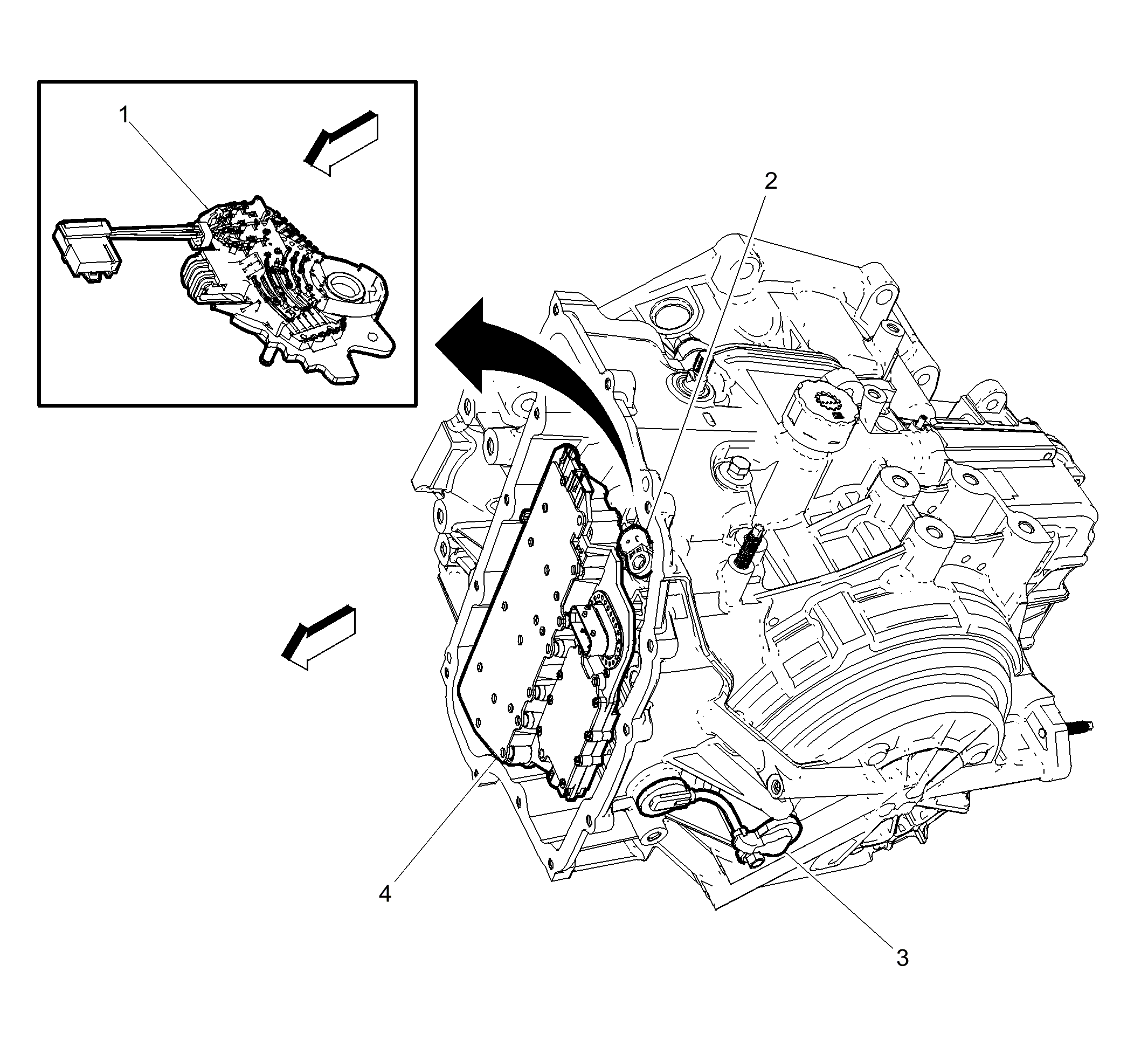

Fig 1: Automatic Transmission Components (MH8)

Courtesy of GENERAL MOTORS COMPANY

Items
1:  B15 Transmission Internal Mode Switch (MH8)
2:  B14A Transmission Output Shaft Speed Sensor (MH8)
3:  B14C Transmission Input Shaft Speed Sensor (MH8)
4:  Q8 Control Solenoid Valve Assembly (MH8) Q8 Control Solenoid Valve Assembly X1 (MH8)Q8 Control Solenoid Valve Assembly X2 (MH8)Q8 Control Solenoid Valve Assembly X3 (MH8)Q8 Control Solenoid Valve Assembly X4 (MH8)
