Power, Ground, Serial Data, Alarm, Rear Sensors and Controls

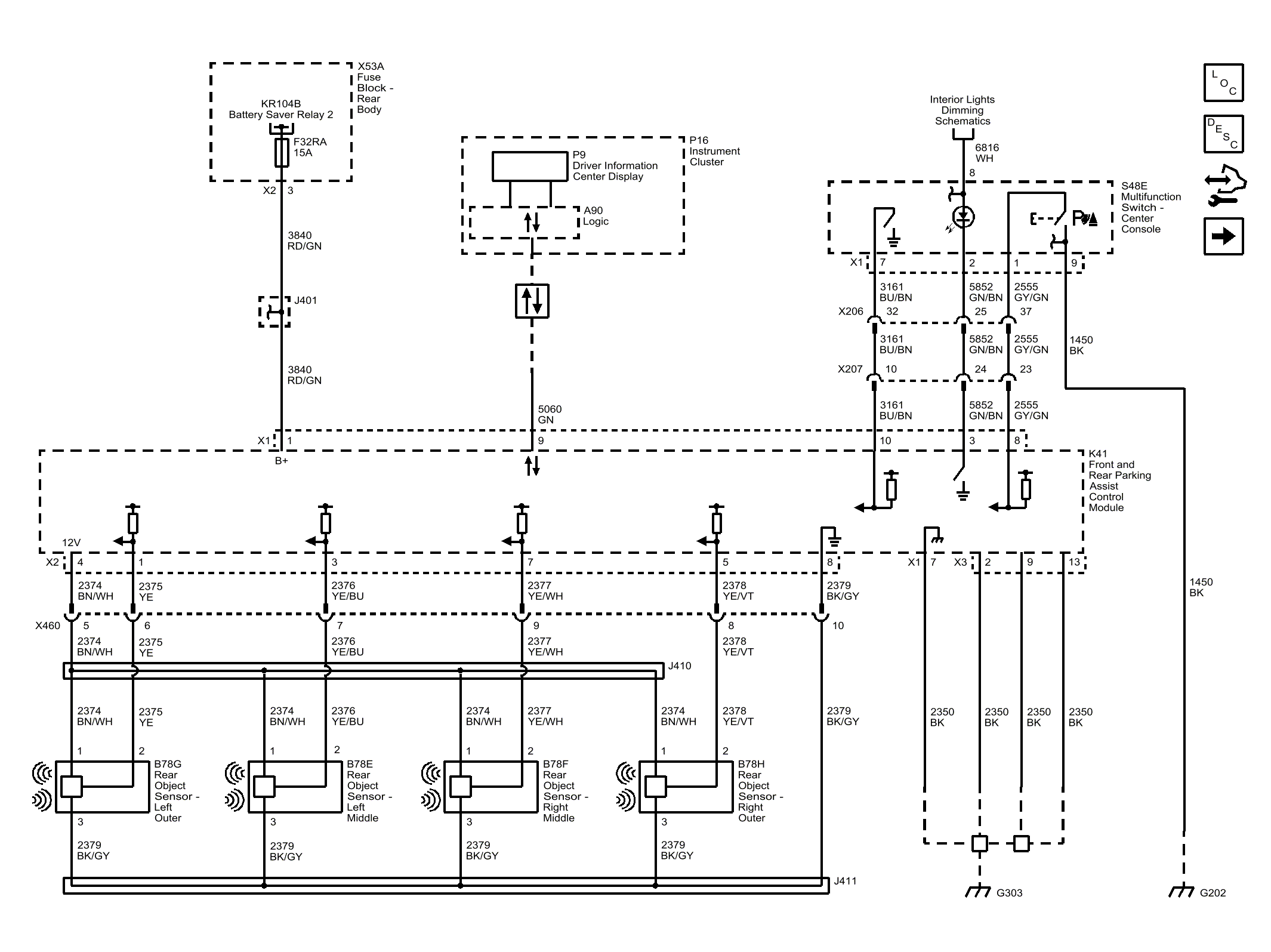

Fig 1: Power, Ground, Serial Data, Alarm, Rear Sensors and Controls Wiring Schematic
GM3554213Courtesy of GENERAL MOTORS COMPANY
