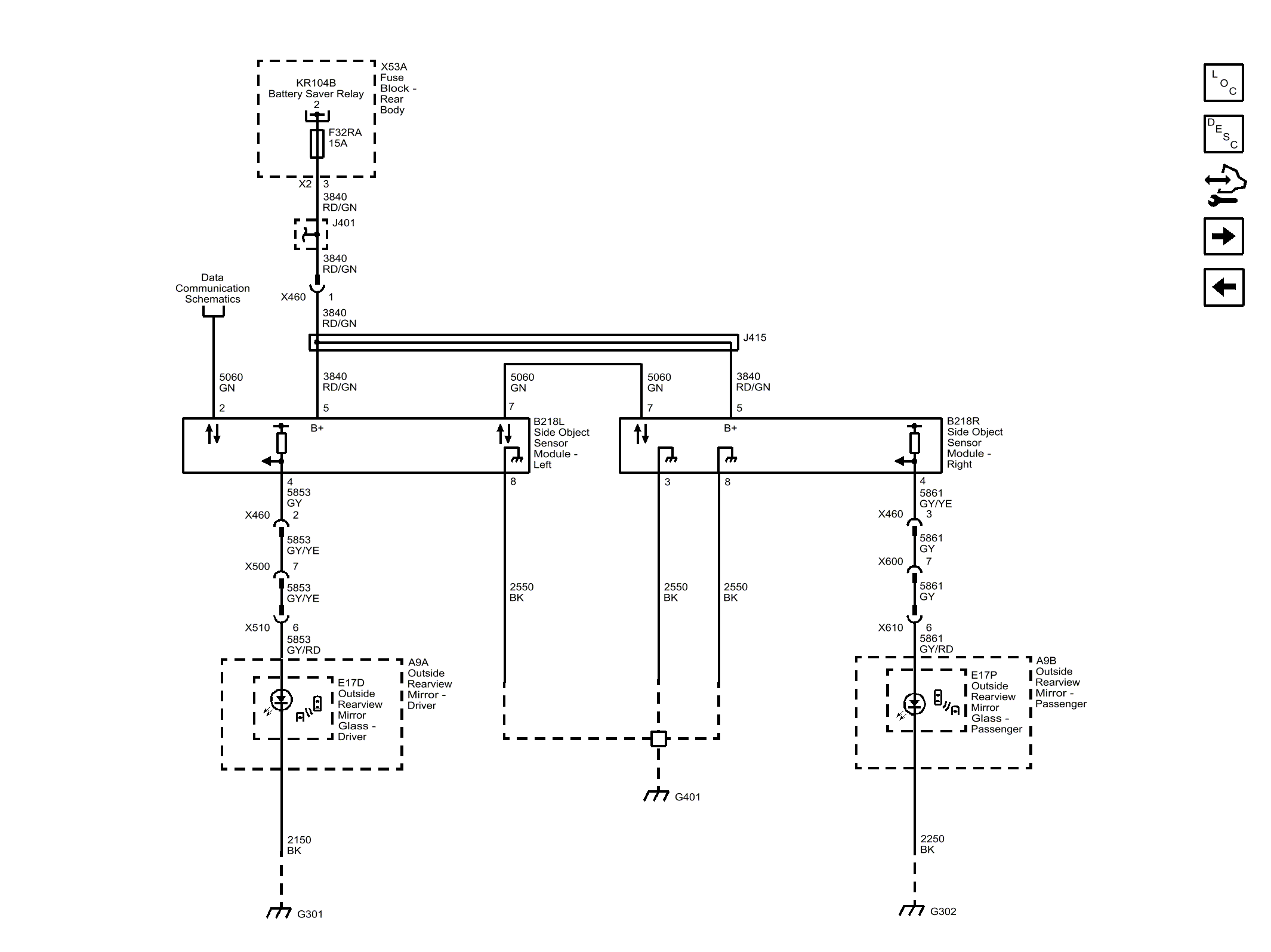

Home › Chevrolet › 2014 › SS › Repair and Diagnosis › Accessories & Equipment › Drivers Assistance Systems - ADAS › Object Detection System And Pedestrian Protection System › Schematic Wiring Diagrams › Object Detection Wiring Schematics › Side Object Sensors
