Audio/Video Disc Player Adapter Replacement

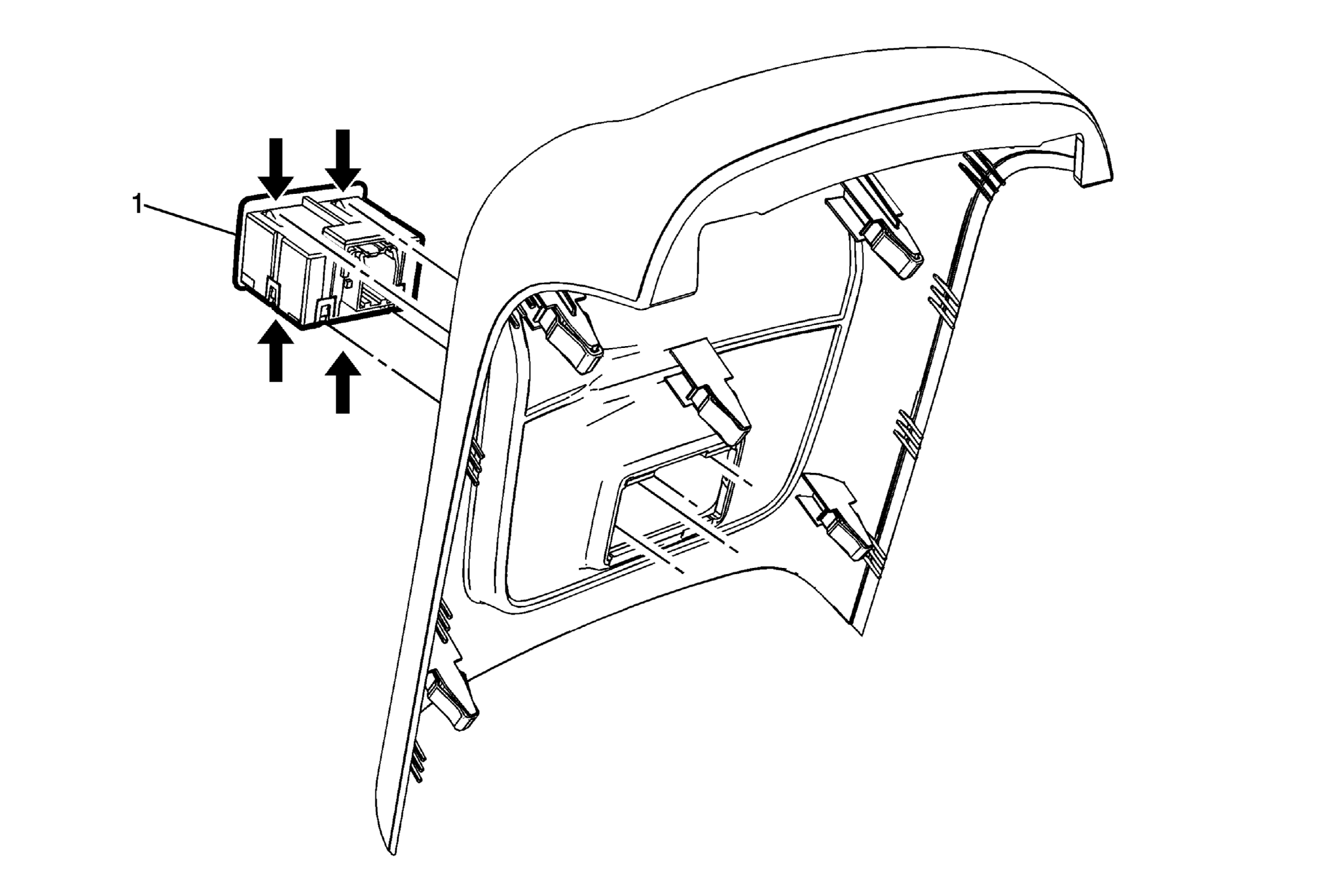

Fig 1: Audio/Video Disc Player Adapter

Courtesy of GENERAL MOTORS COMPANY

Audio/Video Disc Player Adapter Replacement

Callout	Component Name
Preliminary Procedure  Remove the front floor console rear trim panel. Refer to Front Floor Console Rear Trim Panel Replacement .
1	Audio/Video Disc Player Adapter Procedure  Using a small flat bladed tool, release the adapter from the panel.
