Power, Ground and Data Communications

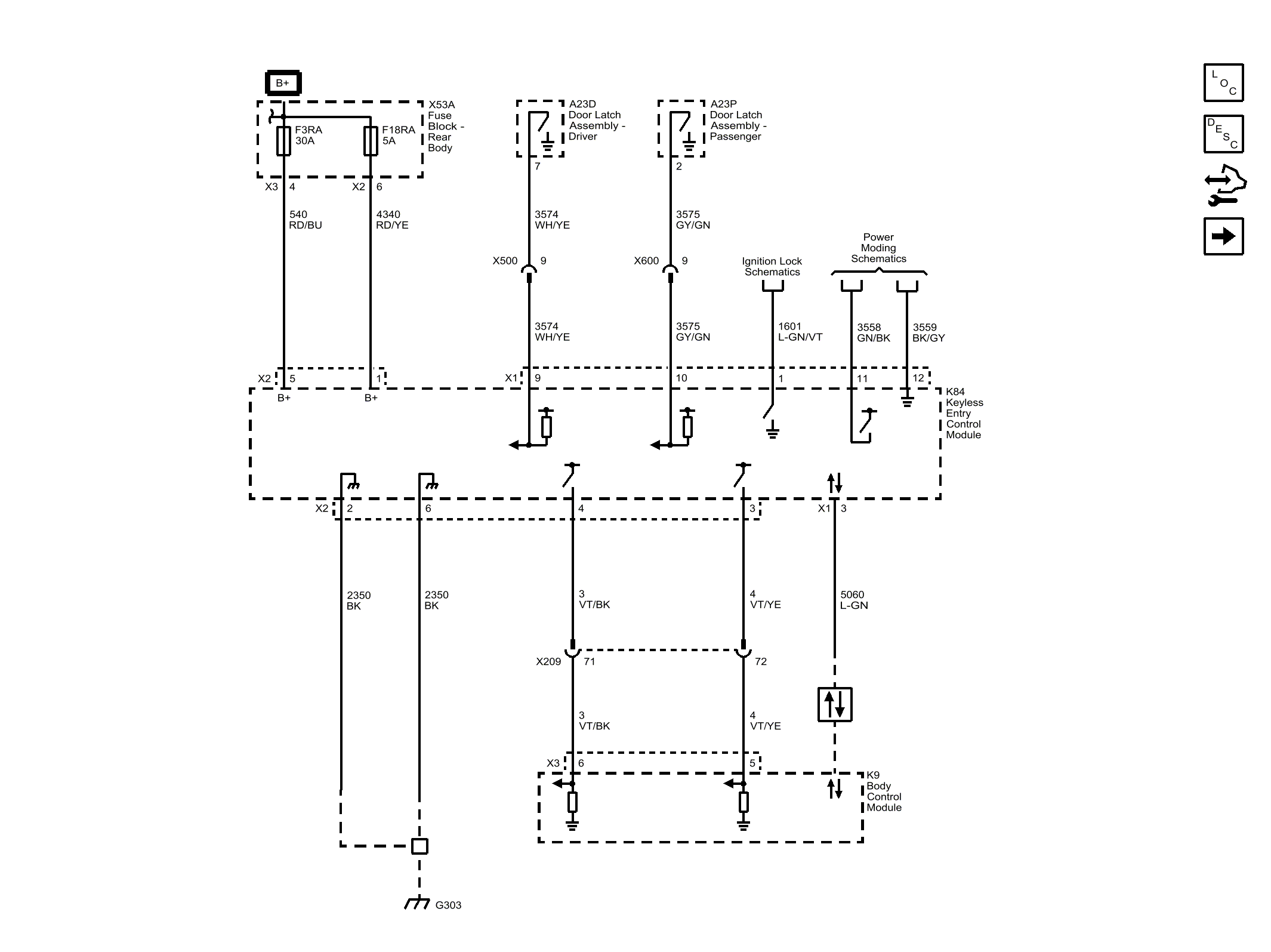

Fig 1: Power, Ground and Data Communications Wiring Schematic

GM3554222

Courtesy of GENERAL MOTORS COMPANY
