Rear Compartment Lid Latch Replacement

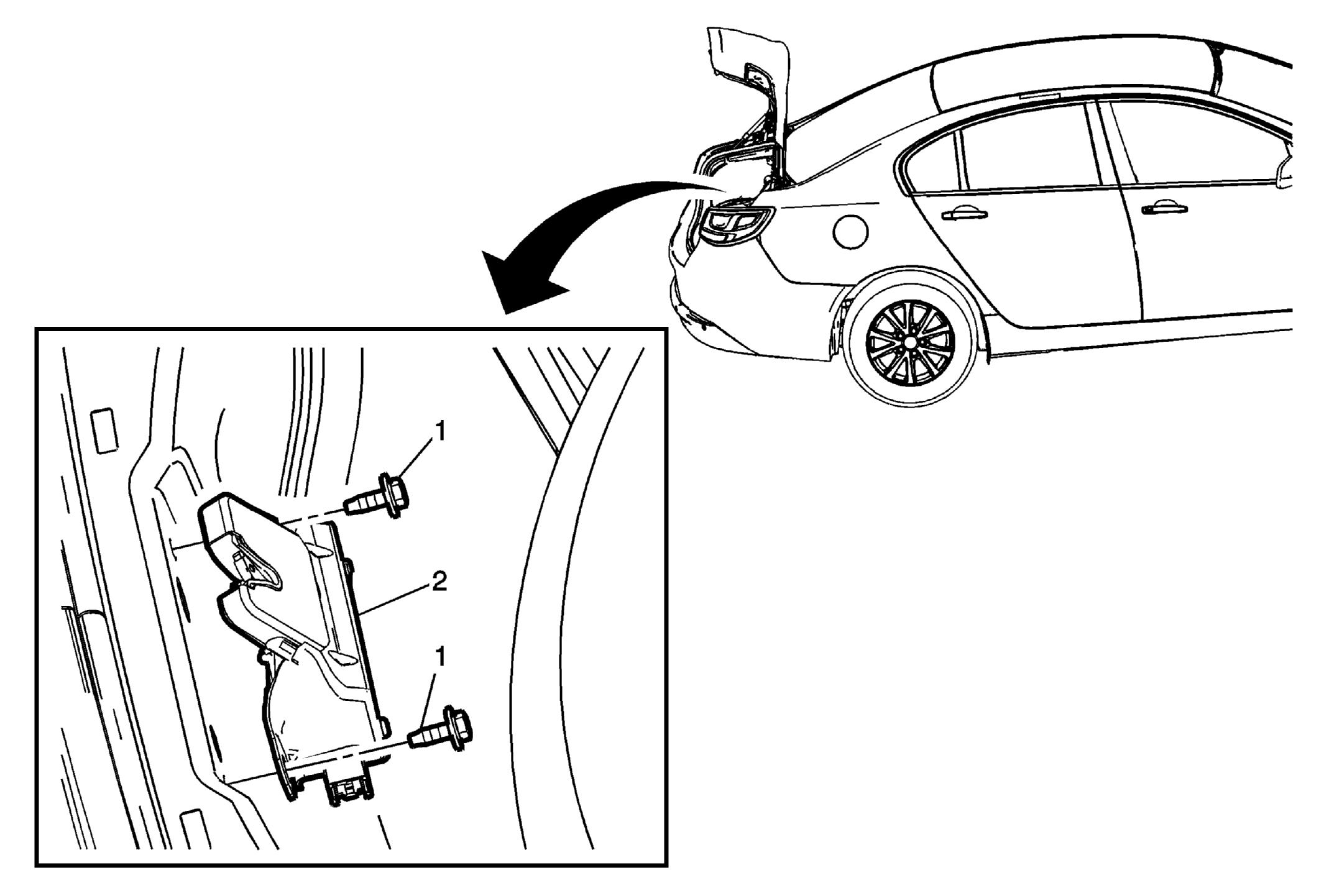

Fig 1: Rear Compartment Lid Latch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment lid carpet. Refer to Rear Compartment Lid Carpet Replacement
1	Rear Compartment Lid Latch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 (80 lb in)
2	Rear Compartment Lid Latch Procedure Disconnect the electrical connector if equipped. Disconnect the rear compartment lid latch release cable if equipped.

Callout

Component Name

Preliminary Procedure
Remove the rear compartment lid carpet. Refer to Rear Compartment Lid Carpet Replacement

Rear Compartment Lid Latch Bolt (Qty: 2)

CAUTION:

Tighten
9 (80 lb in)

Rear Compartment Lid Latch

Procedure
