Defogger Wiring Schematics: Defogger

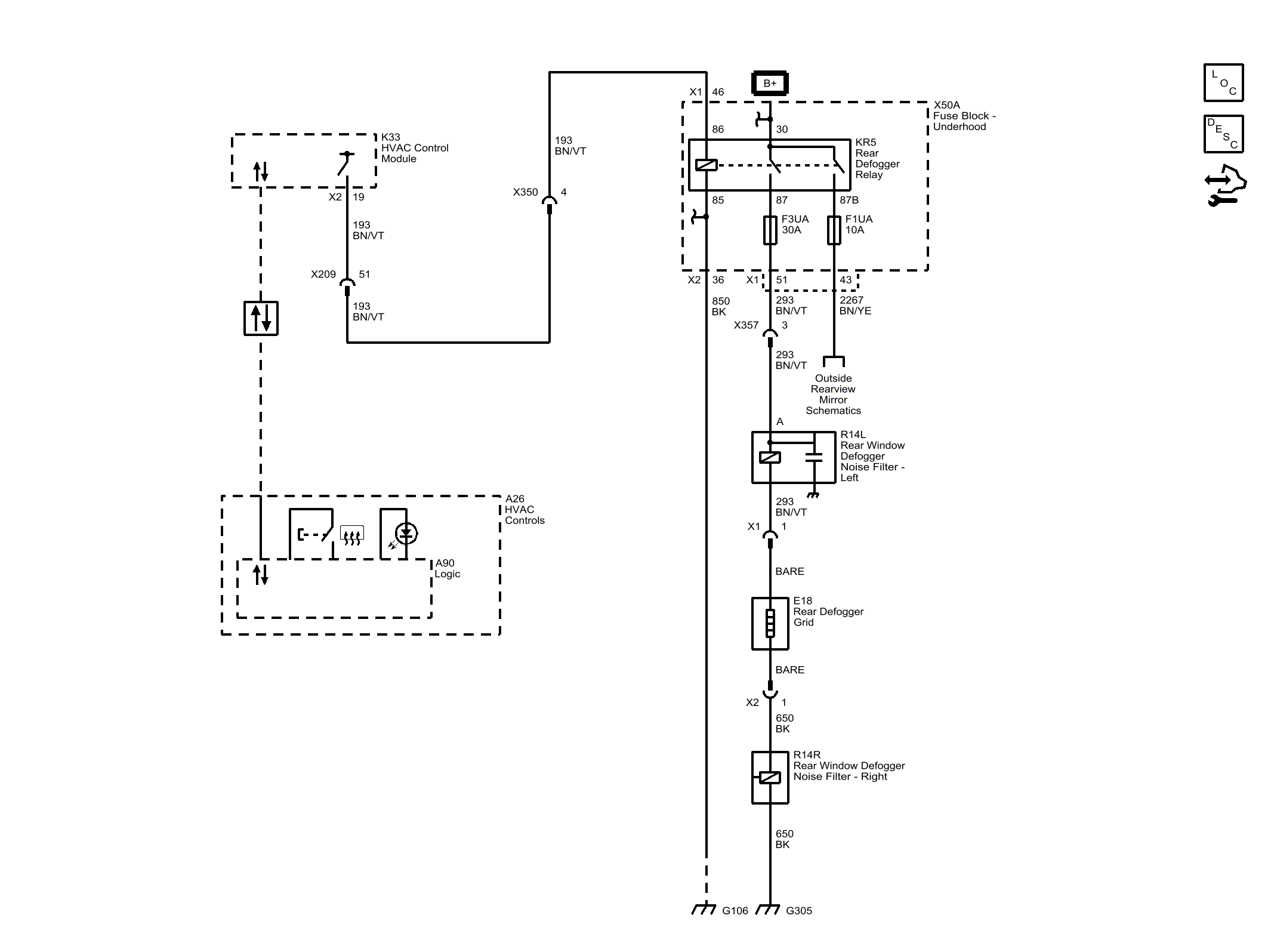

Fig 1: Defogger Wiring Schematic
GM3554045Courtesy of GENERAL MOTORS COMPANY
