Antilock Brake System Wiring Schematics
›
Stability Controls
Stability Controls

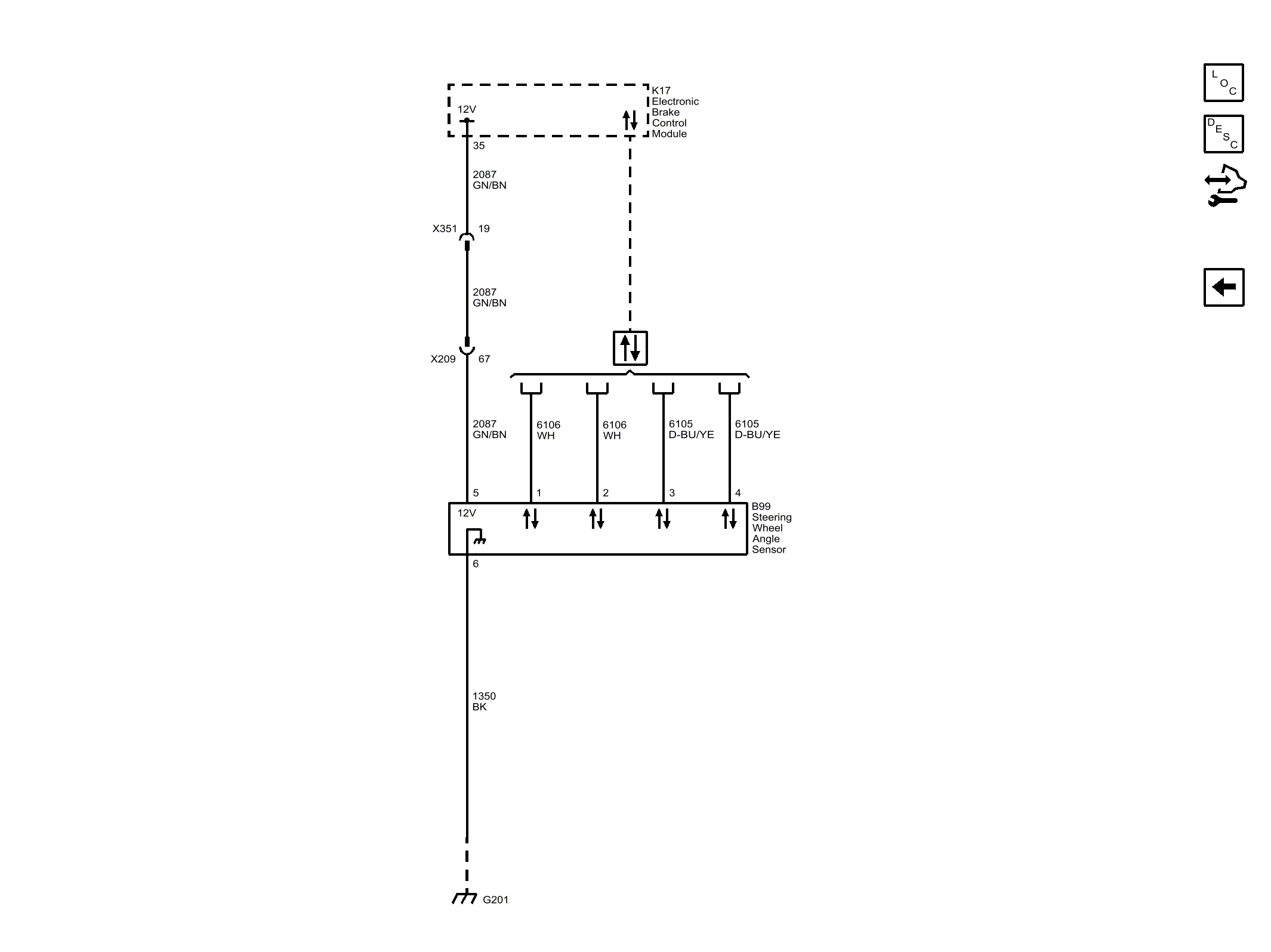

Fig 1: Stability Controls Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
