Fan Control Module Replacement
Fan Control Module Replacement

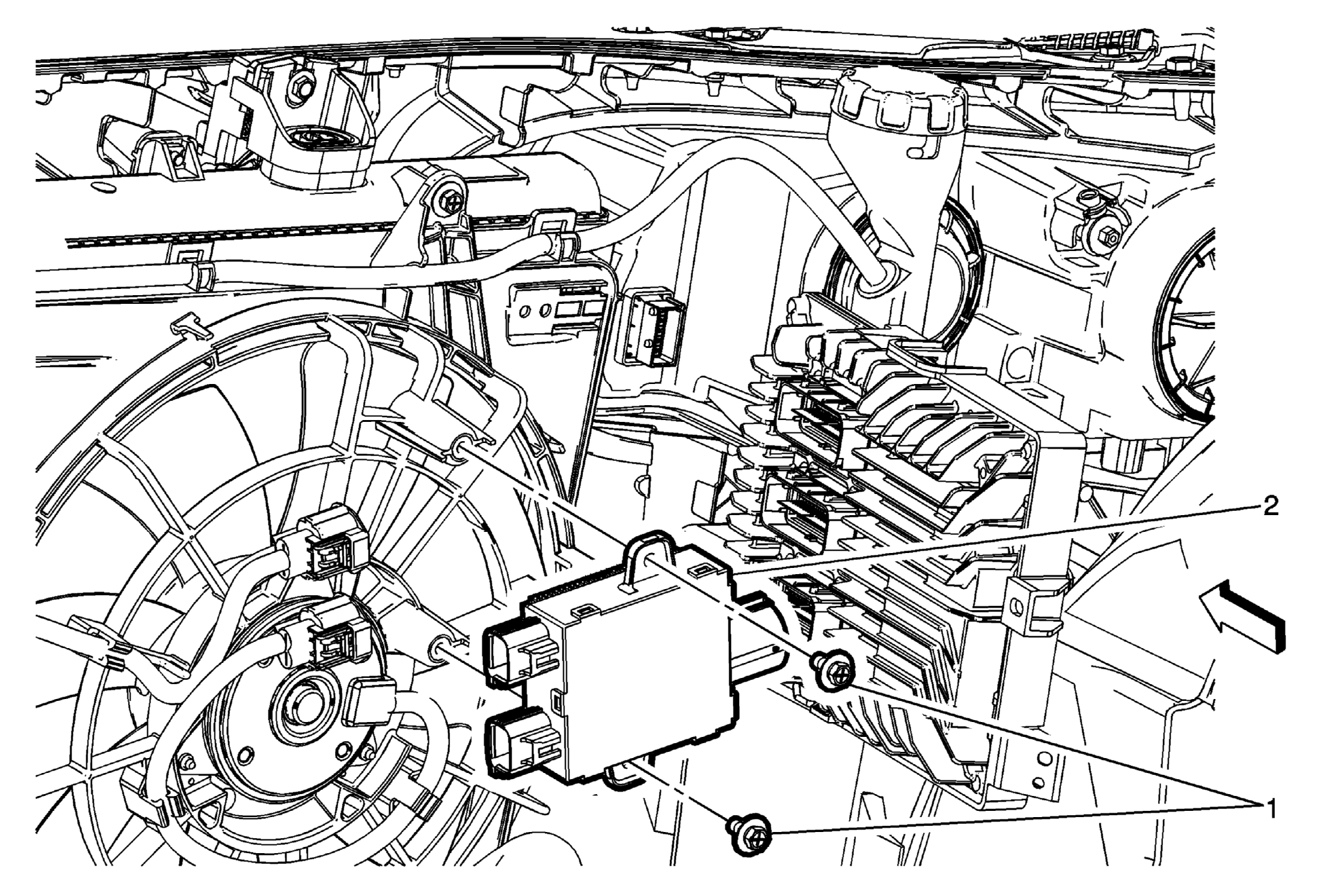

| Callout | Component Name |
|---|---|
| 1 | Fan Control Module Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 5 (44 lb in) |
| 2 | Fan Control Module Procedure Disconnect the electrical connectors. |
