Installation Procedure

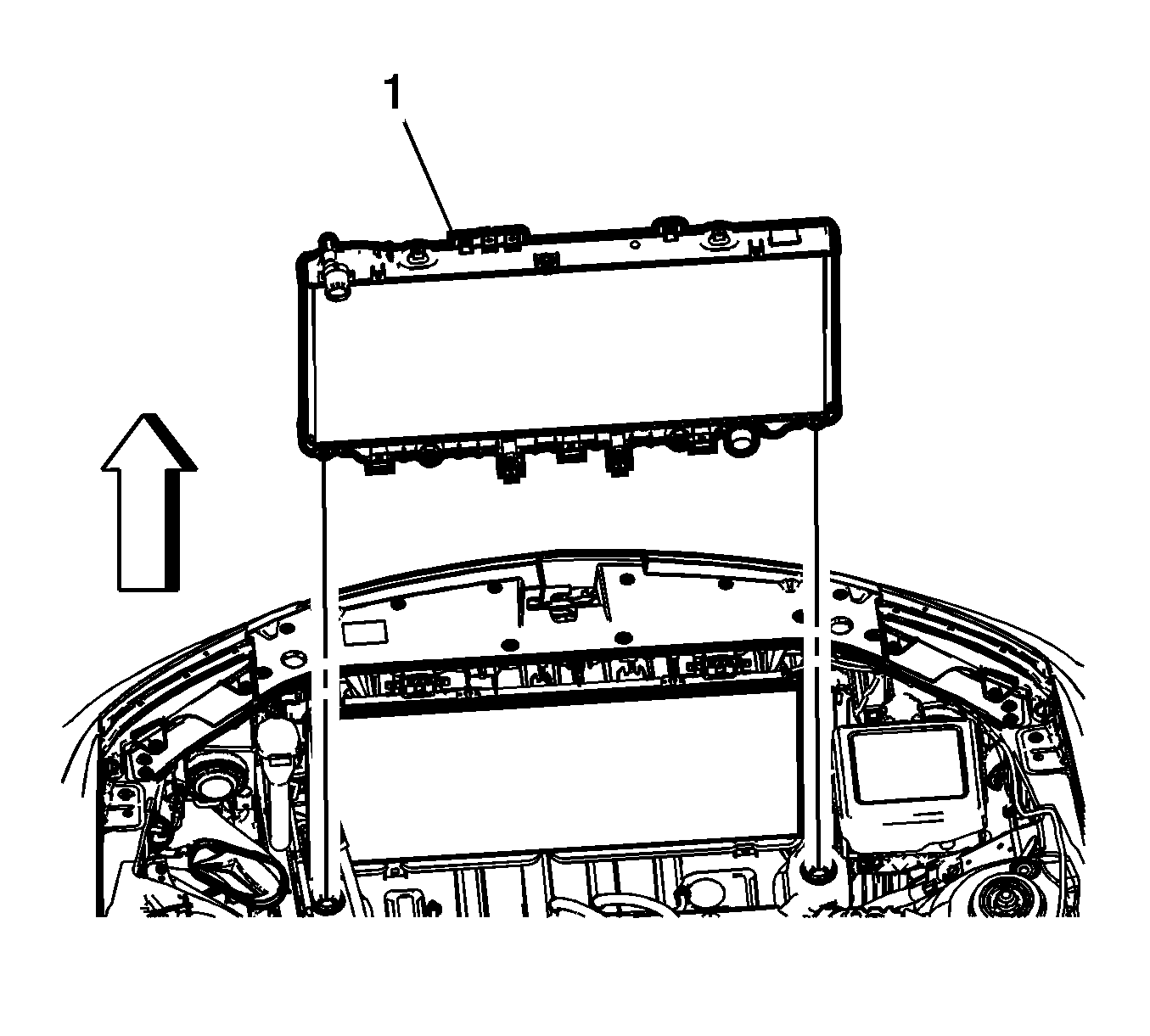

    Fig 1: Radiator
    GM2968865Courtesy of GENERAL MOTORS COMPANY
  1. Install the radiator (1) into the lower radiator mounts.

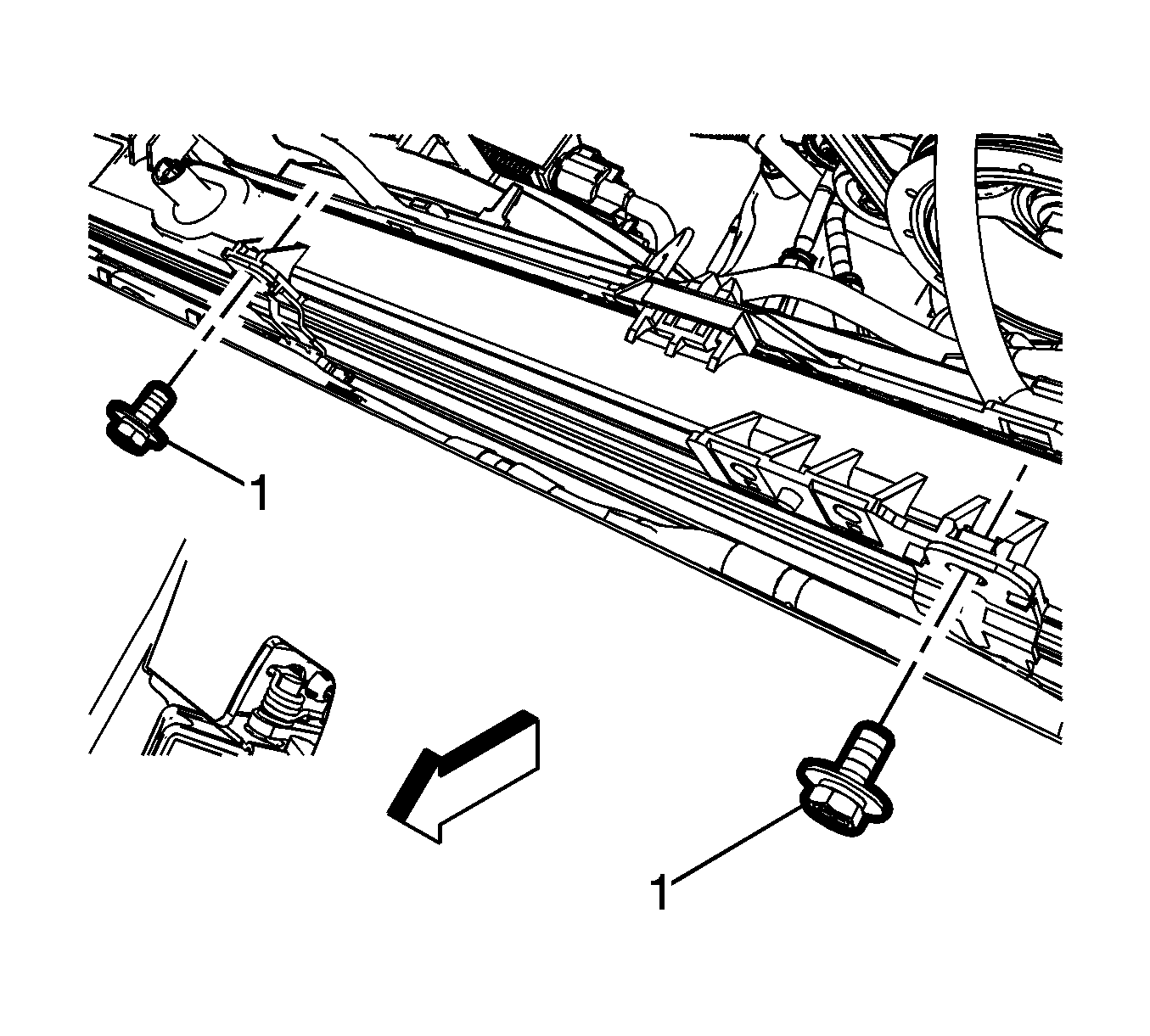

    2. Fig 2: A/C Condenser Bolts - Upper
    GM3239555Courtesy of GENERAL MOTORS COMPANY
  2. Install the two upper A/C condenser bolts (1). Refer to Air Conditioning Condenser Replacement .

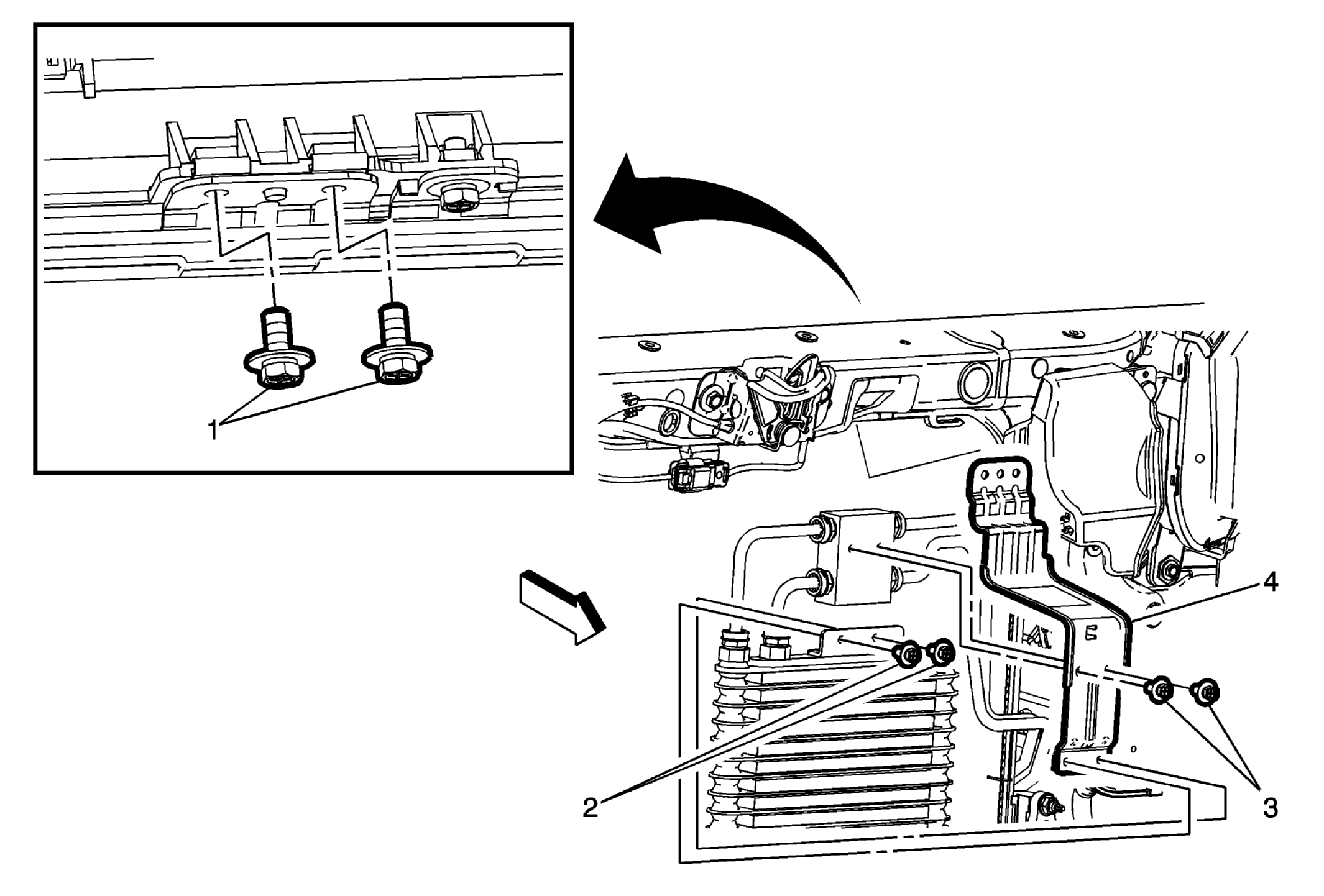

    3. Fig 3: Transmission Fluid Auxiliary Cooler Upper Bracket Bolts
    GM3239610Courtesy of GENERAL MOTORS COMPANY
  3. Install transmission fluid auxiliary cooler upper bracket bolts (1). Refer to Transmission Fluid Auxiliary Cooler Upper Bracket Replacement .

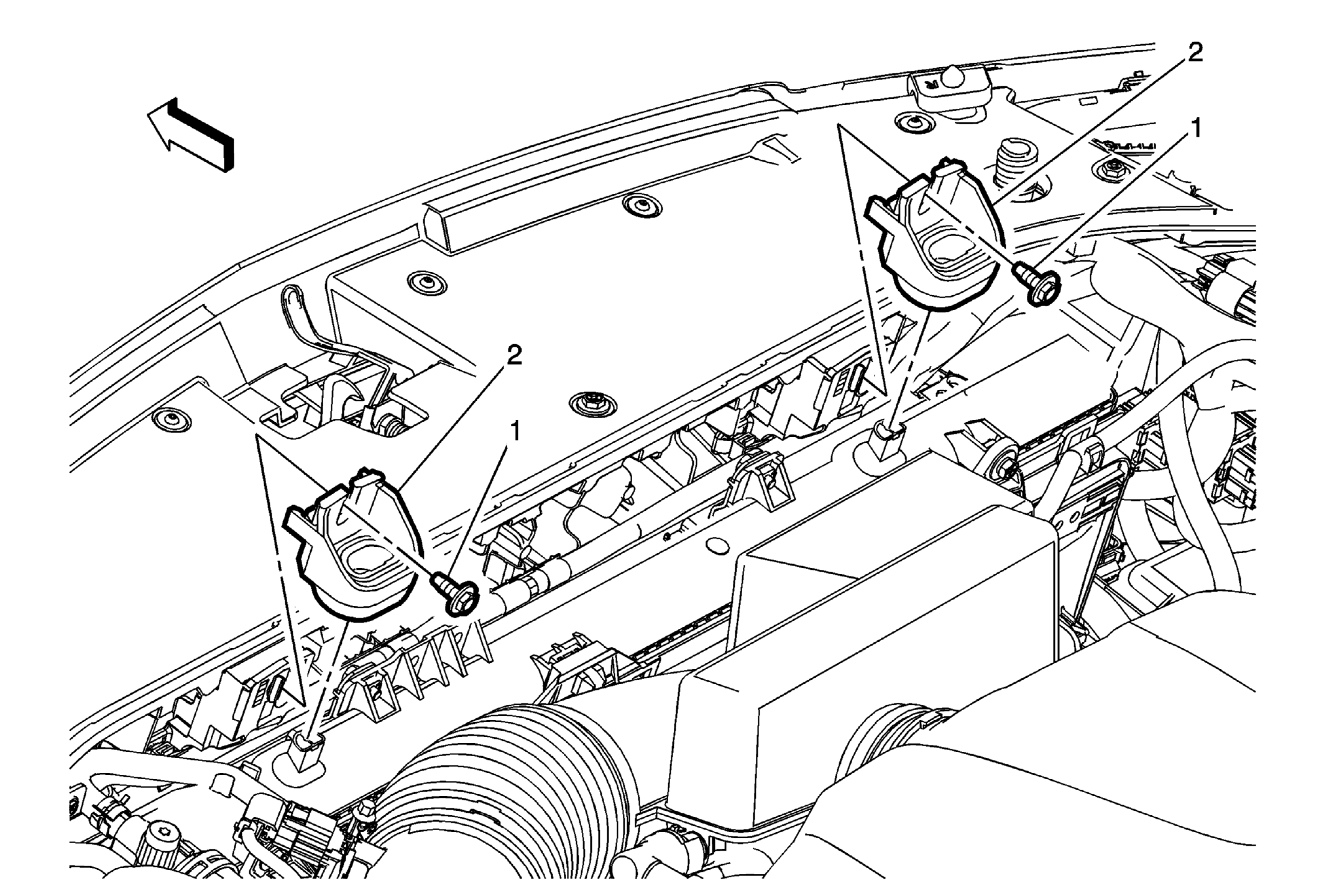

    4. Fig 4: Radiator Upper Mounts & Bolts
    GM3226265Courtesy of GENERAL MOTORS COMPANY
  4. Install the radiator upper mounts (2). Refer to Radiator Upper Mount Replacement .

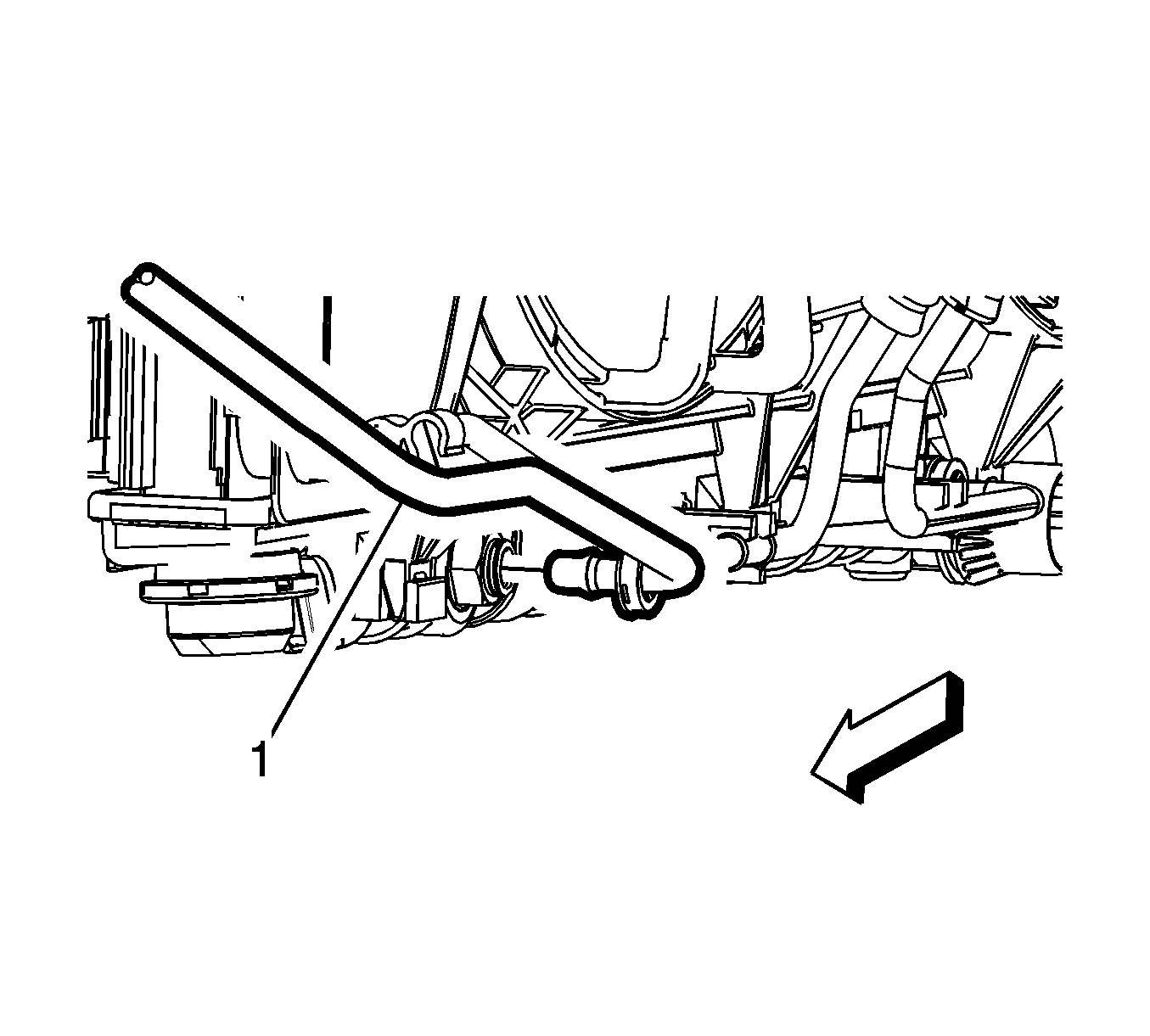

    5. Fig 5: Transmission Fluid Auxiliary Cooler Inlet Rear Pipe
    GM3239606Courtesy of GENERAL MOTORS COMPANY
  5. Install the transmission fluid auxiliary cooler inlet rear pipe (1) to the radiator. Refer to Transmission Fluid Auxiliary Cooler Inlet Rear Pipe Replacement .

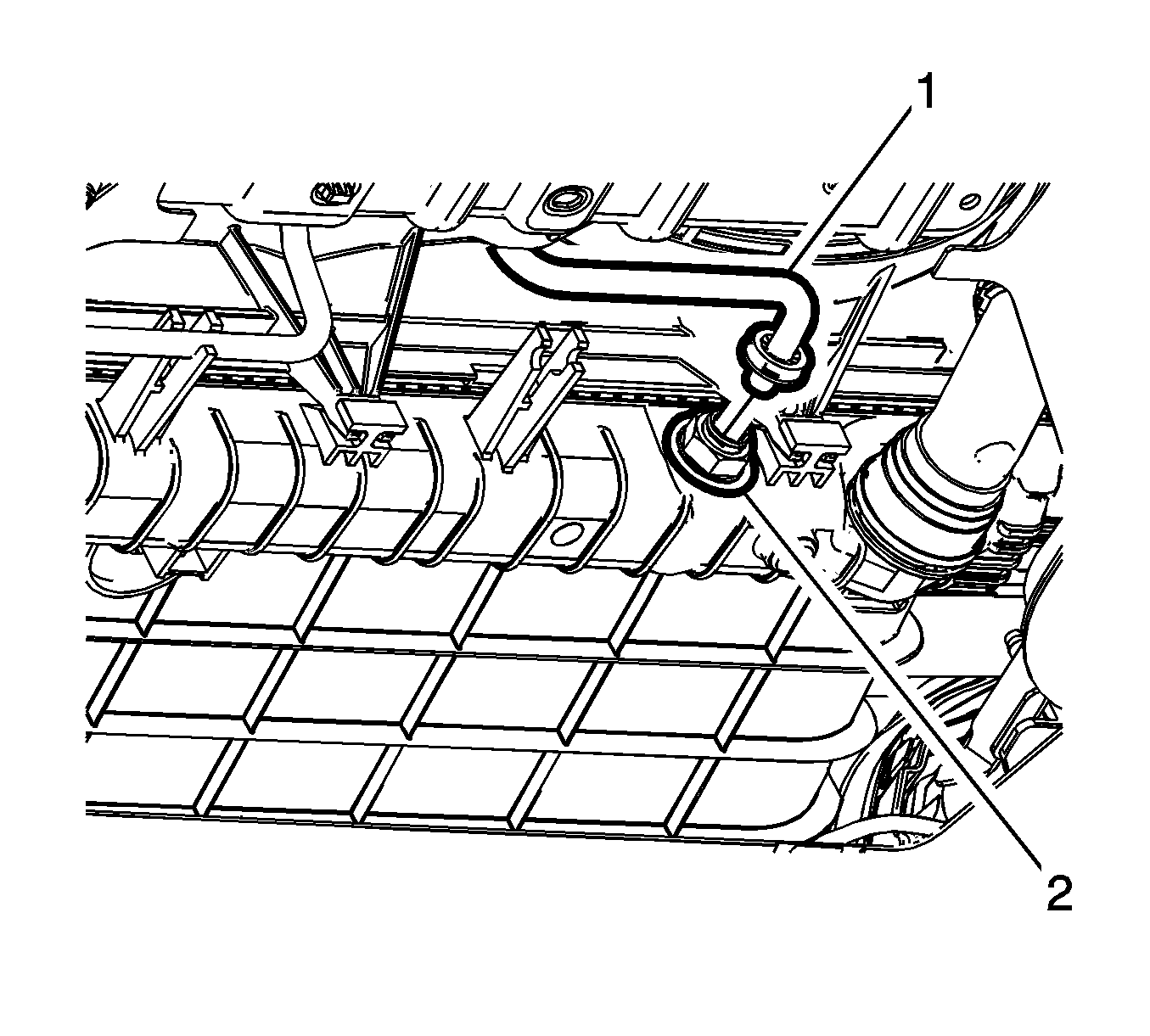

    6. Fig 6: Transmission Fluid Cooler Inlet Pipe
    GM3238820Courtesy of GENERAL MOTORS COMPANY
  6. Install the transmission fluid cooler inlet pipe (1) to the radiator. Refer to Transmission Fluid Cooler Inlet Pipe Replacement .

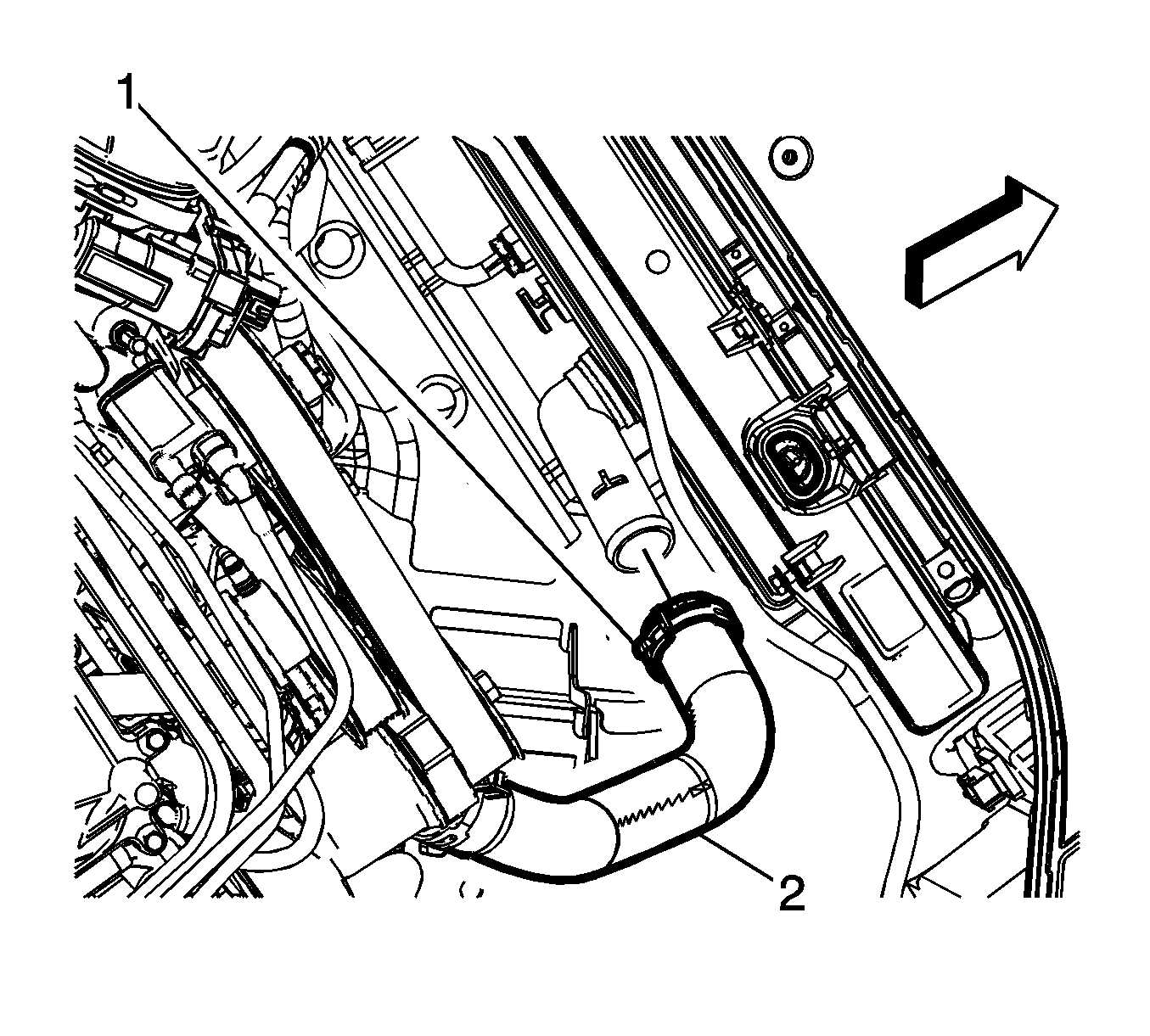

    7. Fig 7: Radiator Outlet Hose & Clamp
    GM3272429Courtesy of GENERAL MOTORS COMPANY
  7. Install the radiator outlet hose (2) to the radiator outlet pipe. Refer to Radiator Outlet Hose Replacement .

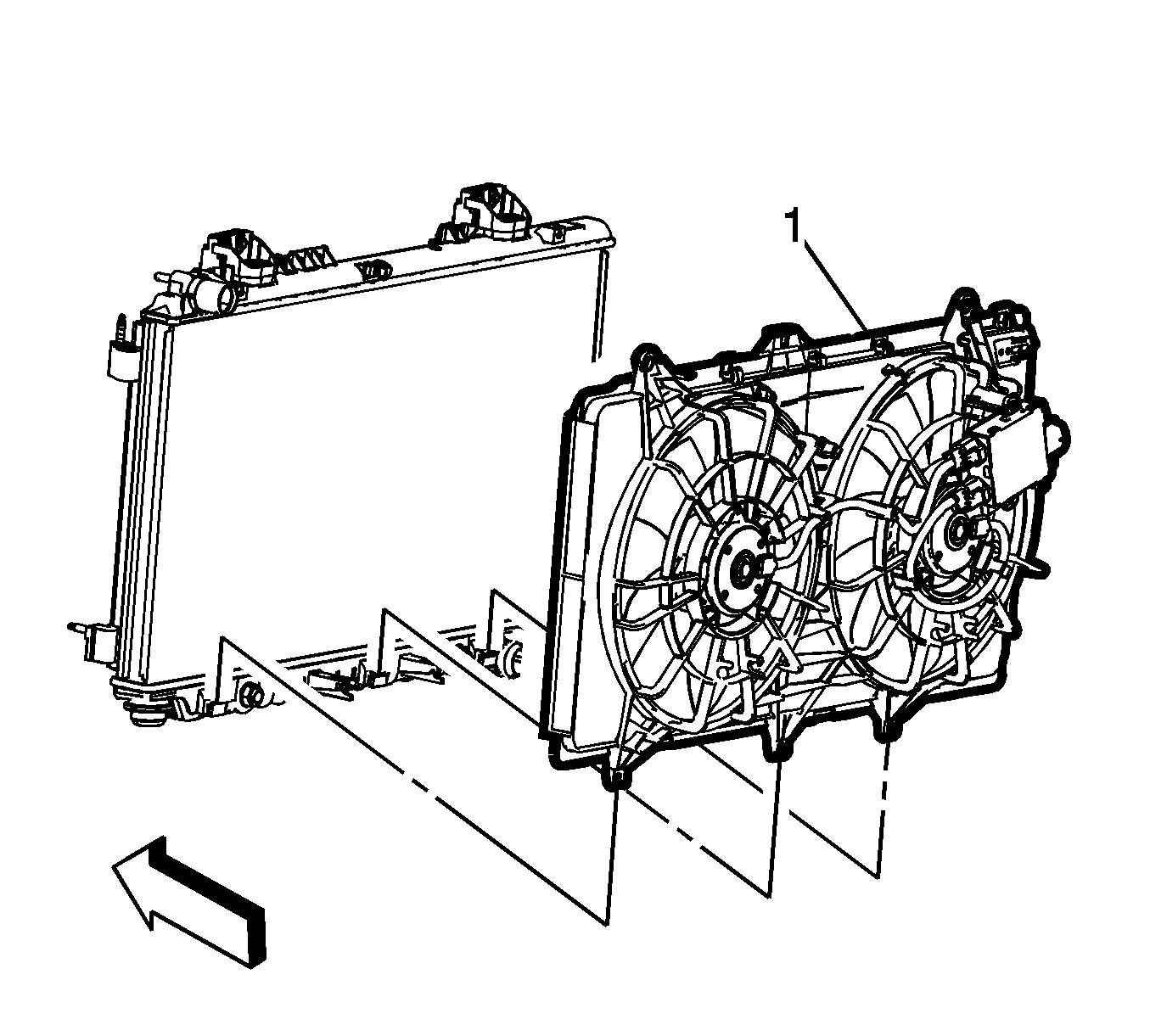

    8. Fig 8: Engine Coolant Fan Shroud
    GM2968535Courtesy of GENERAL MOTORS COMPANY
  8. Install the engine coolant fan shroud (1) to the radiator. Refer to Engine Coolant Fan Shroud Replacement .

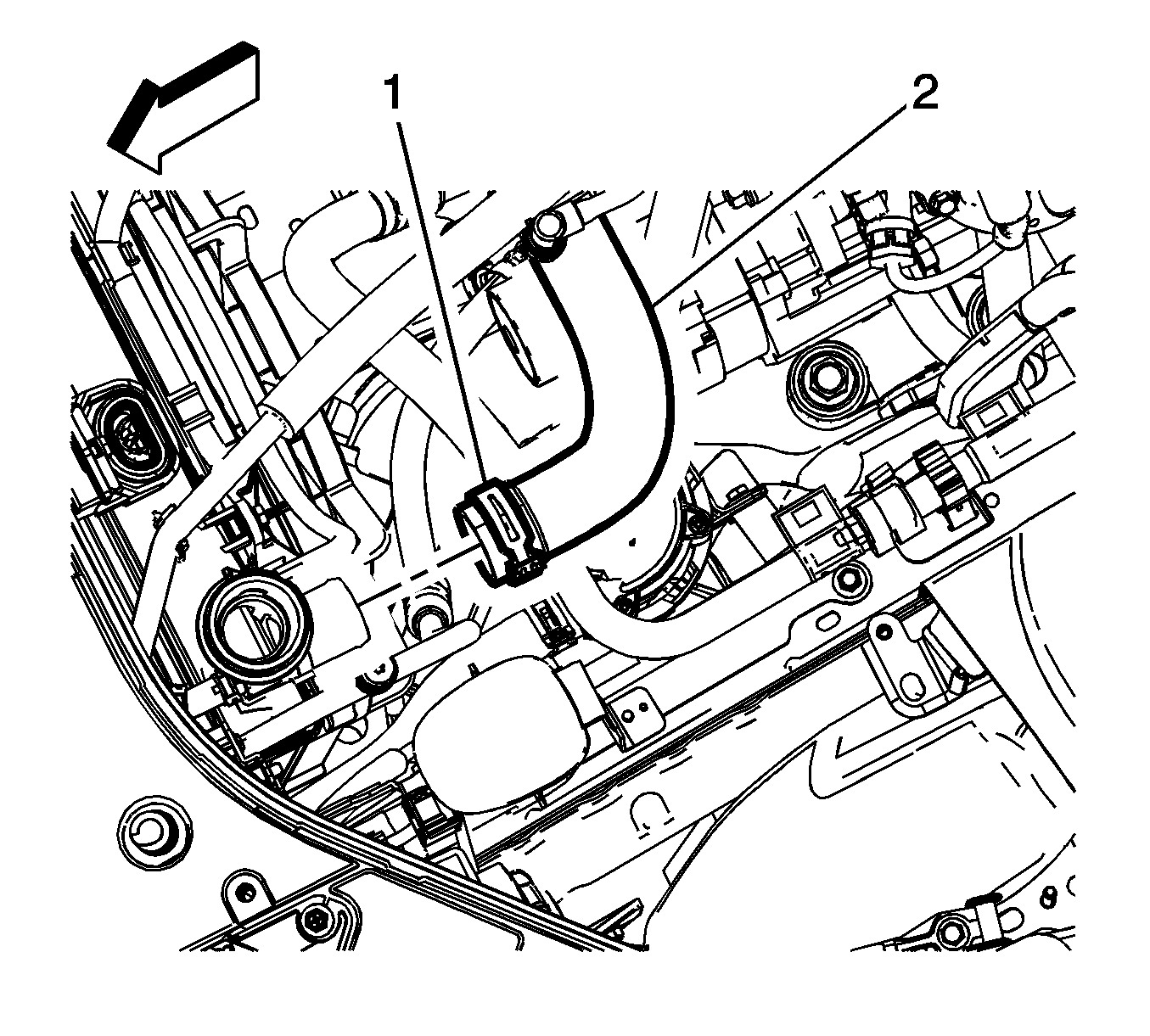

    9. Fig 9: Radiator Inlet Hose & Clamp
    GM3271058Courtesy of GENERAL MOTORS COMPANY
  9. Install the radiator inlet hose (2) to the radiator. Refer to Radiator Inlet Hose Replacement .

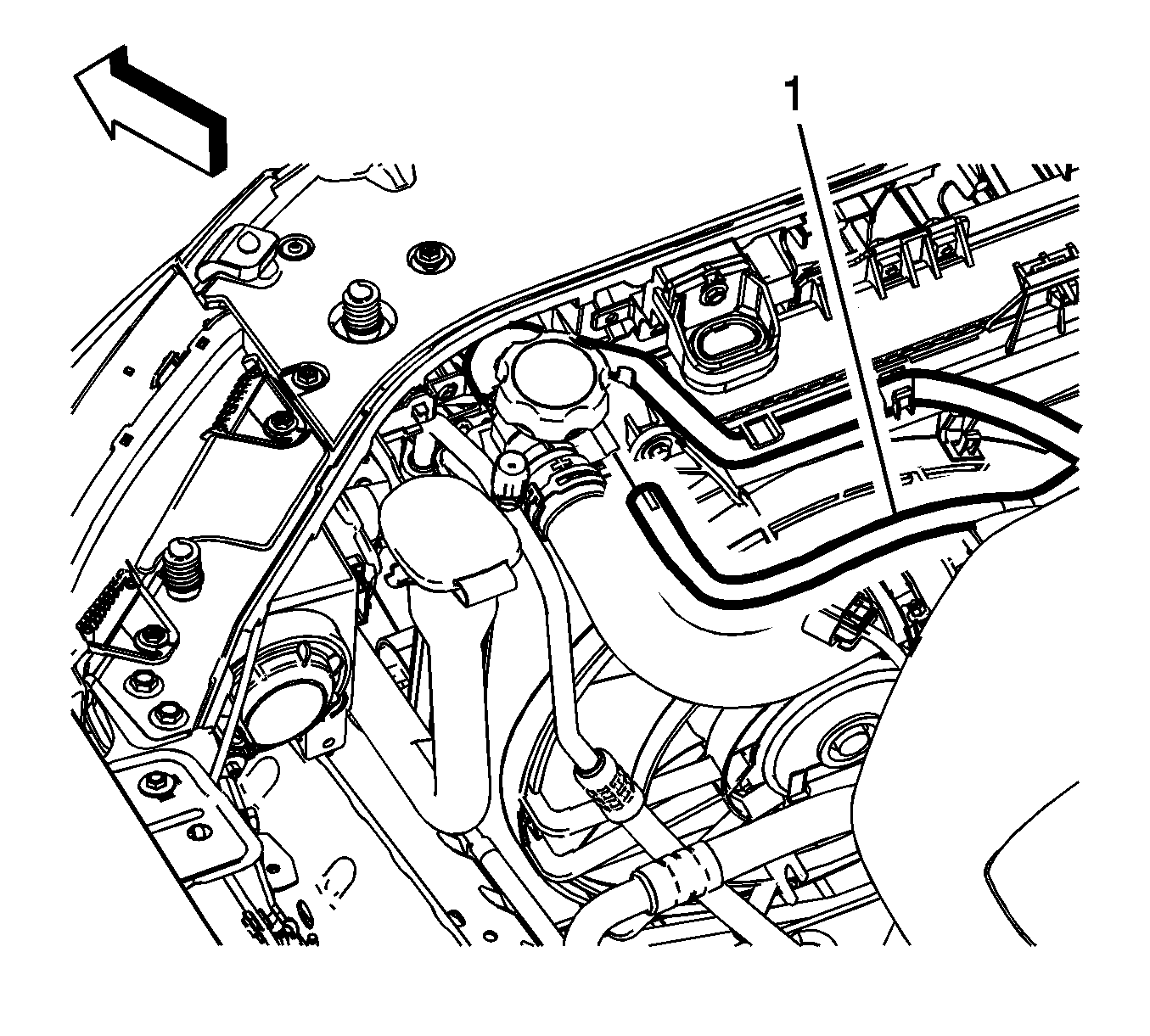

    10. Fig 10: Coolant Recovery Hose
    GM3412585Courtesy of GENERAL MOTORS COMPANY
  10. Install the engine coolant recovery reservoir hose (1) to the radiator. Refer to Coolant Recovery Reservoir Hose Replacement .

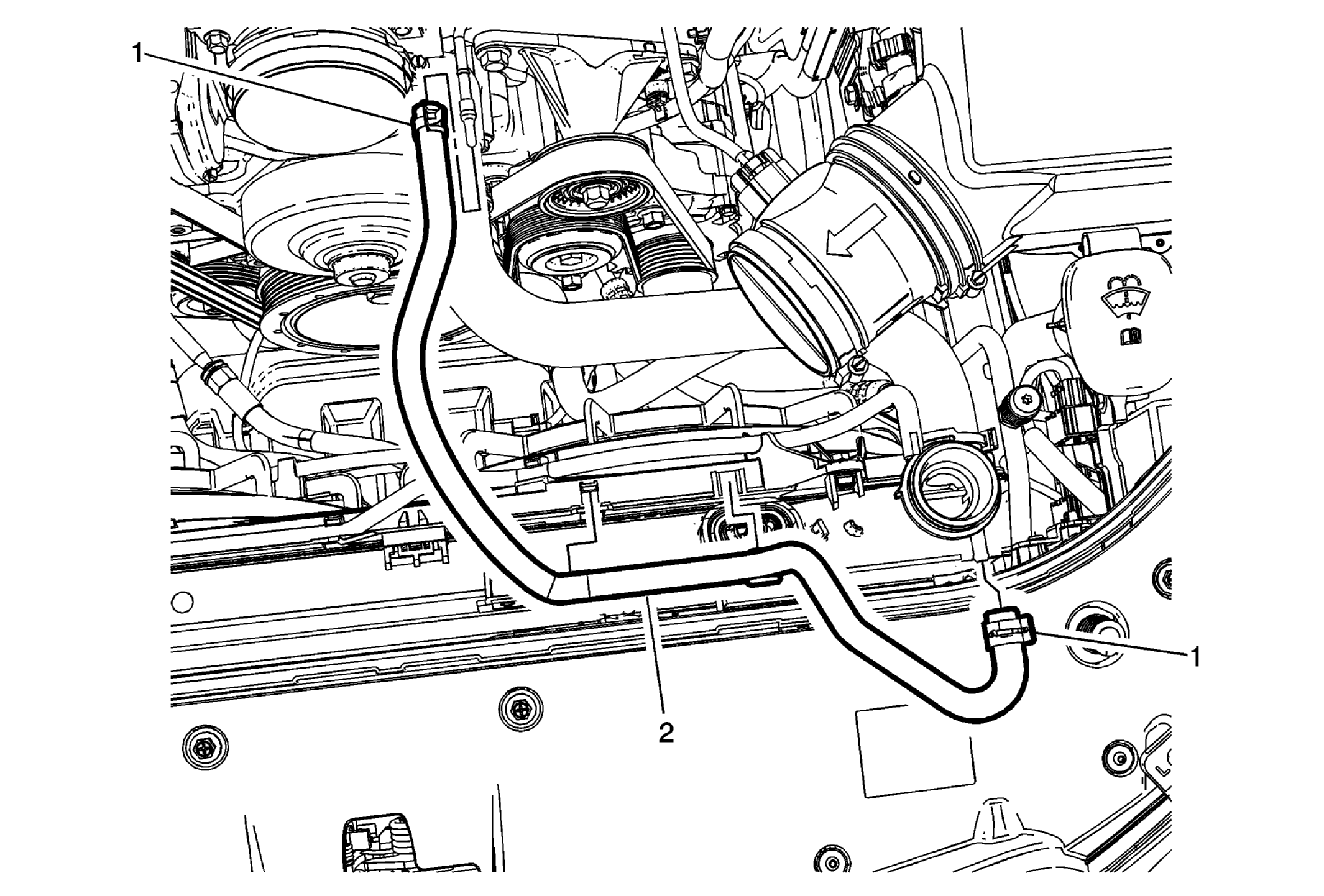

    11. Fig 11: Engine Coolant Air Bleed Hose & Clamps
    GM3281745Courtesy of GENERAL MOTORS COMPANY
  11. Install the engine coolant air bleed hose (2) to the radiator. Refer to Engine Coolant Air Bleed Hose Replacement .
  12. Raise and support vehicle. Refer to Lifting and Jacking the Vehicle .

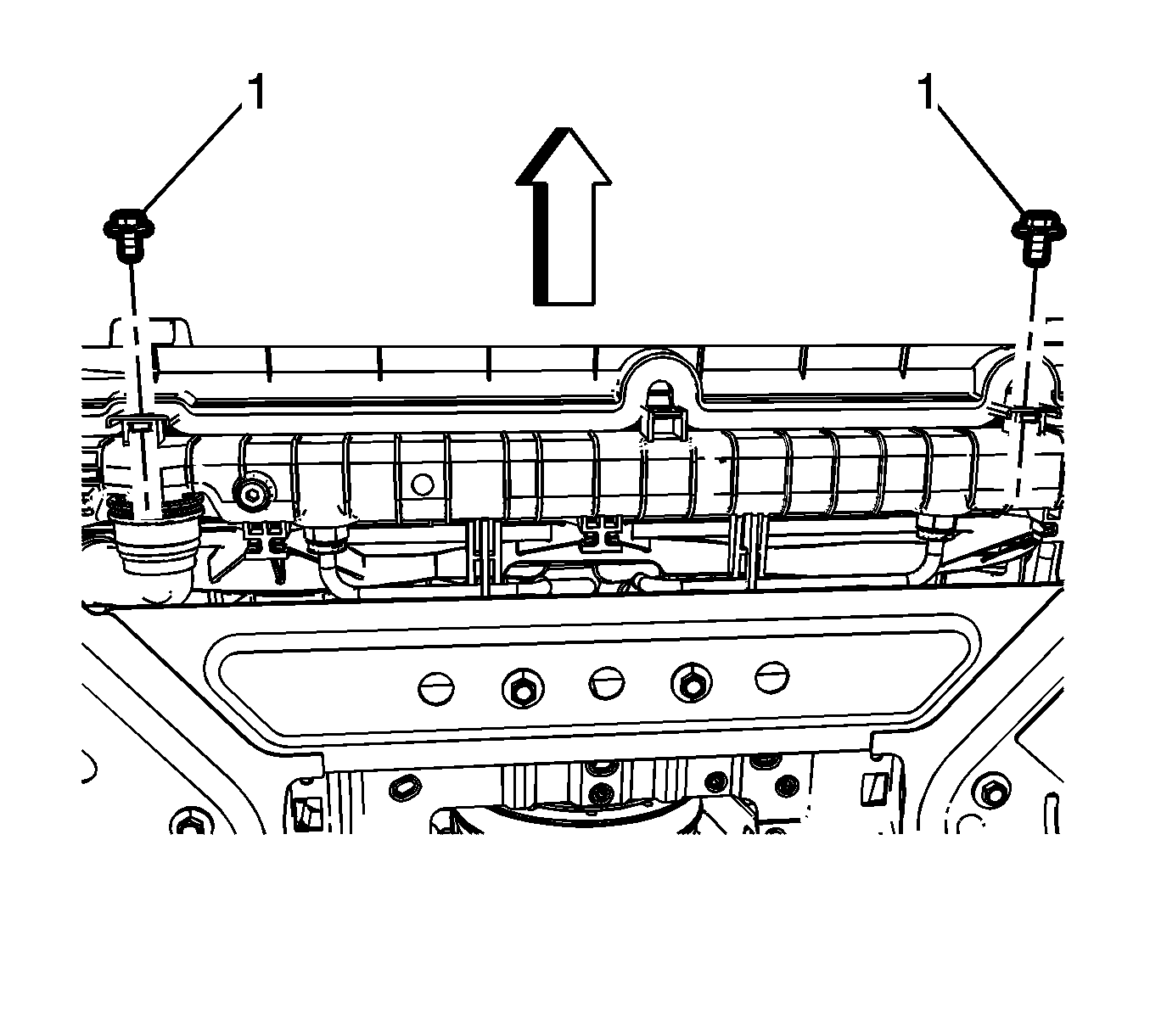

    13. Fig 12: A/C Condenser Bolt - Lower Right Side
    GM3239554Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Only install the right side A/C condenser bolt. The left side bolt will be installed with the transmission fluid cooler.

  13. Install the lower A/C condenser bolt (1). Refer to Air Conditioning Condenser Replacement .

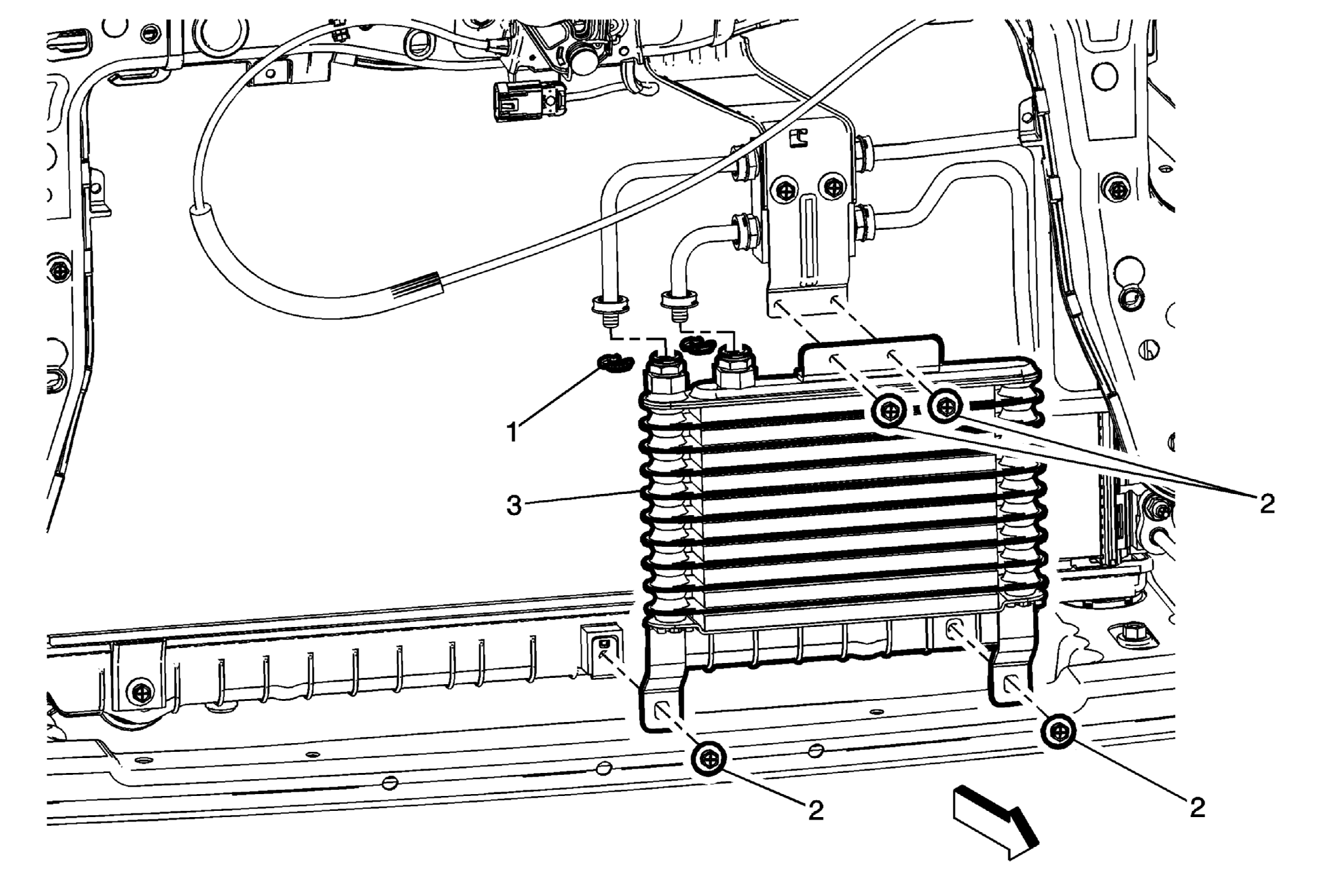

    14. Fig 13: Transmission Fluid Cooler Lower Bolts
    GM3415941Courtesy of GENERAL MOTORS COMPANY
  14. Install the transmission fluid cooler lower bolts (2). Refer to Transmission Fluid Cooler Replacement .

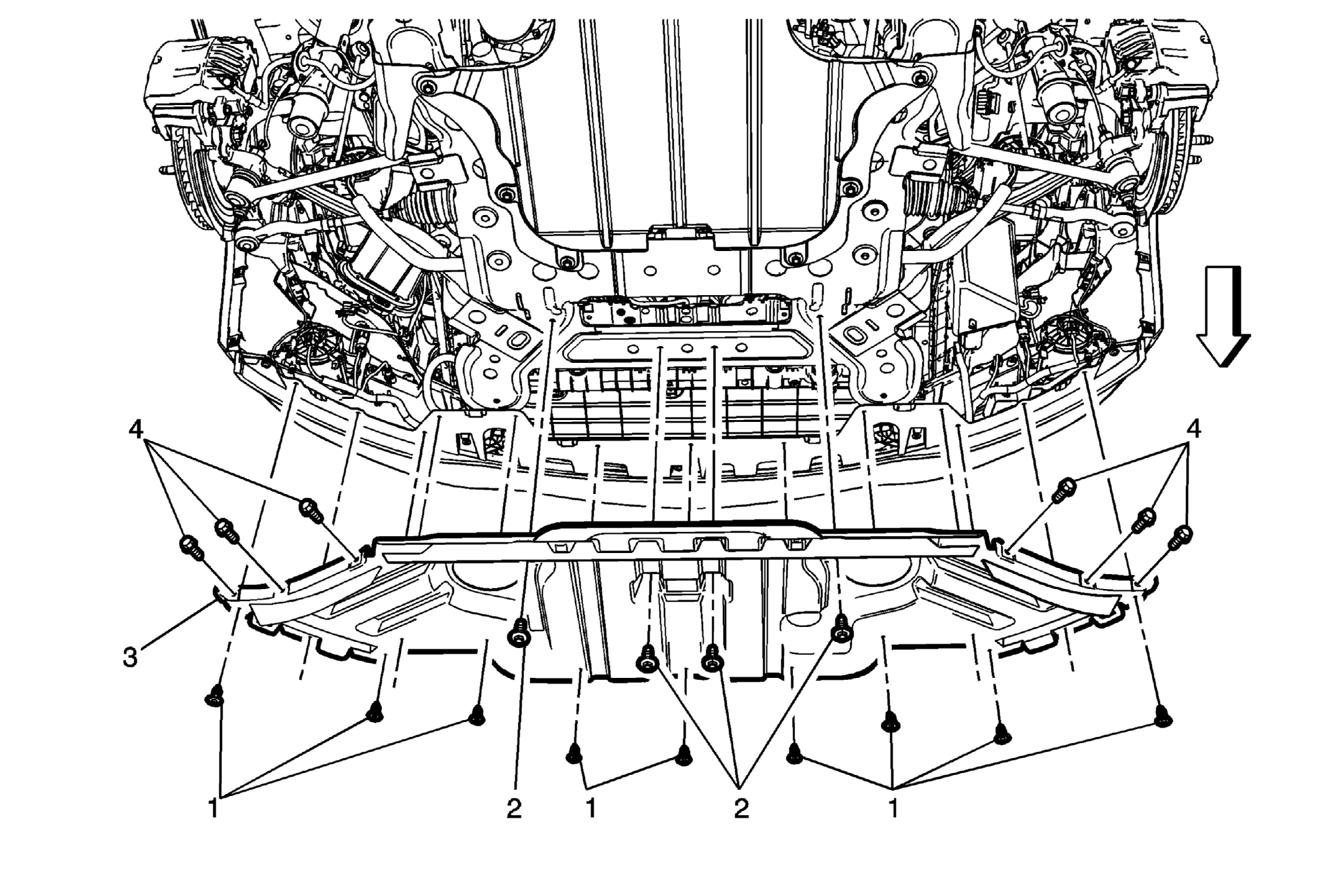

    15. Fig 14: Front Bumper Fascia Extension
    GM2910590Courtesy of GENERAL MOTORS COMPANY
  15. Install the front bumper fascia extension (3). Refer to Front Bumper Fascia Extension Replacement .
  16. Lower the vehicle.
  17. Fill the cooling system. Refer to Cooling System Draining and Filling .
    18. WARNING:

    Refer to Battery Disconnect Warning .

  18. Connect the battery ground cable to the battery. Refer to Battery Negative Cable Disconnection and Connection .
  19. Inspect cooling system for leaks.
