Installation Procedure

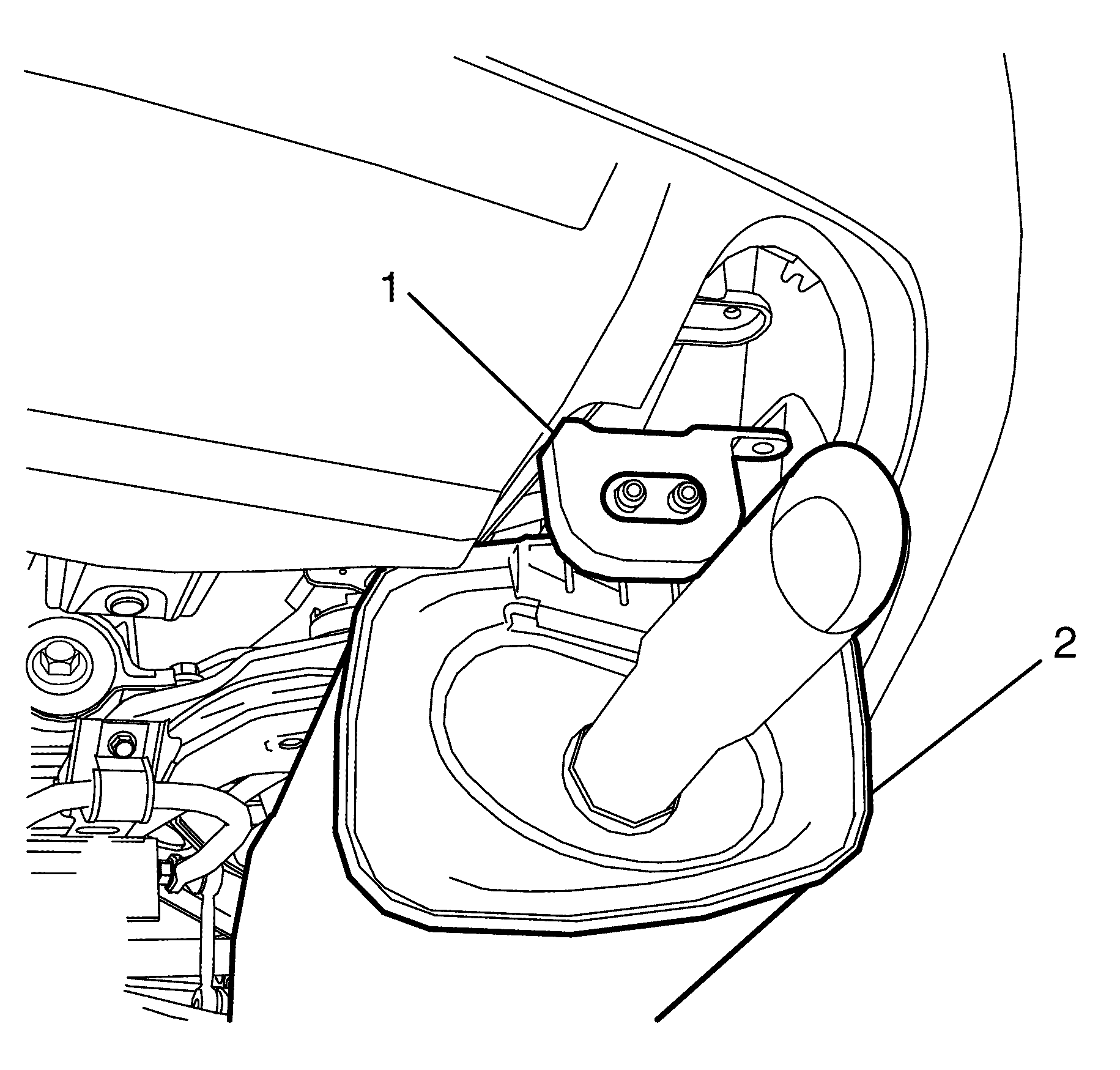

    Fig 1: Identifying Rear Insulator Hanger To Rear Muffler
    GM1965575Courtesy of GENERAL MOTORS COMPANY
  1. Install the rear muffler hanger bracket (1) to the rear muffler (2).
    2. Fig 2: Rear Exhaust Isolator Hanger Brackets & Fasteners
    GM2968576Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the fasteners (1) to the rear muffler hanger bracket (2) and tighten to 22 (16 lb ft).
