Module Power, Ground, and Serial Data

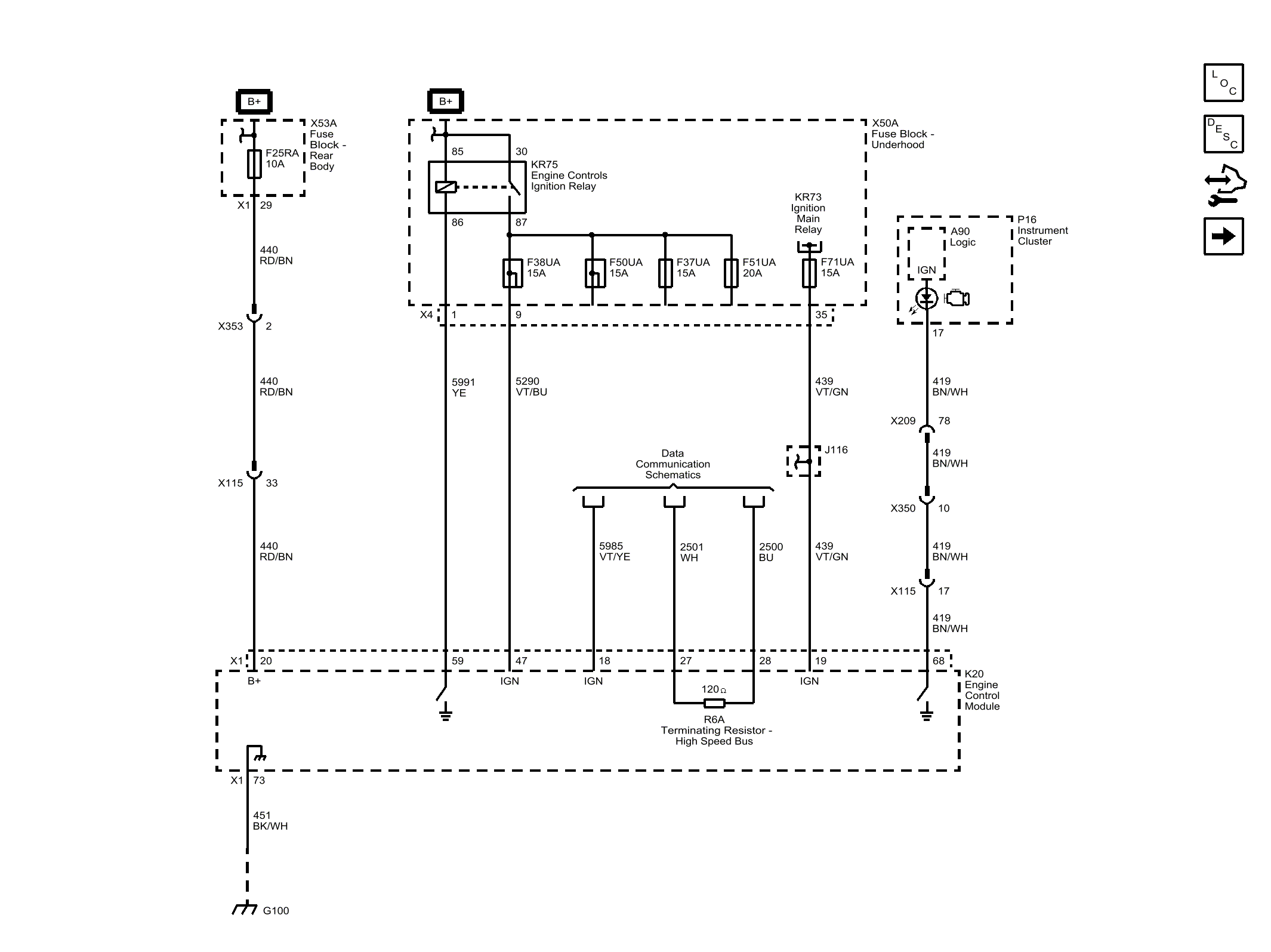

Fig 1: Module Power, Ground, and Serial Data Wiring Schematic
GM3554140Courtesy of GENERAL MOTORS COMPANY
