Data Communication Wiring Schematics
›
Chassis Expansion BUS
Chassis Expansion BUS

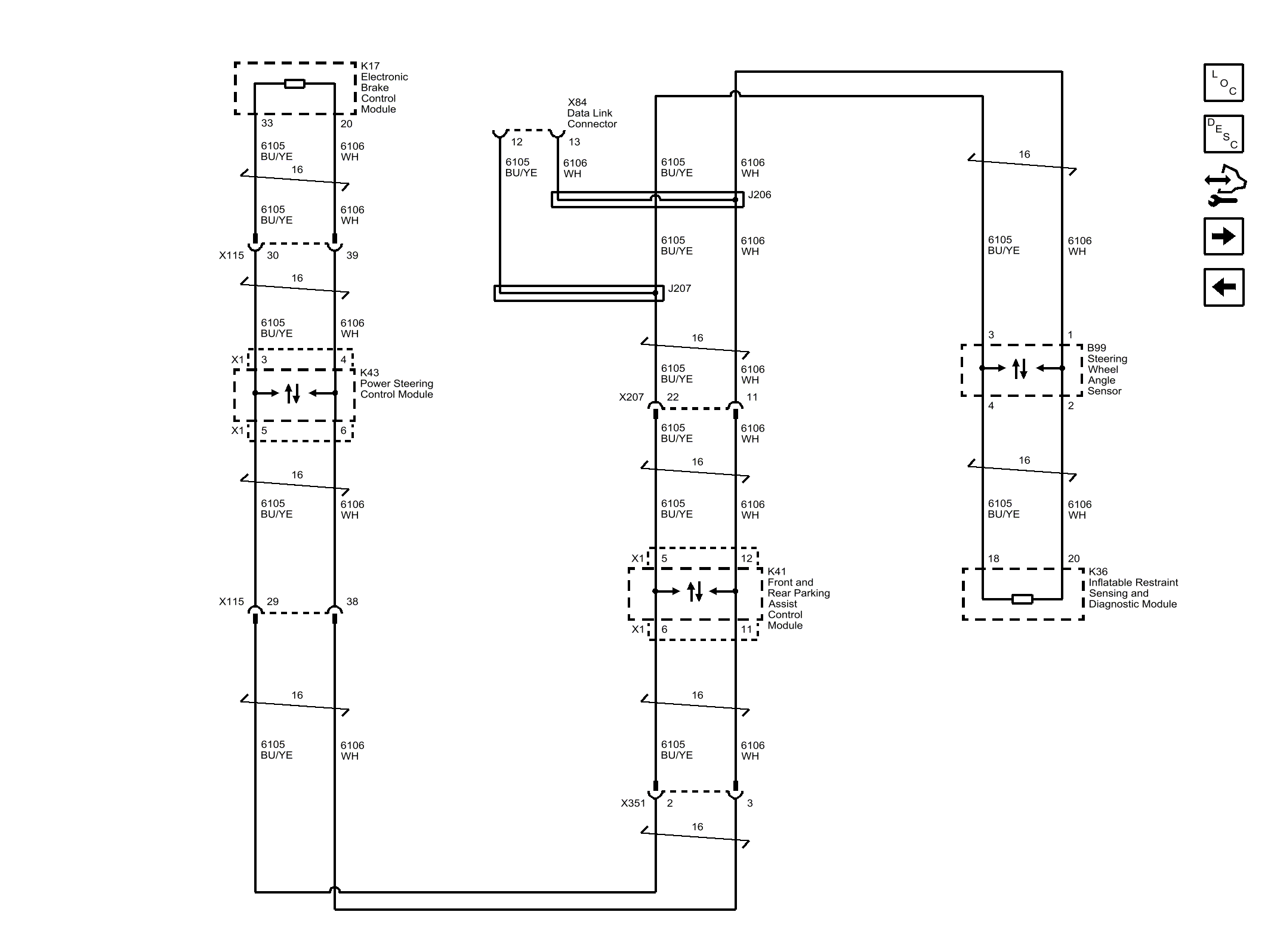

Fig 1: Chassis Expansion BUS Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
