Data Communication Wiring Schematics
›
Communications Enable
Communications Enable

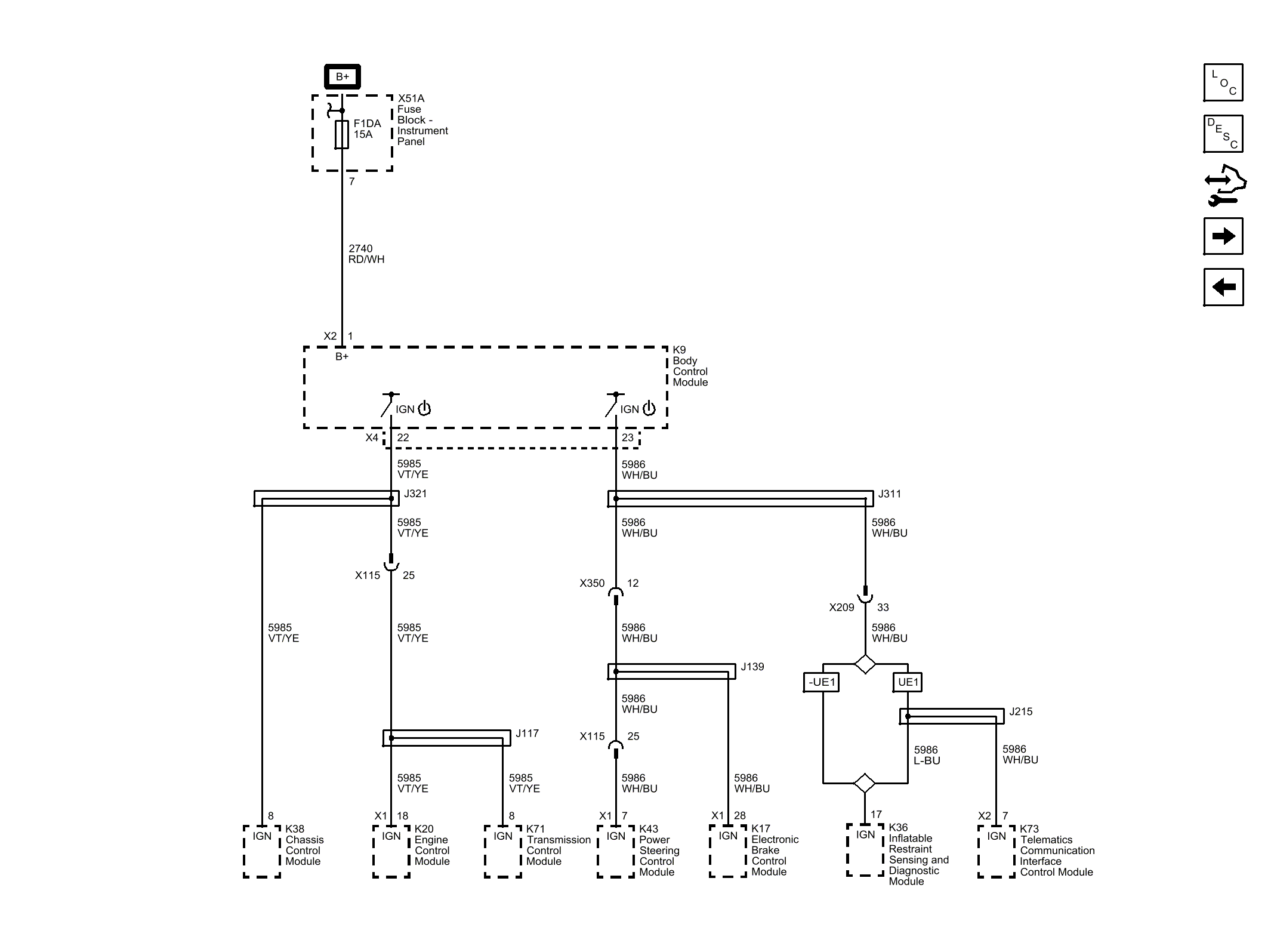

Fig 1: Communications Enable Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
