Steering Column Upper Trim Cover Replacement
Steering Column Upper Trim Cover Replacement

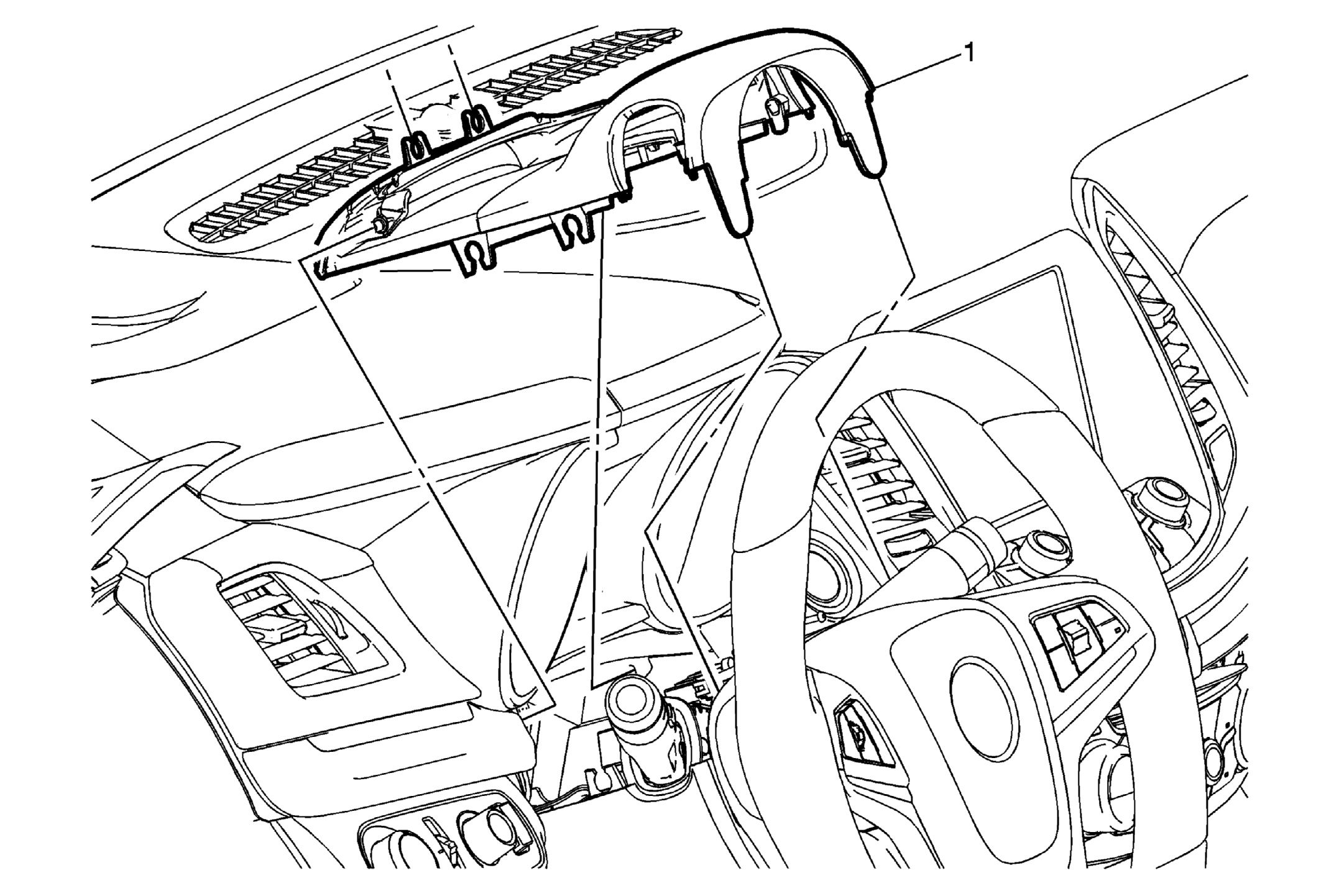

Fig 1: Steering Column Upper Trim Cover
Courtesy of GENERAL MOTORS COMPANY
Steering Column Upper Trim Cover Replacement
Callout
Component Name
1
Steering Column Upper Trim Cover
Procedures
Use a flat bladed plastic trim tool in order to release the tabs securing the upper trim cover to the lower trim cover.
Use a suitable tool to release the tabs securing the steering column opening closeout to the instrument panel assembly.
